| Input Voltage | nominal 15 V DC (12 - 18 V DC) |
| Input Current | 1.3 - 6.9 A (23 - 83 W) |
| Input Power | 83 W max. |
| Ambient Temperature | -20° to +35° C (-4° to +95° F) |
| Output Voltage | 19 - 42 V / max. 2.000 mA |
| Dimming | linear or exponential curve settings, deep smooth dimming from 0% to full power |
| Bicolor Mode | tunable white 2.700 - 6.600K, smooth continuous CCT change |
| DMX | XLR5 (DMX512-A) 8/16 Bit |
| Wireless (DTneo+) | LumenRadio CRMX and concurrent Bluetooth, full DMX/RDM support |
| Size | 67 x 92 x 175 mm (2.6“ x 3.6“ x 6.9“) |
| Weight | 565 g (20 oz) (DTneo+ 580 g (20.5 oz)) |
DT neo+

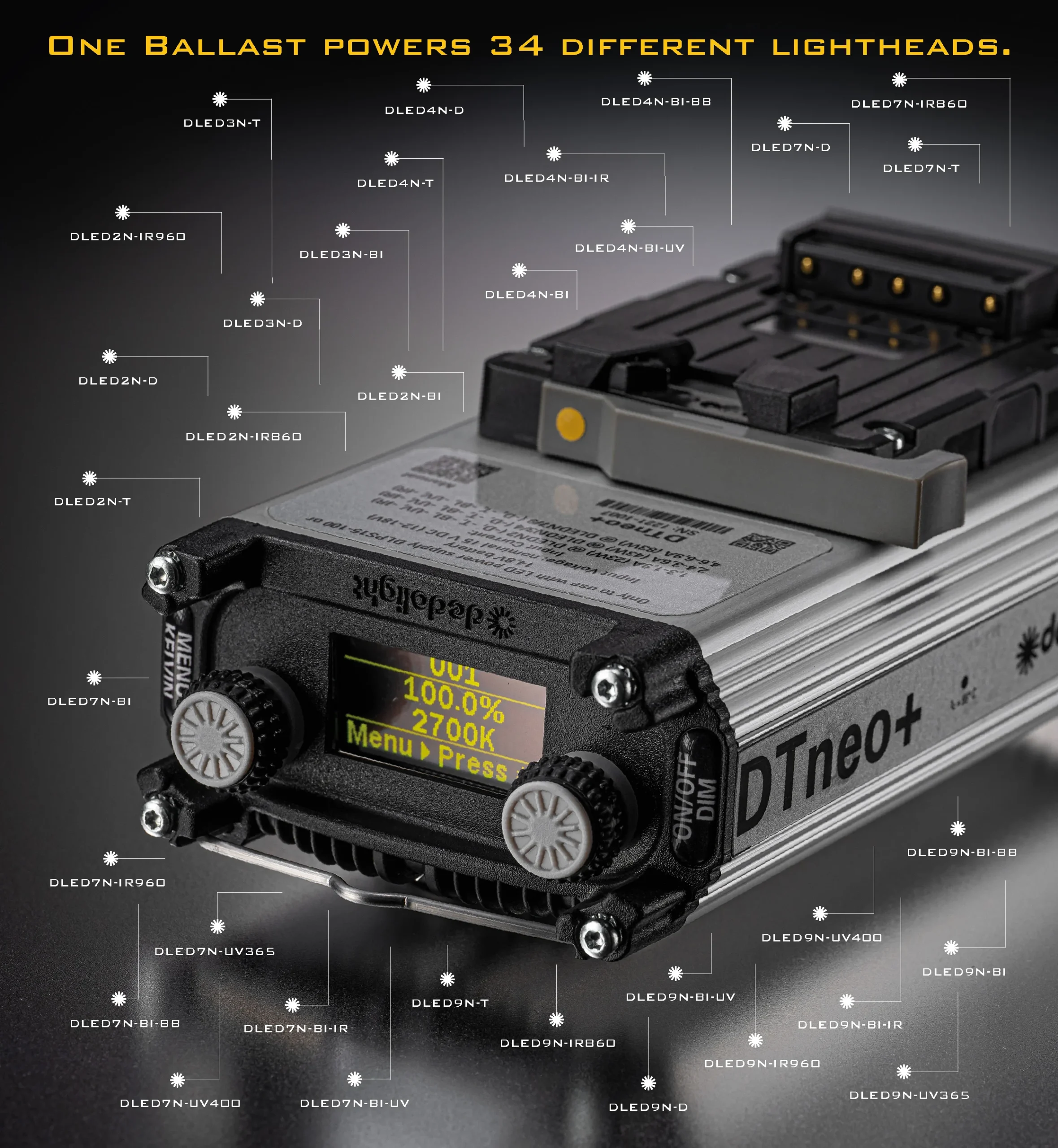

DTN dedolight neo LED ballast will drive all dedolight LED Systems from 20 to 90 Watt: Mono-color, Bi-Color, Infrared & Ultraviolet. It is based on a novel technical platform of advanced electronics and packed in a housing with a unified connector layout.
- DMX always on-board with all DTneo ballasts
- Perfectly deep smooth linear or exponential dimming (user-selectable), with 8-bit (16-
- bit) advanced control via DMX/RDM protocol. Manual or DMX dimming range from
- ZERO light to FULL power light
- Wireless control via LumenRadio CRMX and Bluetooth (DTneo+ model only)
- Flicker free by DNA, optional scientific high-speed flicker free mode (user-selectable)
- Simple, intuitive menu via an OLED display
- Very power efficient electronics
- Auto-sense the connected light head and automatically adjust the electronic settings
- and menu display
- Powered from Battery (V-Mount) or 15 V/100 W V-Mount AC/DC Power Supply
- Interchangeable attachments for DC battery (V-Mount) or AC operation
- Future-proof thanks to the Firmware upgradeability
- Mounting hardware slide into the rugged aluminium housing
