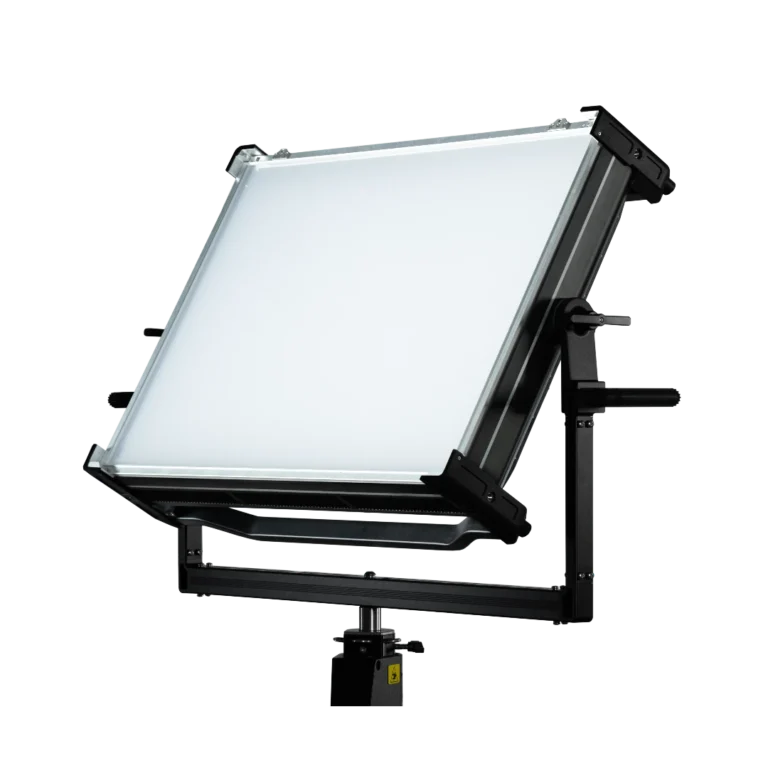

Vortex 24S
Triple the Power. Limitless Creative Control.
1950W
LNX Rigging
PSU Inside
IP65
Powerful Hard Light. Beautifully Soft.
The Creamsource Vortex24 Hard and Vortex24 Soft bring exceptional power and creative flexibility to professional cinematography. Featuring an advanced RRGBBW colour engine, both fixtures deliver outstanding brightness, colour consistency, and efficiency, with rugged IP65-rated construction and compatibility with standard house power.
The Vortex24 Hard delivers intense, directional lighting with the flexibility to create softer looks using diffusion. The Vortex24 Soft provides a large, beautifully even light source, spreading twice the output of the Hard across a wide 110° beam for immersive cinematic illumination.
Built for demanding film productions, both fixtures combine powerful performance, versatile lighting control, and Creamsource’s trusted five-year warranty.
Intelligent Control. Seamless Connectivity.
The Creamsource Vortex Series features an advanced CreamOS software architecture, delivering intuitive lighting control, industry-standard protocols, and versatile connectivity. With a redesigned user interface and streamlined workflows, it gives cinematographers precise, effortless control on set while supporting future software innovations.
Seamless Browser-Based Lighting Control
Take complete control of your Creamsource Vortex fixtures with the multilingual CreamOS V3.1 web interface. Easily discover, configure, and manage multiple lights directly from your browser, enabling quick adjustments, efficient troubleshooting, and streamlined lighting workflows on set.
Precision Colour. Consistent Performance.
The Creamsource Colour Management System (CCMS) delivers exceptional colour accuracy and consistency across Vortex and Micro LED fixtures. Combining precise factory calibration with advanced algorithms in CIE xy colour space, it ensures accurate colour reproduction at every dimming level while compensating for temperature changes.

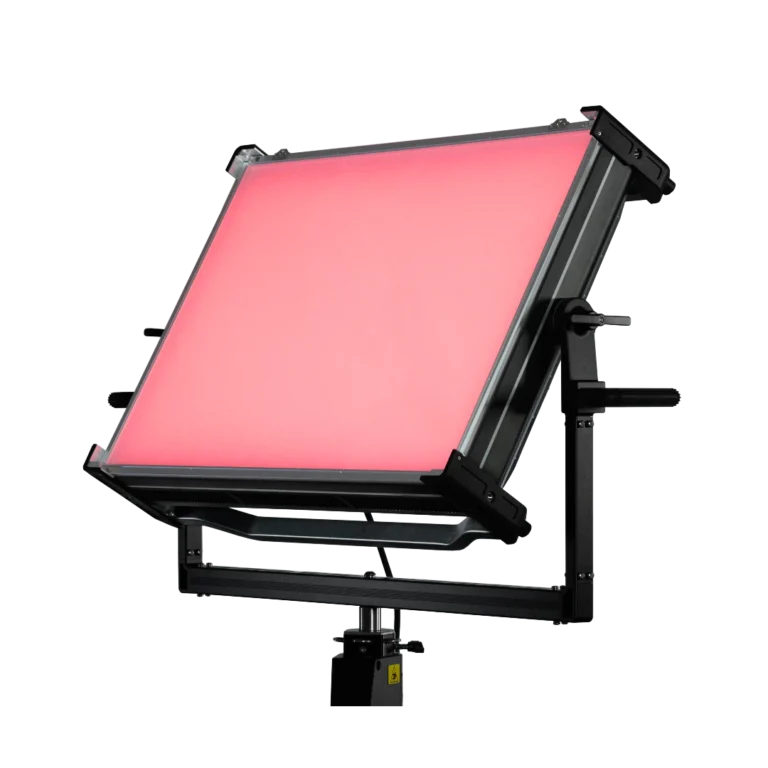

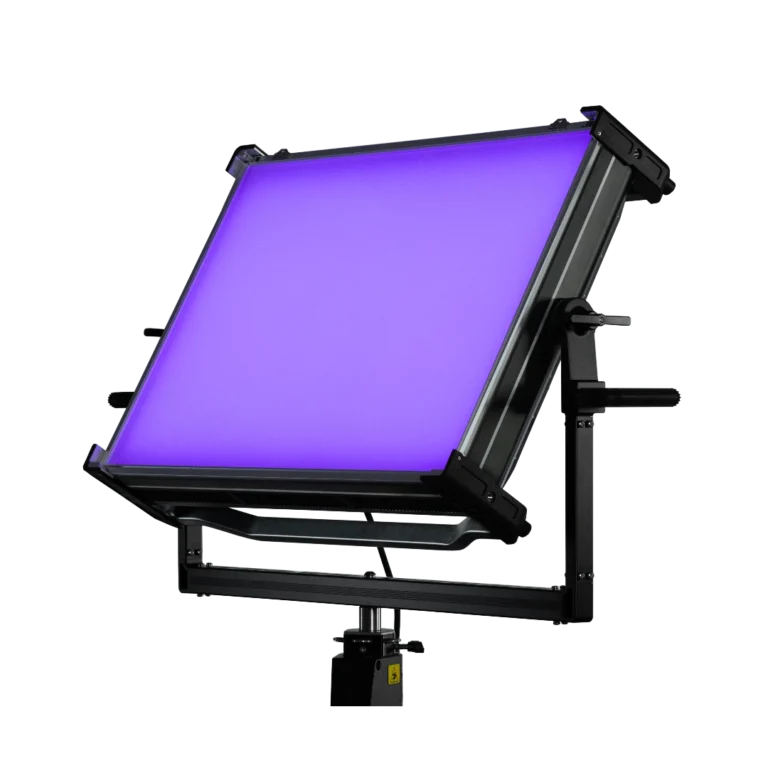

The advanced RRGBBW LED colour engine produces richer reds, warmer whites, deeper blues, and cleaner cool whites, giving cinematographers greater creative control and stunning, true-to-life cinematic lighting.
Vortex 24S Specifications
Head Weight
41.9kg / 92.4lb (Excluding yoke + yoke handles)
49.37kg / 108.8lb (Including yoke + yoke handles)
Dimensions
964 x 686 x 258 mm / 38.0 x 27 x 10.2 in. (Excluding yoke + yoke handles)
1331.8 x 971 x 258 mm / 52.5 x 38.2 x 10.2 in. (Including yoke + yoke handles)
Protection Class
IP65
Native Beam Angle
110°
Maximum Ambient Temperature
40°C / 104°F
Features

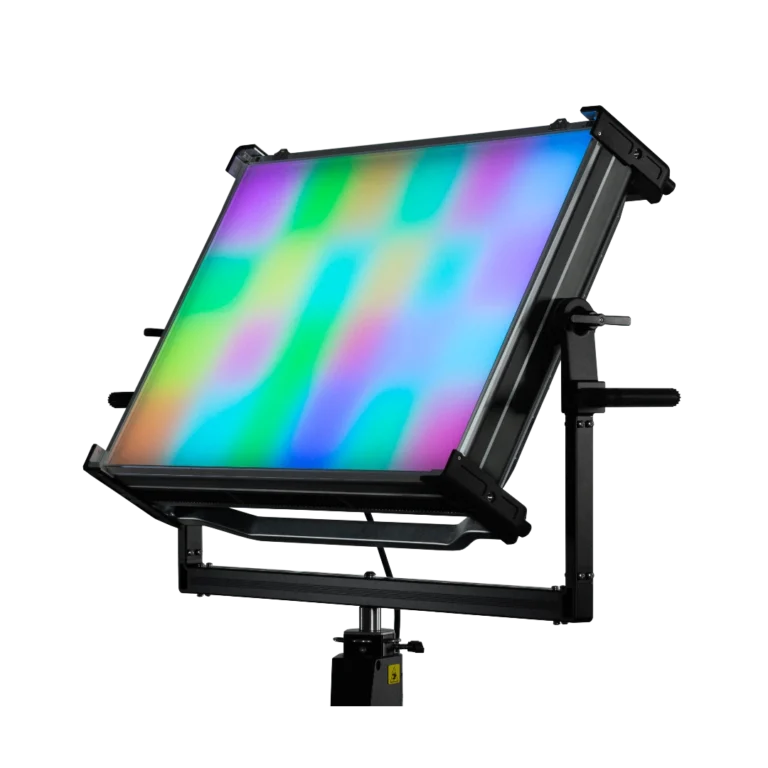

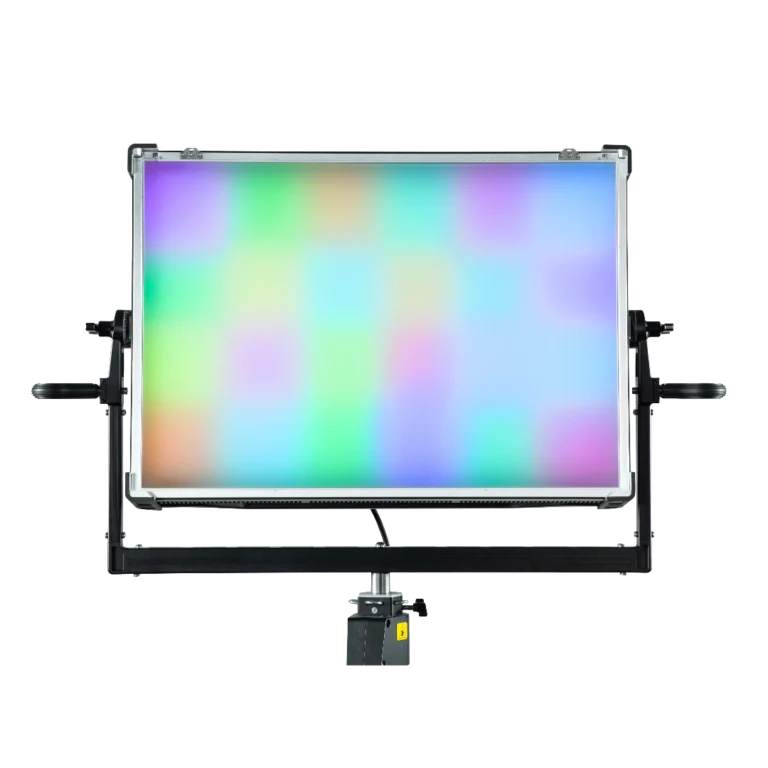

Offers 24 pixel zones for precise, dimmable lighting effects with consistent colour accuracy and no drift.
IP65 water resistant with a built-in power supply and all the advanced connectivity for professional use.
Dual front-mount rails for easy modifier adjustments, allowing attachment and removal from the front, ideal for high setups or LNX rigs.

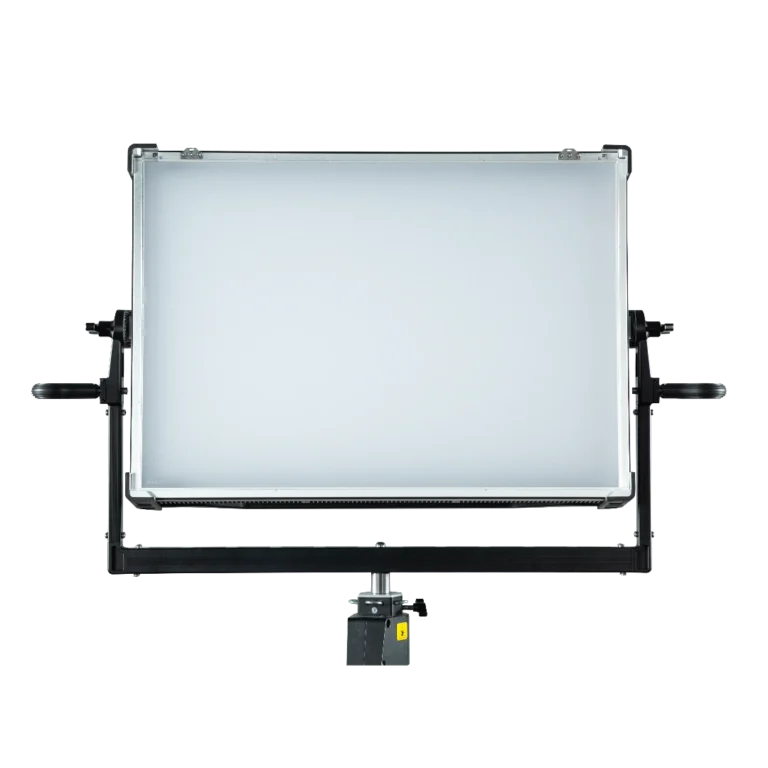

Front latch system for quick diffuser and accessory changes; Includes XWIDE lens.

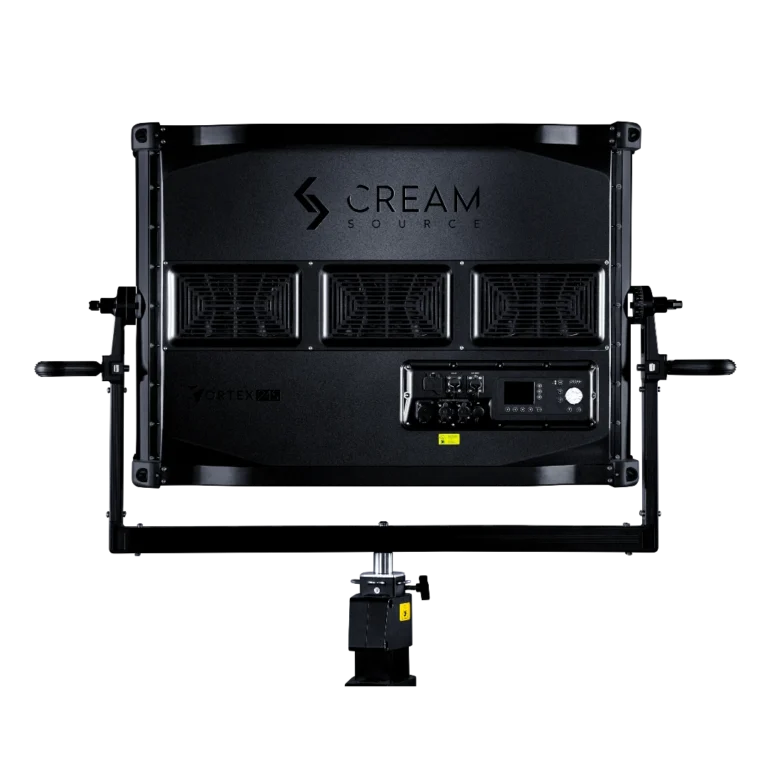

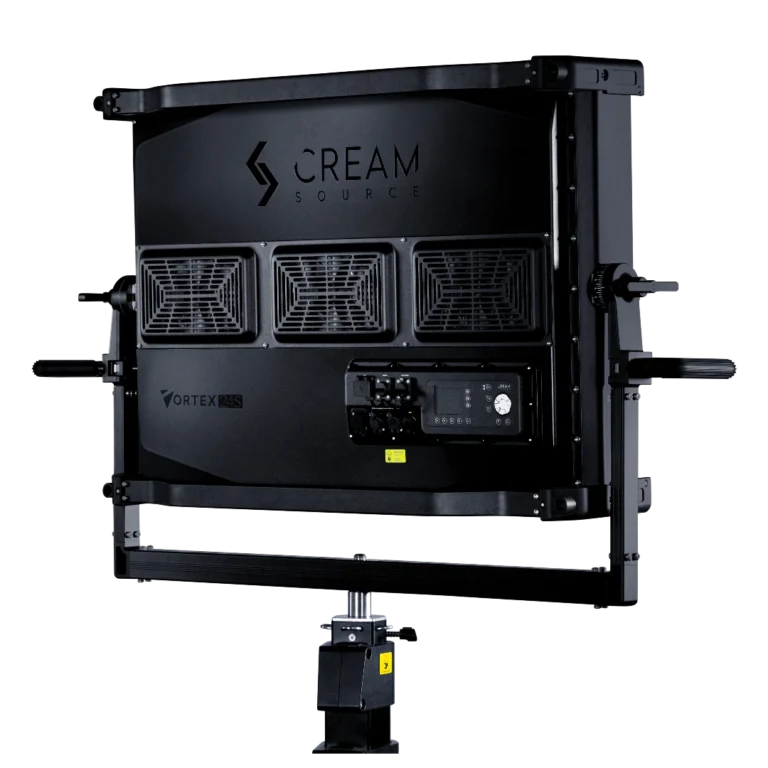

Dual etherCON ports with Gigabit switch for single-cable, daisy-chain setups.
Output
High-efficiency native soft light with 1950W of output and a ‘House Power’ setting for 15A circuits.
A 110° beam produces over 190,000lumens and 7,822lux @3m (3200K, Naked).
Creamsource Vortex24 Soft – Photometric Specifications
Colour Temperature: 3200K / 5600K
Light Output (Lux)
Distance | 3200K Naked | 3200K X-Wide | 5600K Naked | 5600K X-Wide |
|---|---|---|---|---|
1m | 70,395 | 54,912 | 66,659 | 52,386 |
2m | 17,599 | 13,728 | 16,665 | 13,097 |
3m | 7,822 | 6,101 | 7,407 | 5,821 |
4m | 4,400 | 3,432 | 4,166 | 3,274 |
5m | 2,816 | 2,196 | 2,666 | 2,095 |
6m | 1,955 | 1,525 | 1,852 | 1,455 |
Light Output (Foot-Candles / FC)
Distance | 3200K Naked | 3200K X-Wide | 5600K Naked | 5600K X-Wide |
|---|---|---|---|---|
3.3ft | 6,539.9 | 5,101.5 | 6,192.8 | 4,866.8 |
6.6ft | 1,635.0 | 1,275.4 | 1,548.2 | 1,216.8 |
9.8ft | 726.7 | 566.8 | 688.1 | 540.8 |
13.1ft | 408.8 | 318.8 | 387.0 | 304.2 |
16.4ft | 261.6 | 204.0 | 247.7 | 194.6 |
19.7ft | 181.6 | 141.7 | 172.1 | 135.2 |
