Vortex 4S
Compact Power. Limitless Cinematic Possibilities.
325W
LNX Rigging
PSU Inside
IP65
Bold Contrast. Beautiful Softness.

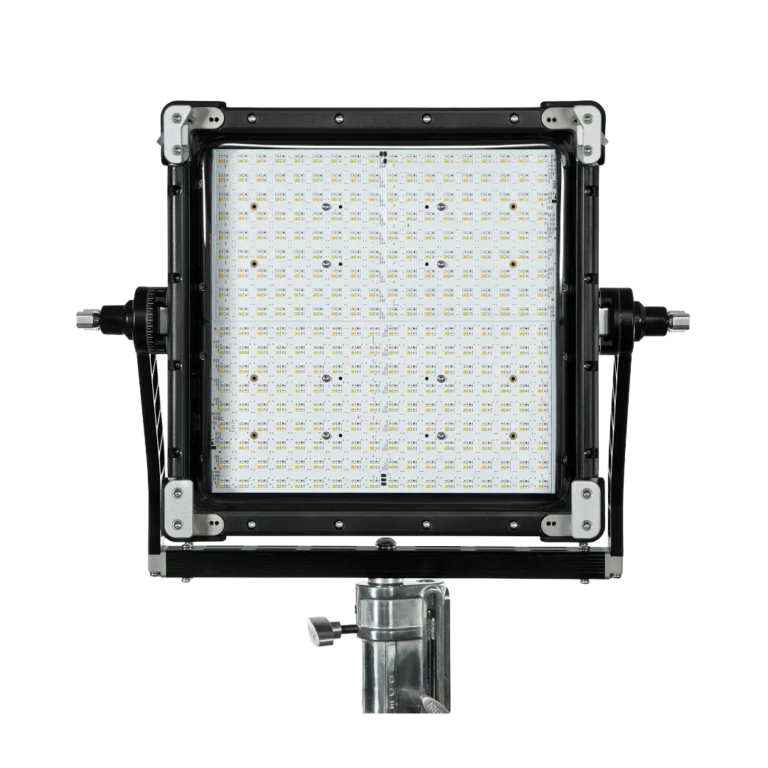

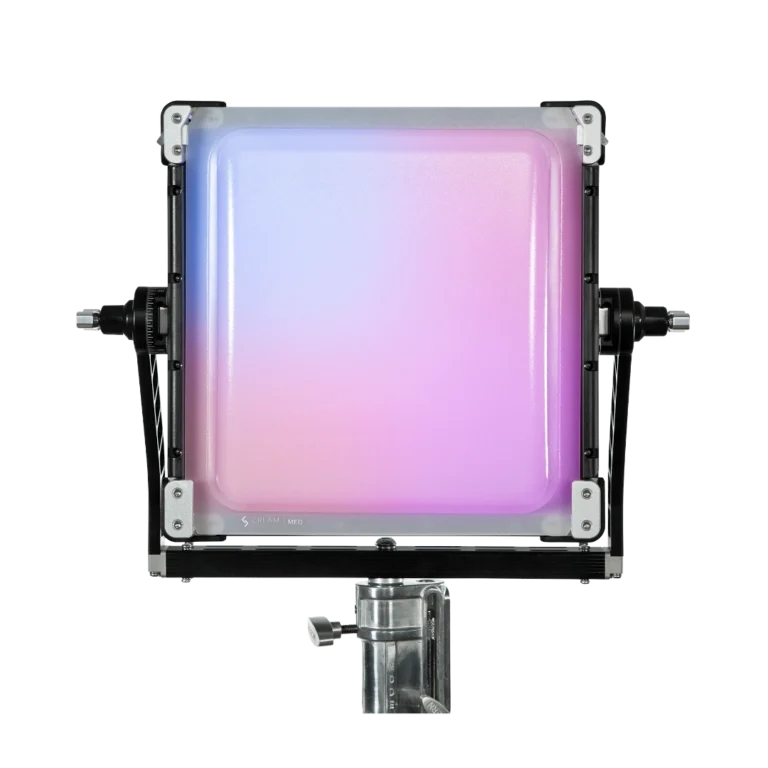

The Creamsource Vortex4 and Vortex4 Soft bring powerful, versatile LED lighting to professional cinematography. Featuring advanced 1×1 RRGBBW colour technology, the Vortex4 delivers exceptional colour accuracy, a wide 2200K–15000K CCT range, and four independently controllable pixel zones for dynamic lighting effects.
The Vortex4 produces intense, directional hard light, perfect for dramatic shadows, striking highlights, and precise illumination through diffusion or bounce. The Vortex4 Soft creates beautifully even, full-spectrum illumination with a wide 110° beam angle, ideal for natural skin tones, atmospheric scenes, and cinematic softness.

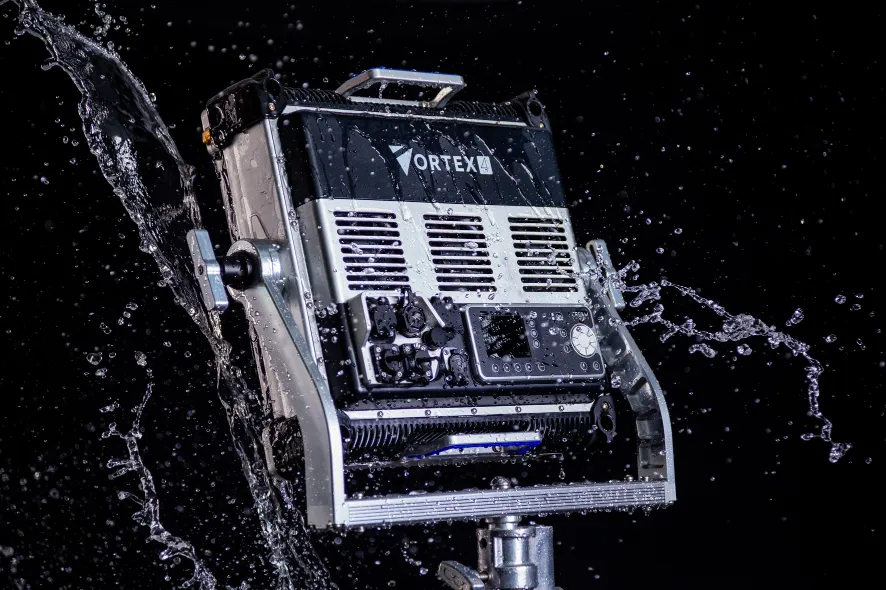

Built for demanding film productions, both fixtures feature rugged IP65-rated weather protection, ensuring reliable performance in rain, snow, and dusty environments. Together, they offer the creative flexibility, colour consistency, and efficiency needed for everything from intimate scenes to large-scale lighting setups.
Command the Light.
The Creamsource Vortex Series features advanced CreamOS software, combining intuitive lighting control, industry-standard protocols, and seamless connectivity. Its redesigned interface simplifies on-set adjustments, giving cinematographers greater precision and creative freedom.
With multilingual support in nine languages, including English, Chinese (Simplified), French, German, Japanese, Korean, Italian, Spanish, and Portuguese, CreamOS delivers an effortless lighting experience for production crews worldwide.
Seamless Browser-Based Lighting Control
Take complete control of your Creamsource Vortex fixtures with the multilingual CreamOS V3.1 web interface. Easily discover, configure, and manage multiple lights directly from your browser, enabling quick adjustments, efficient troubleshooting, and streamlined lighting workflows on set.
Precision Colour. Consistent Performance.
The Creamsource Colour Management System (CCMS) delivers exceptional colour accuracy and consistency across Vortex and Micro LED fixtures. Combining precise factory calibration with advanced algorithms in CIE xy colour space, it ensures accurate colour reproduction at every dimming level while compensating for temperature changes.
The advanced RRGBBW LED colour engine produces richer reds, warmer whites, deeper blues, and cleaner cool whites, giving cinematographers greater creative control and stunning, true-to-life cinematic lighting.
Vortex 4S Specifications
Head Weight
8.9kg / 19.6lb (Excluding yoke)
10.7kg / 23.6lb (Including yoke)
Dimensions
380 x 380 x 121 mm / 15 x 15 x 4.8 in. (Excluding Yoke)
525 x 570 x 179.25 mm / 20.7 x 22.4 x 7.1 in. (Including Yoke)
Protection Class
IP65
Open Face Beam Angle
110°
Maximum Ambient Temperature
40°C / 104°F
Features
A premium high powered 1×1 LED fixture designed for heavy use in all conditions.
IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
Optimised for a range of applications with RRGBBW, a wide CCT range and high speed modes for shooting up to 5000fps.
Sync Input for Triggering and Syncing to Camera Shutter.
Output
A 110° beam produces 29,100lumens and 1,180lux @ 3m (5600K, Open Face).
High-efficiency native soft light with 325W of output.
Creamsource Vortex4 Soft – Photometric Specifications
Colour Temperatures: 3200K / 5600K

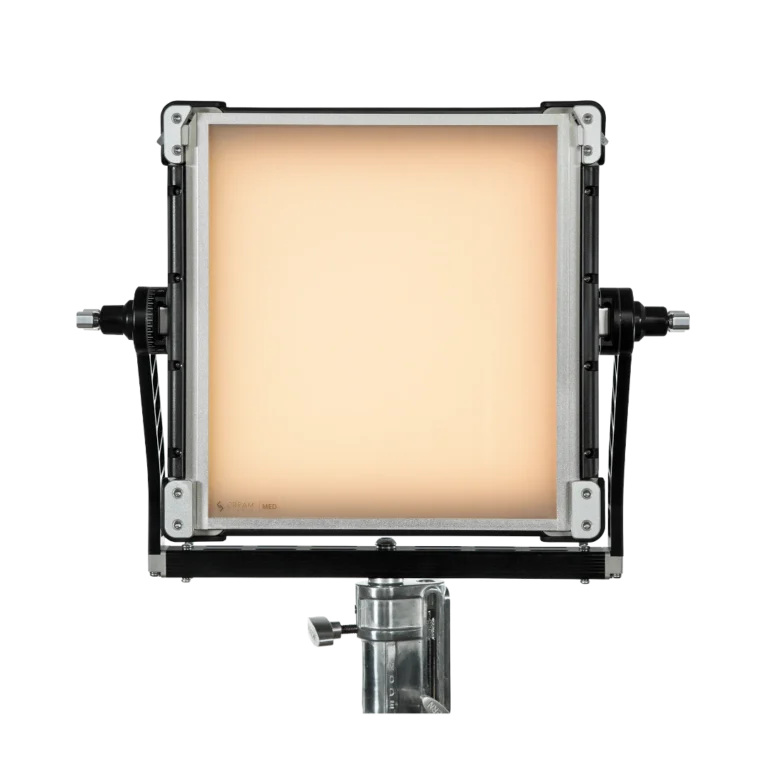

3200K – Tungsten
Light Output (Lux)

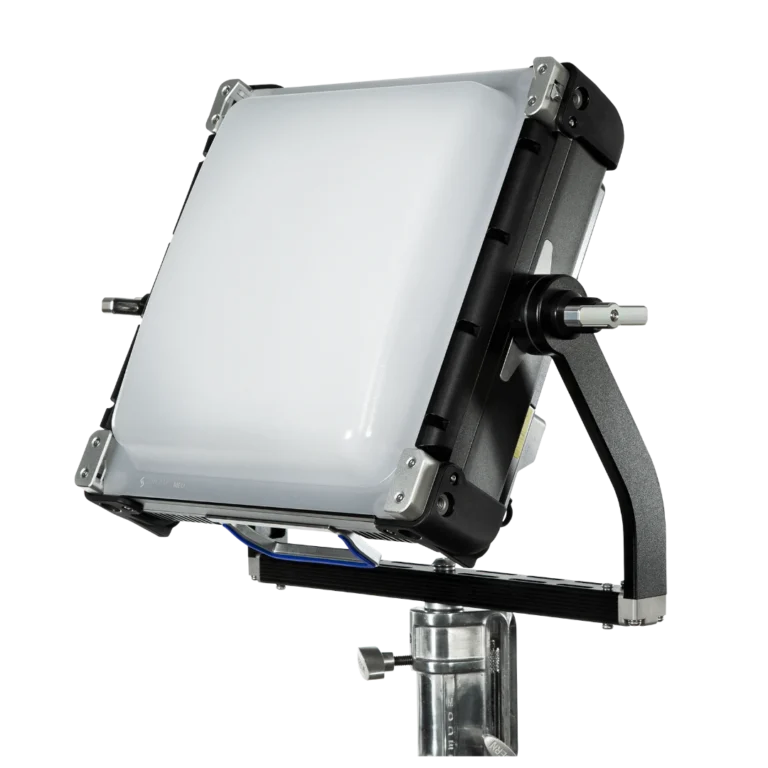

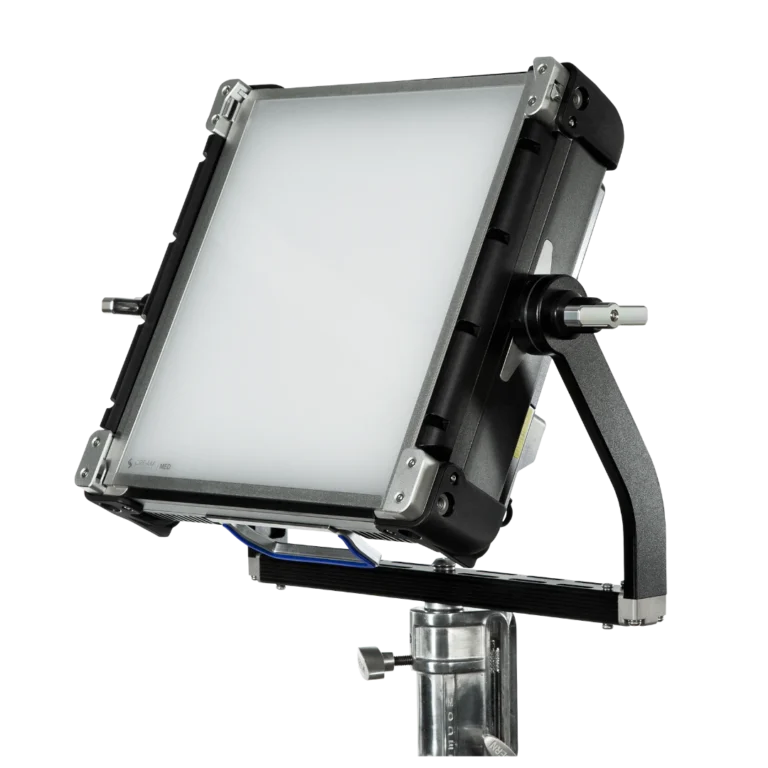

Distance | Open Face | Intensifier | Diffuser | Dome |
|---|---|---|---|---|
1m | 9,960 | 10,100 | 7,800 | 6,800 |
2m | 2,630 | 2,705 | 2,040 | 1,765 |
3m | 1,210 | 1,250 | 940 | 815 |
4m | 720 | 730 | 550 | 475 |
5m | 460 | 480 | 365 | 315 |
6m | 330 | 345 | 260 | 225 |
10m | 140 | 140 | 110 | 90 |
Light Output (Foot-Candles / FC)
Distance | Open Face | Intensifier | Diffuser | Dome |
|---|---|---|---|---|
3.3ft | 925 | 938 | 725 | 632 |
6.6ft | 244 | 251 | 190 | 164 |
9.8ft | 112 | 116 | 87 | 76 |
13.1ft | 67 | 68 | 51 | 44 |
16.4ft | 43 | 45 | 34 | 29 |
19.7ft | 31 | 32 | 24 | 21 |
32.8ft | 13 | 13 | 10 | 8 |
5600K – Daylight
Light Output (Lux)
Distance | Open Face | Intensifier | Diffuser | Dome |
|---|---|---|---|---|
1m | 9,770 | 9,900 | 7,700 | 6,700 |
2m | 2,560 | 2,635 | 1,990 | 1,720 |
3m | 1,180 | 1,220 | 915 | 795 |
4m | 700 | 710 | 535 | 465 |
5m | 450 | 470 | 355 | 305 |
6m | 320 | 335 | 255 | 220 |
10m | 140 | 135 | 105 | 90 |
Light Output (Foot-Candles / FC)
Distance | Open Face | Intensifier | Diffuser | Dome |
|---|---|---|---|---|
3.3ft | 908 | 920 | 715 | 622 |
6.6ft | 238 | 245 | 185 | 160 |
9.8ft | 110 | 113 | 85 | 74 |
13.1ft | 65 | 66 | 50 | 43 |
16.4ft | 42 | 44 | 33 | 28 |
19.7ft | 30 | 31 | 24 | 20 |
32.8ft | 13 | 13 | 10 | 8 |
