DPB-70
The Ultimate Parallel Beam Lighting Solution

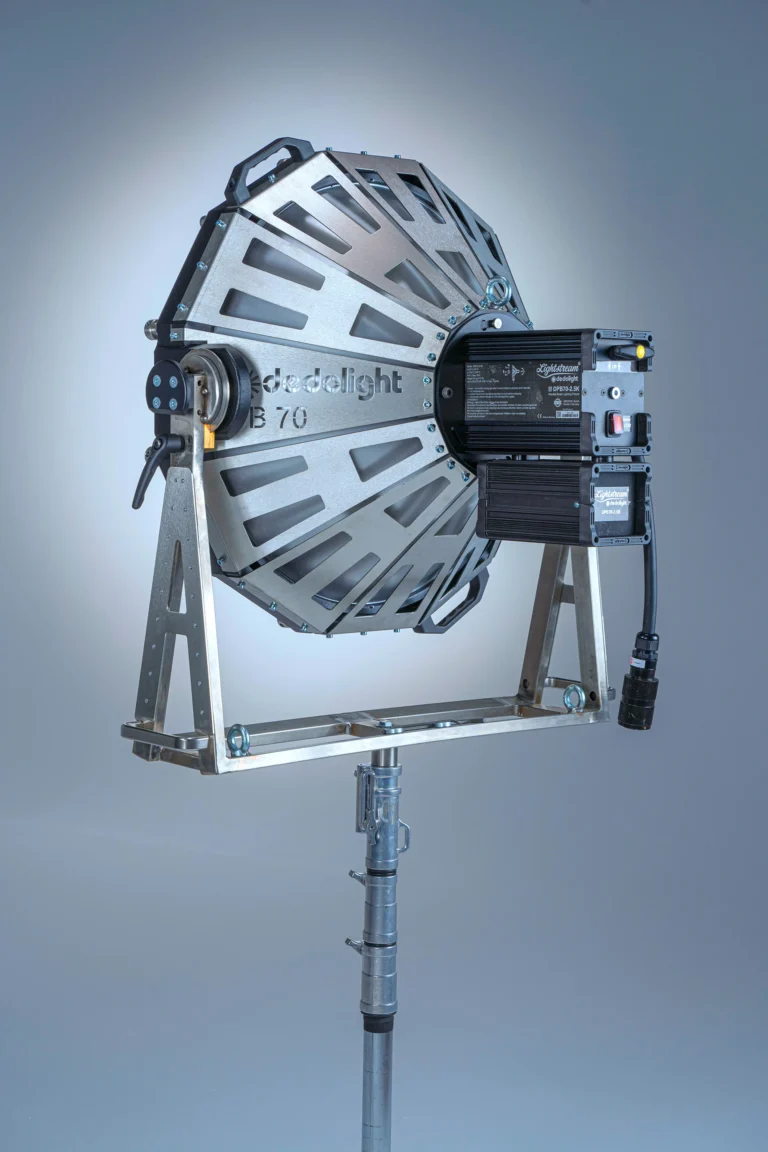

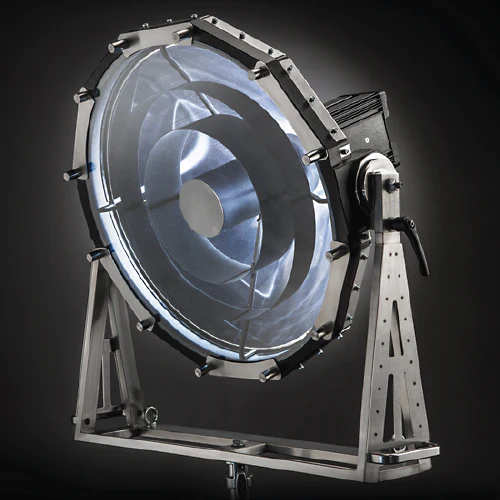

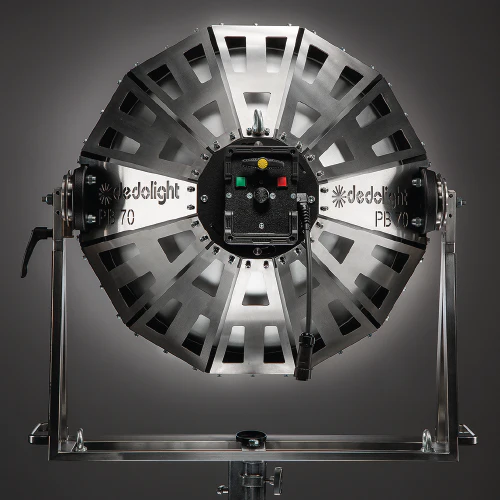

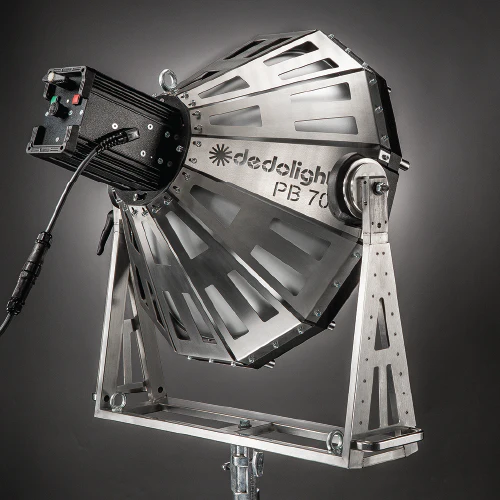

The Dedolight PB70 (DPB70) — a next-generation parallel beam HMI light designed for cinematographers, filmmakers, and lighting professionals who demand unmatched precision, efficiency, and creative control.
Why Choose the PB70?
Exceptional Light Control
Delivers crisp shadows, tight beams, and natural light behavior.
Superior Efficiency
Provides powerful illumination from a 1200 W source with minimal intensity loss over distance.
Creative Flexibility
Enables innovative light shaping when paired with reflector systems.
Durability & Reliability
Engineered for professional production environments, both indoor and outdoor.
Key Features & Benefits
True Parallel 2° Beam: Produces a perfectly defined 2-degree parallel beam with a 70 cm front diameter, allowing precise light shaping and direction.
Homogeneous Light, Minimal Falloff: Unlike conventional lights that lose intensity rapidly with distance, the PB70 maintains a gentler falloff—only about 50% loss when doubling the distance—providing consistent illumination across the scene.
High Output Efficiency: At 4.5 m (15 ft), it delivers over 110,000 lux within a flat, even circle, offering exceptional brightness and beam uniformity.
Hot-Re-strike & Dimming: Compatible with the DEB1200D ballast for smooth dimming from 100% to 60% without flicker, along with DMX control for seamless integration.
All-Position Use & Rainproof Design: IP63-rated for use in mild rain and can be operated in any orientation without overheating or performance loss.
Seamless Integration with Reflectors: Designed to work with Dedolight’s Lightstream and Eflect reflector systems, enabling users to create “virtual light sources” that mimic natural sunlight or ambient illumination with remarkable realism.

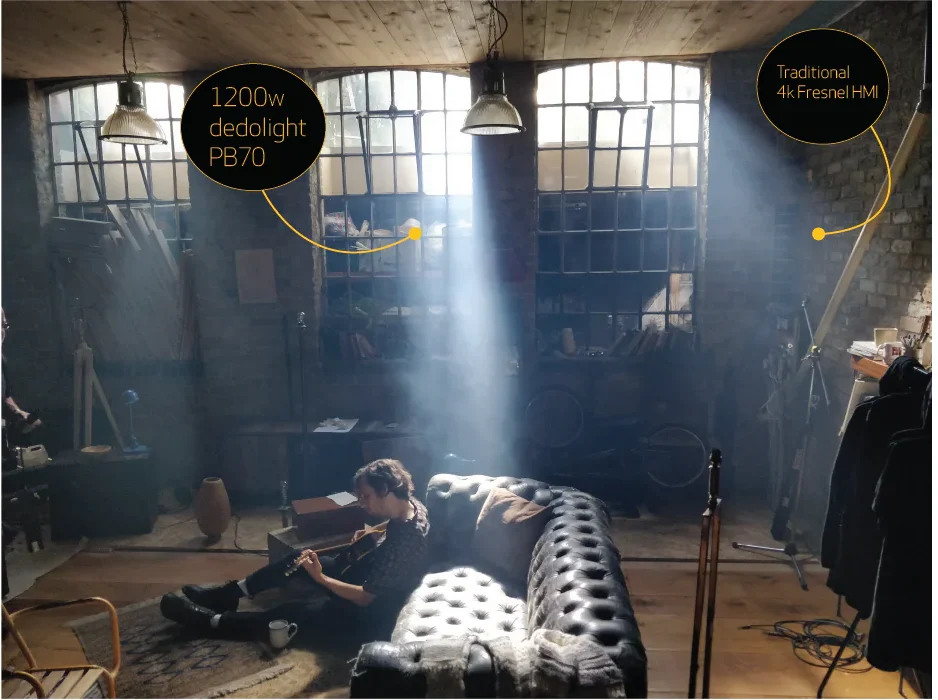

Spot the Difference
DPB70 - 1.2kW
Technical Specifications
| Parameter | Value |
|---|---|
| Light Source / Power | 1200 W HMI (G22) lamp specially designed for the PB70 |
| Beam Angle | Approx. 2° parallel beam |
| Color Temperature | 5600 K daylight balanced |
| Dimensions | 92 × 100 × 62 cm |
| Weight | 49.8 kg (109.8 lb) |
| Dimming Range | 100 % → 60 % (via DEB1200D ballast) |
| Protection Rating | IP63, suitable for light rain and outdoor use |

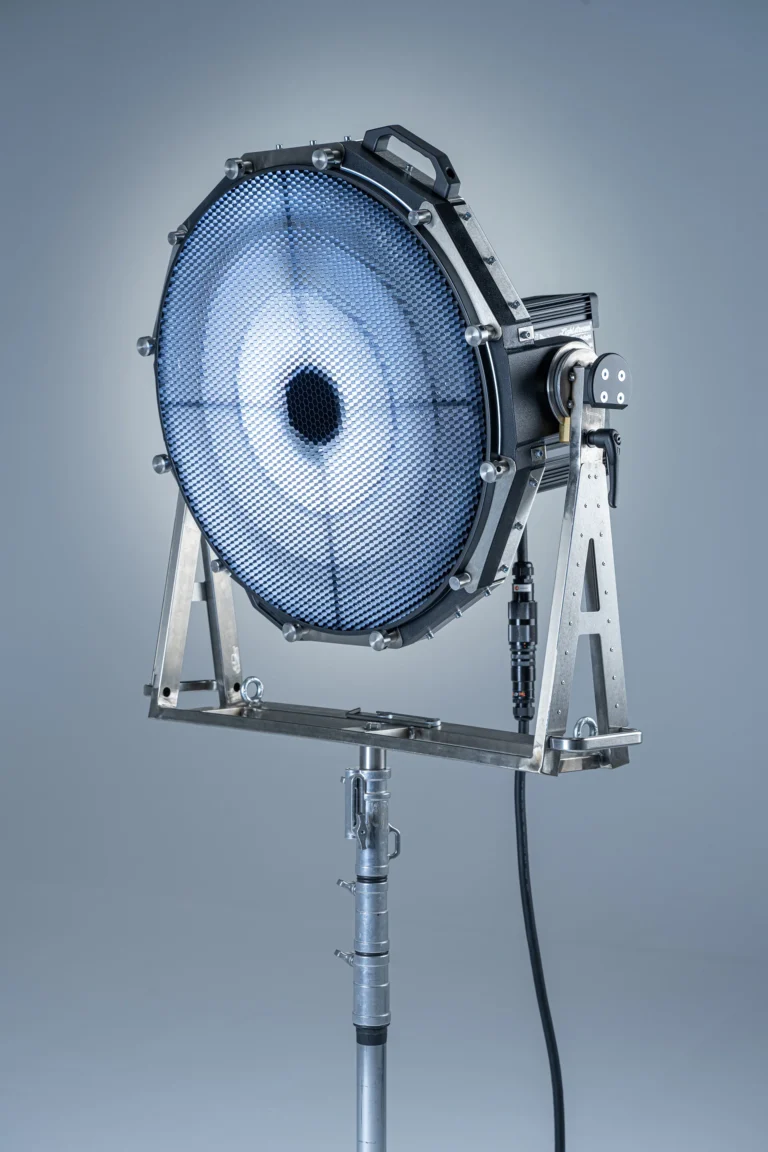

DPB70 - 2.5kW
Technical Specifications
| Parameter | Specification |
|---|---|
| Light Source | Special design, 2500 W HR metal halide lamp with G38 socket, H-Type, frosted |
| Power Consumption | 2500 W |
| Ambient Temperature | 35 °C (95 °F) |
| Protection Class | IP63 |
| Operational Position | Any |
| Use | Indoor / Outdoor |
| Overall Dimensions (W × H × D) | 92 × 100 × 62 cm |
| Weight | 53 kg (117 lb) |
