Dyno Series
Engineered for outstanding performance, the all-new NANLUX Dyno Series 650C and 1200C RGBWW LED softlights deliver the perfect balance of power, precision, and control.
Offering a powerful yet beautifully soft output with an ultra-wide beam angle, the compact Dyno 650C and the high-output Dyno 1200C stand among the brightest LED softlights in their class.
Designed specifically for film, television, broadcast, and media production, these latest additions to the NANLUX professional lineup give you total creative control and exceptional consistency in high-quality lighting.
WIDE CCT · PRECISE CONTROL
The Dyno Series offers an impressive correlated color temperature range from 2700K to 20000K, giving you exceptional flexibility across warm and cool tones. With fine green/magenta adjustment for precise Duv control, it ensures accurate color reproduction, enabling seamless matching with practical lights and other sources on set.
ON-BOARD EFFECTS
Select from 15 built-in practical lighting effects, each fully customizable to suit your creative needs. Easily save and replay your favorite settings with the handy save-and-playback feature.
Technical Specifications

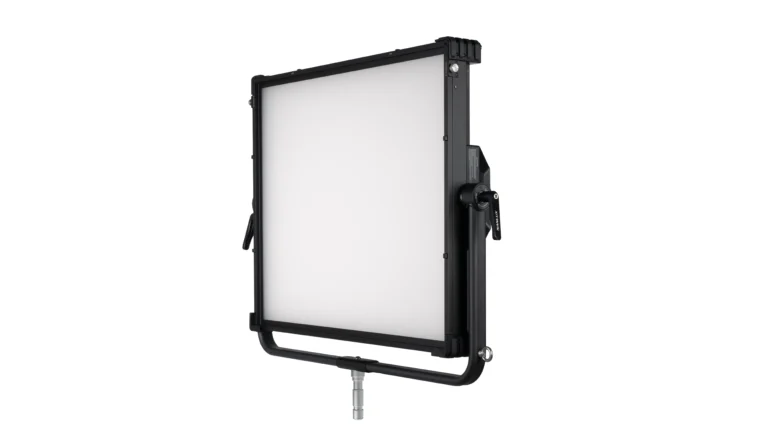

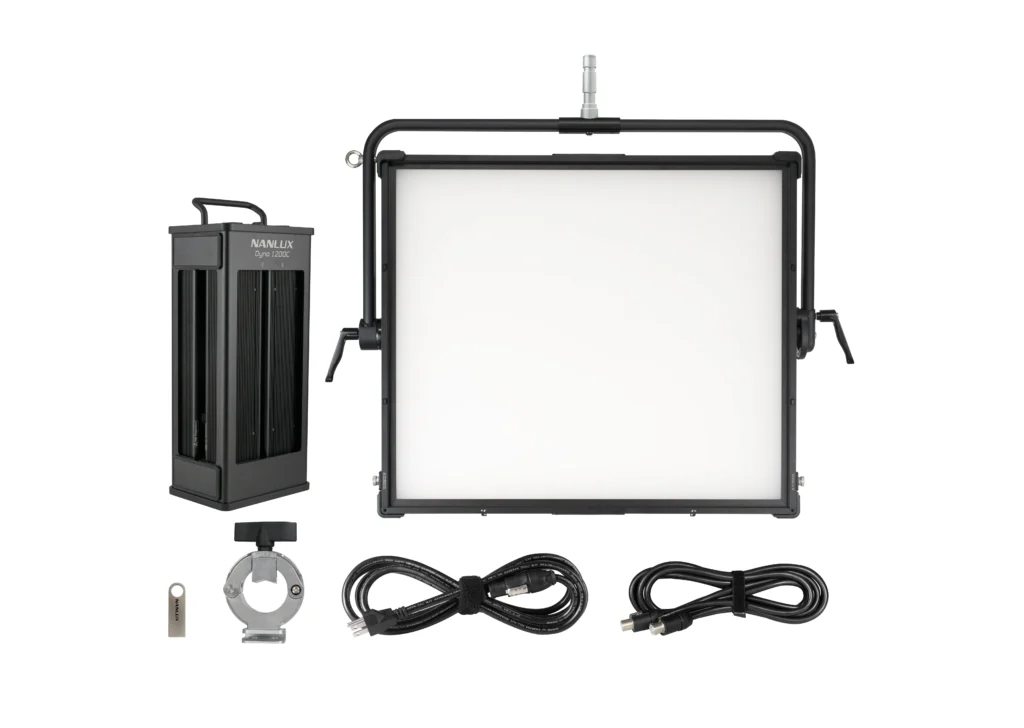

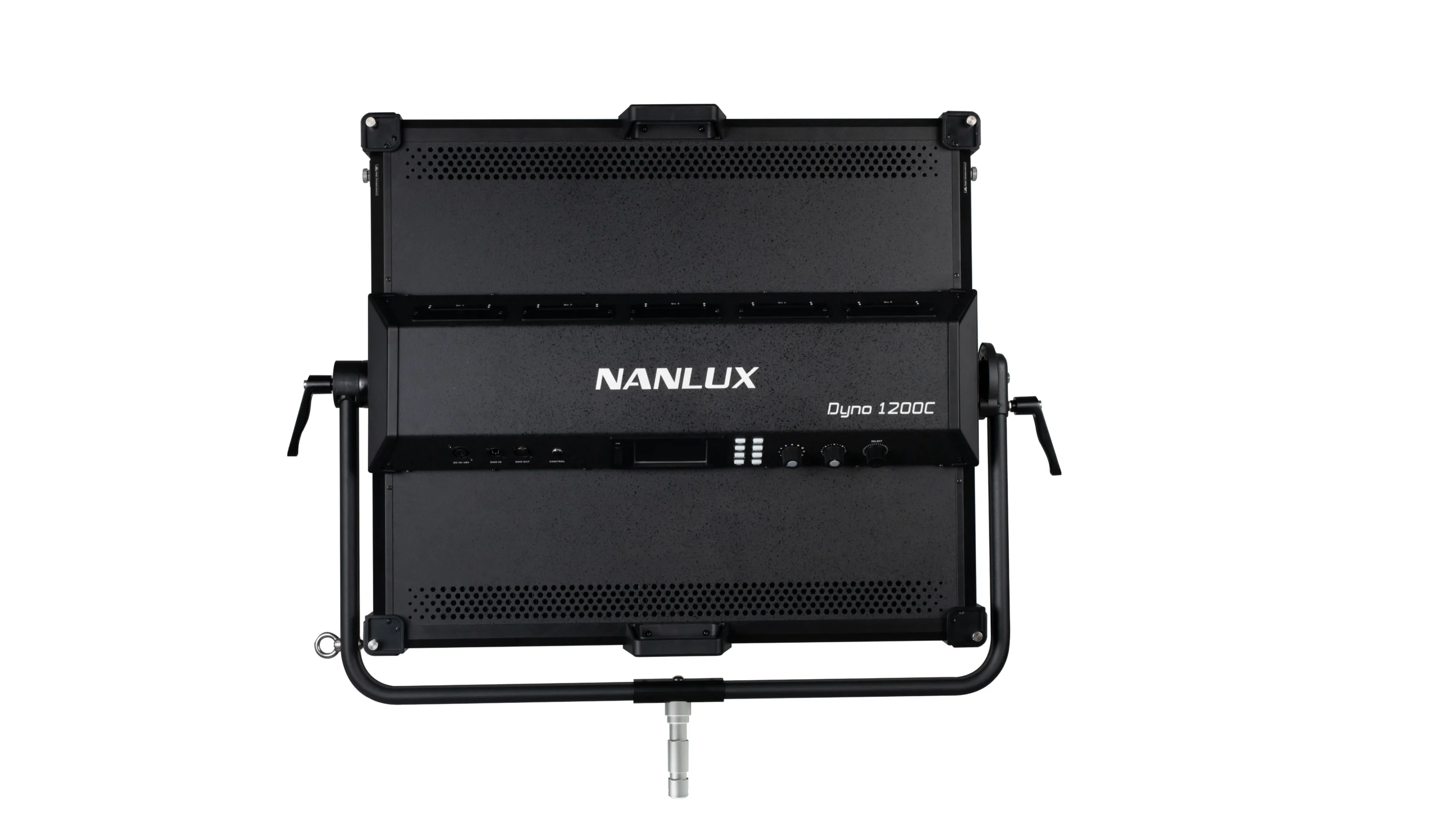

Model: DYNO 1200C
Power Consumption: Nominal 1200W, Max 1400W
LED Total Power: 1392W × 5
Power Supply: DC 48V / 29.2A Max, AC 100-240V 50/60Hz
CRI: Average 95
TLCI: Average 95
CCT: 2700K – 20000K (G/M)
Dimming: 0–100% stepless, adjustable in 0.1% increments from 1% to 100%
Control Options: On-board control, 2.4G Bluetooth, DMX (5-pin), RDM, LumenRadio
On-board Effects: Hue Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding
Product Size: 1023 × 173 × 918 mm / 40.28 × 6.81 × 36.14″
Product Weight: 26.2 kg / 57.8 lb (fixture only)
Accessories
Photometric Data – Dyno 1200C
| Light Modifier | CCT | Distance (3m / 9.8ft) | Distance (5m / 16.4ft) | Distance (7m / 22.9ft) |
|---|---|---|---|---|
| CCT Boost Mode | 3200K | 5083 lux / 472 fc | 2077 lux / 193 fc | 1145 lux / 106 fc |
| 5600K | 5596 lux / 520 fc | 2282 lux / 212 fc | 1247 lux / 116 fc | |
| CCT Standard Mode | 3200K | 4403 lux / 409 fc | 1804 lux / 168 fc | 975 lux / 91 fc |
| 5600K | 4718 lux / 438 fc | 1934 lux / 180 fc | 1048 lux / 97 fc |
Technical Specifications

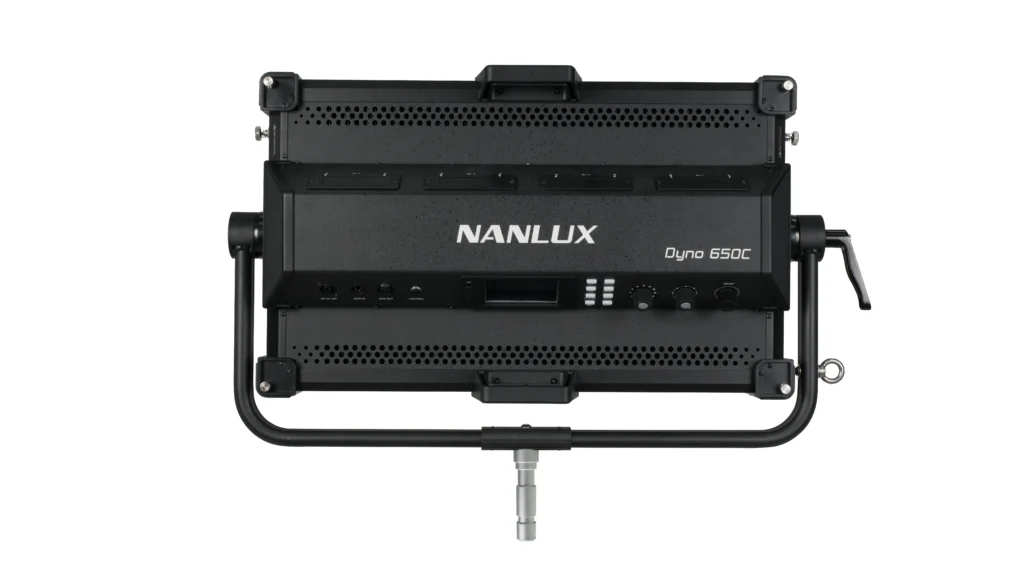

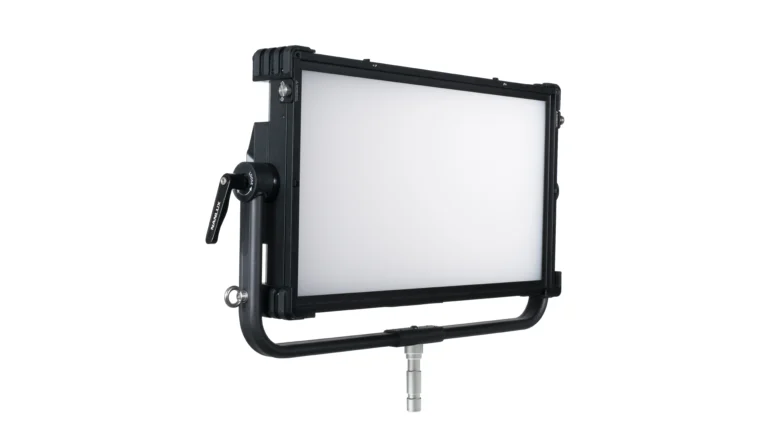

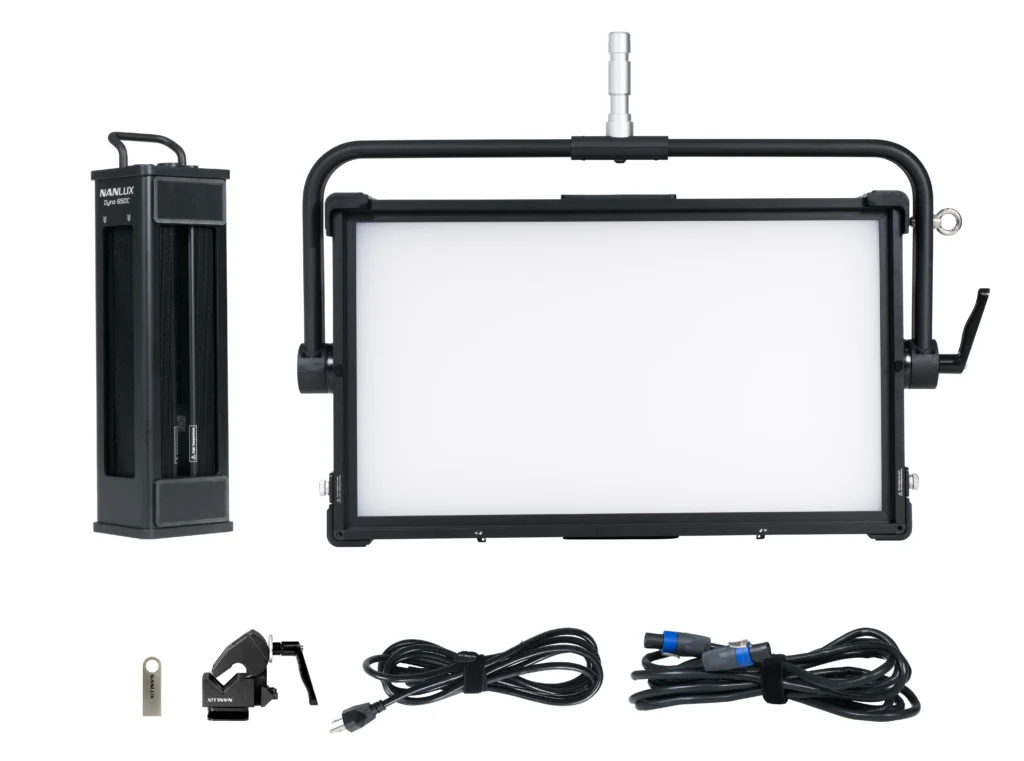

Model: DYNO 650C
Power Consumption: Nominal 650W, Max 700W
LED Total Power: 672W × 5
Power Supply: DC 48V / 29.2A Max, AC 100-240V 50/60Hz
CRI: Average 95
TLCI: Average 95
CCT: 2700K – 20000K (G/M)
Dimming: 0–100% stepless, adjustable in 0.1% increments from 1% to 100%
Control Options: On-board control, 2.4G Bluetooth, DMX (5-pin), RDM, LumenRadio
On-board Effects: Hue Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding
Product Size: 857 × 173 × 630 mm / 33.74 × 6.81 × 24.80″
Product Weight: 15.8 kg / 34.8 lb (fixture only)
Accessories
Photometric Data – Dyno 650C
| Light Modifier | CCT | Distance (3m / 9.8ft) | Distance (5m / 16.4ft) | Distance (7m / 22.9ft) |
|---|---|---|---|---|
| CCT Boost Mode | 3200K | 2403 lux / 223 fc | 979 lux / 91 fc | 546 lux / 51 fc |
| 5600K | 2649 lux / 246 fc | 1082 lux / 101 fc | 601 lux / 56 fc | |
| CCT Standard Mode | 3200K | 2080 lux / 193 fc | 850 lux / 79 fc | 474 lux / 44 fc |
| 5600K | 2237 lux / 208 fc | 919 lux / 85 fc | 512 lux / 48 fc |
