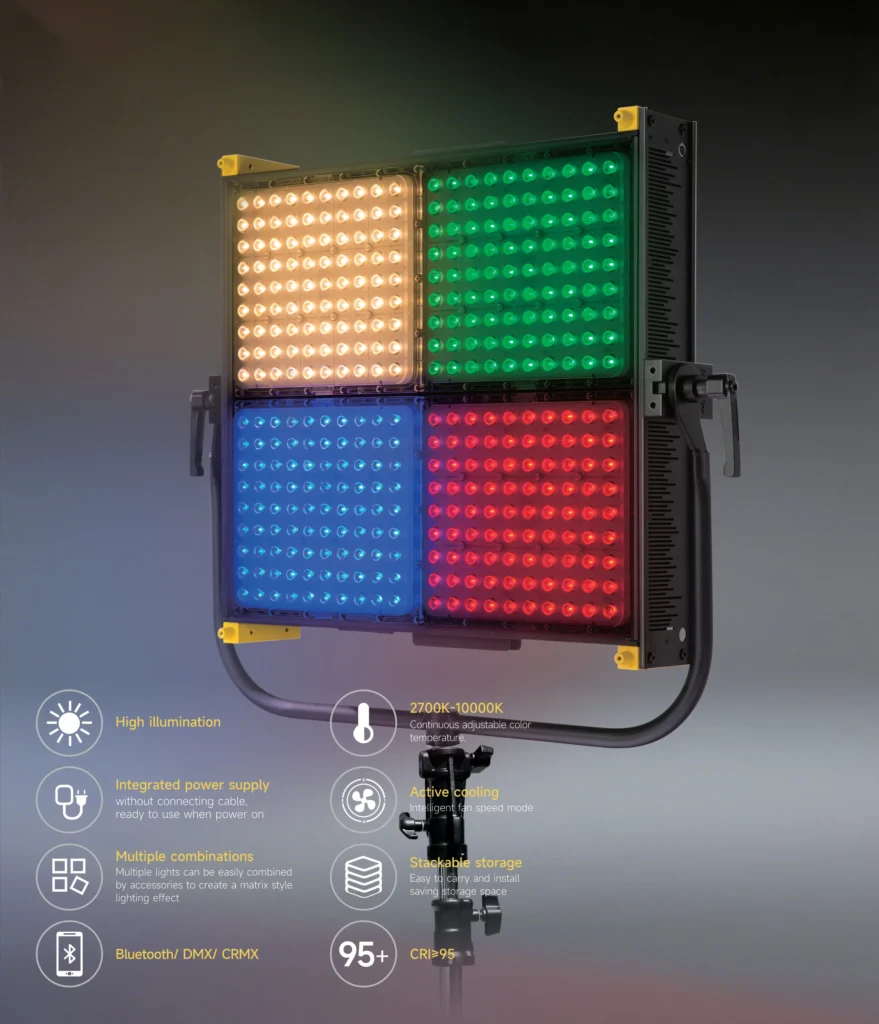

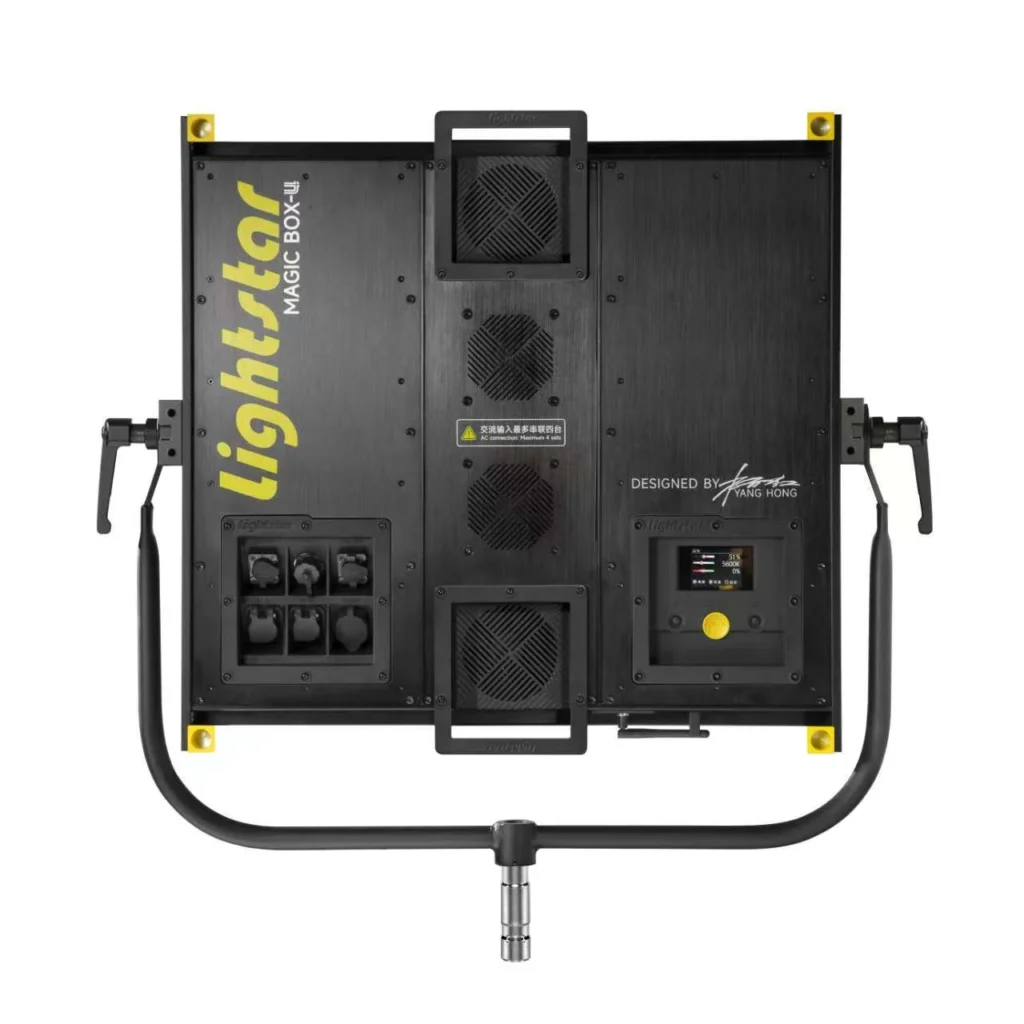

MAGIC BOX
MAGIC BOX-4S
Power: 1200W
Input: 100-240VAC 50/60Hz
IP Class: IP65
Color Temperature: 2700K-10000K
Color Rendition: CRI ≥ 95
Control: DMX/ CRMX/ BLUETOOTH
Dimensions & Weight
Dimensions (Without Yoke): 681 x 620 x 119 (mm)
Lamphead Weight: 23kg
Yoke Dimensions: 780 x 528 x 55 (mm)
Yoke Weight: 3kg
Photometric Magic Box-4S
| Distance | 3200K (Lux) | 5600K (Lux) | Beam Diameter |
| 3m | 33200 | 34722 | 3.06m |
| 5m | 12000 | 12500 | 4.95m |
| 7m | 6122 | 6378 | 6.73m |
| 9m | 3703 | 3858 | 8.51m |
MAGIC BOX-4
Power: 900W
Input: 100-240VAC 50/60Hz
IP Class: IP65
Color Temperature: 2700K-10000K
Color Rendition: CRI ≥ 95
Control: DMX/ CRMX/ BLUETOOTH
Dimensions & Weight
Dimensions (Without Yoke): 681 x 620 x 119 (mm)
Lamphead Weight: 19.6kg
Yoke Dimensions: 780 x 528 x 55 (mm)
Yoke Weight: 2.3kg
Photometric Magic Box-4
| Distance | 3200K (Lux) | 5600K (Lux) | Beam Diameter |
| 3m | 25532 | 27911 | 3.06m |
| 5m | 9192 | 10048 | 4.95m |
| 7m | 4690 | 5126 | 6.73m |
| 9m | 2833 | 3100 | 8.51m |
MAGIC BOX-2S
Power: 600W
Input: 100-240VAC 50/60Hz
IP Class: IP65
Color Temperature: 2700K-10000K
Color Rendition: CRI ≥ 95
Control: DMX/ CRMX/ BLUETOOTH
Dimensions & Weight
Dimensions (Without Yoke): 681 x 341 x 119 (mm)
Lamphead Weight: 13kg
Yoke Dimensions: 780 x 610 x 55 (mm)
Yoke Weight: 2.5kg
Photometric Magic Box – 4
| Distance | 3200K (Lux) | 5600K (Lux) | Beam Diameter |
| 3m | 16600 | 17560 | 2.67m |
| 5m | 6000 | 6250 | 4.45m |
| 7m | 3060 | 3190 | 6.23m |
| 9m | 1850 | 1950 | 8.01m |
