Luxed Lightstar - Yasuka

LUXED

Bi-Color

Range from 2’800 to 6’500 Kelvin

High CRI

CRI > 95 | TLCI > 95

Connectivity

Professional film lighting with DMX-512, Bluetooth & LumenRadio wireless control. Flexible, reliable options for any film set.

LUXED-S

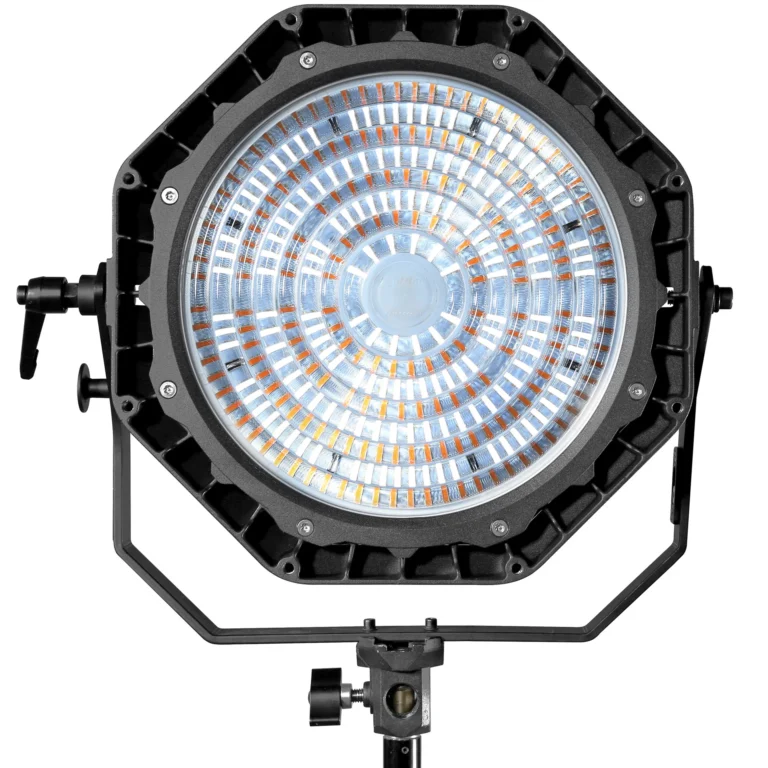

LUXED-S_1

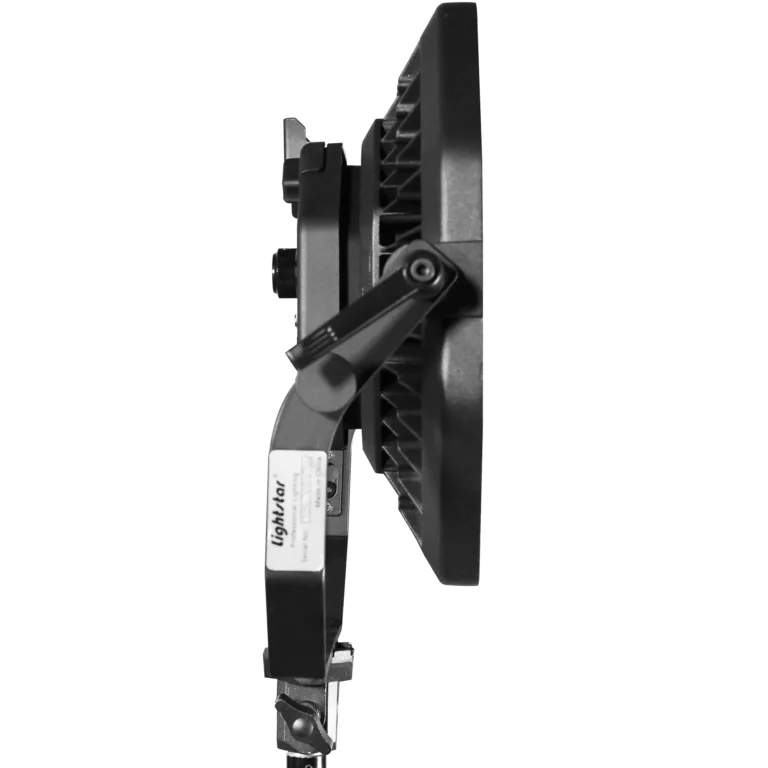

LUXED-S_2

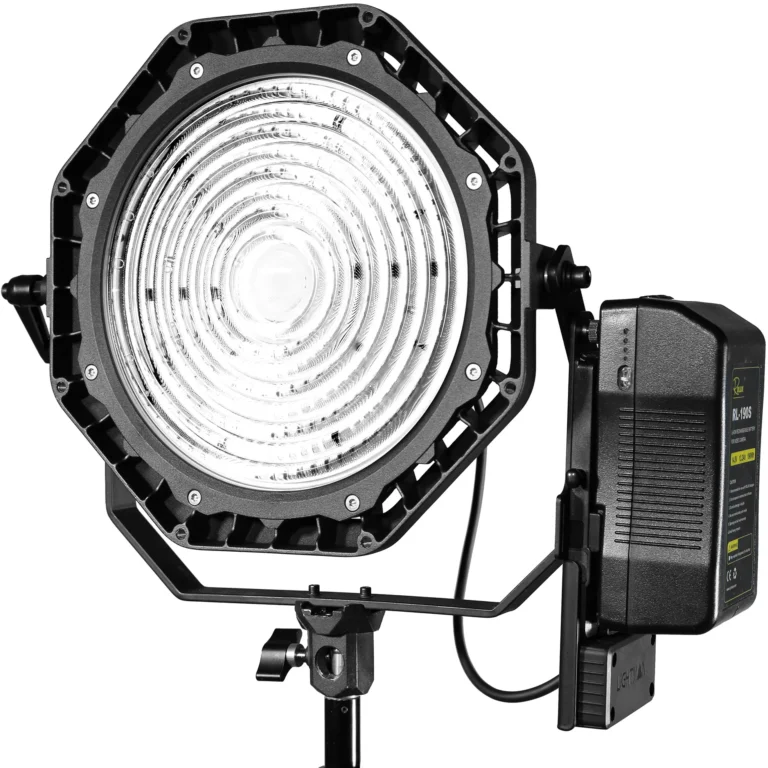

LUXED-S_4

LUXED-S_3

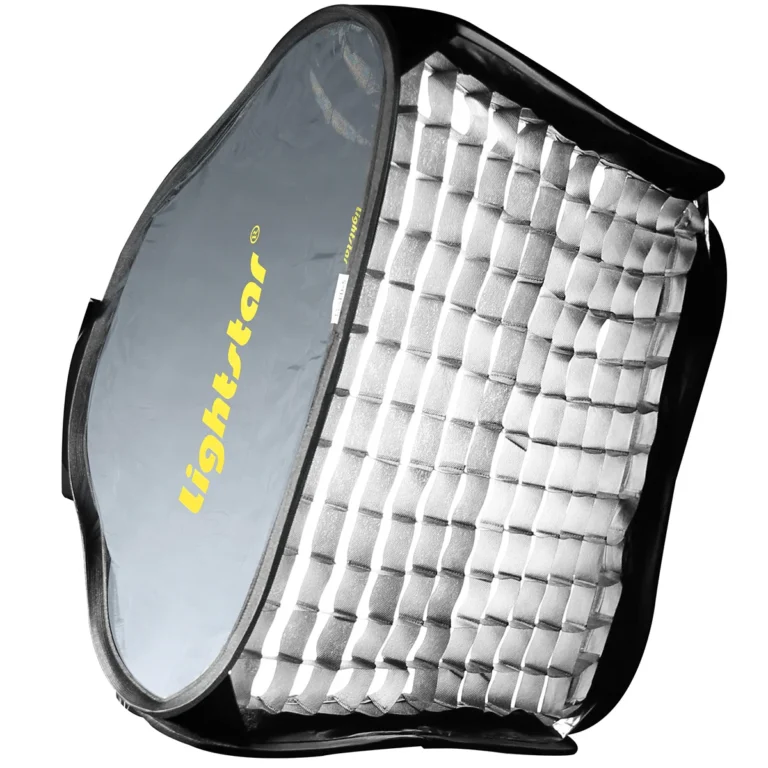

LLC-SS-HC 02

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX (4-channel per unit) or LumenRadio
Frequency	1–50 Hz
Weight	4 kg
Dimensions	365 × 360 × 98 mm
IP Class	IP20
Accessories	Soft Box, Grid, Softbag, AIR Diffusion Box

Illuminance (Lux) – Spot (25°)

Distance	2m	3m	4m
Illuminance	6100	3000	1700
Beam Diameter	1.2m	1.8m	2.4m

Illuminance (Lux) – Flood (60°)

Distance	2m	3m	4m
Illuminance	1900	950	530
Beam Diameter	2.9m	4.3m	5.8m

LUXED-2LM

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX / CRMX / LumenRadio
Frequency	1–50 Hz
Weight	8.5 kg
Dimensions	763 × 563 × 172 mm
IP Class	IP20
Accessories	Soft Box, Grid, Travel Case, AIR Diffusion Box

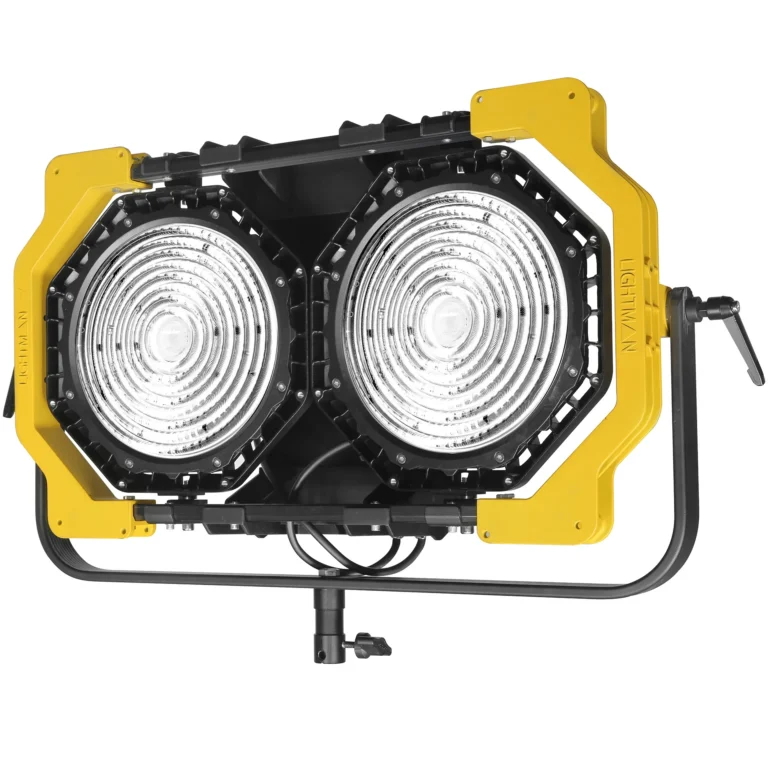

LUXED-2-LM_4

LUXED-2-LM_3

LUXED-2-LM_6

Illuminance (Lux) – Spot (25°)

Distance	2m	3m	4m
Illuminance	11,000	5,000	3,000
Beam Diameter	2.4m	4.0m	4.8m

Illuminance (Lux) – Flood (60°)

Distance	2m	3m	4m
Illuminance	3,500	1,500	950
Beam Diameter	5.8m	9.6m	11.5m

LUXED-3LM

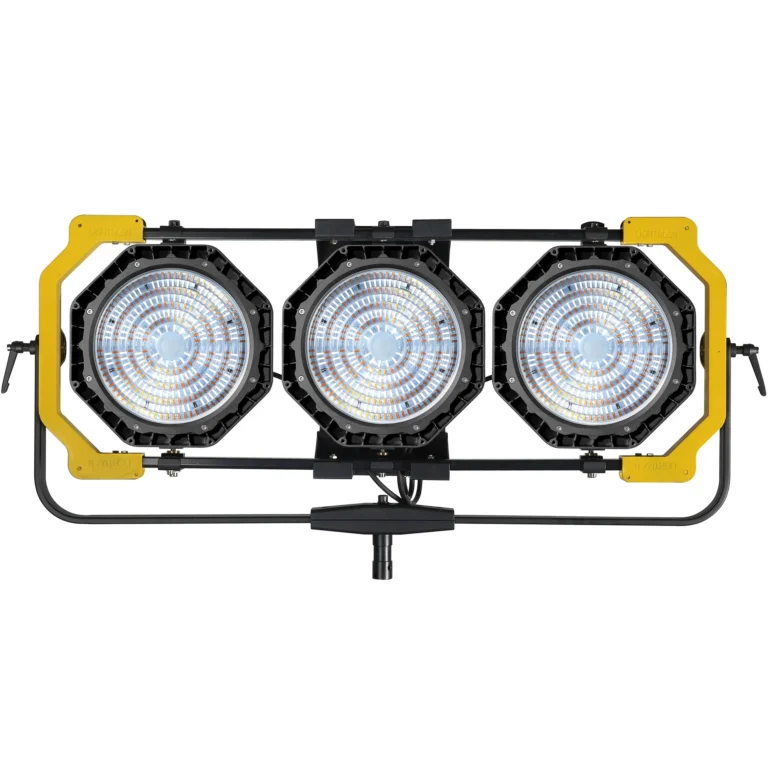

LUXED-3-LM_1

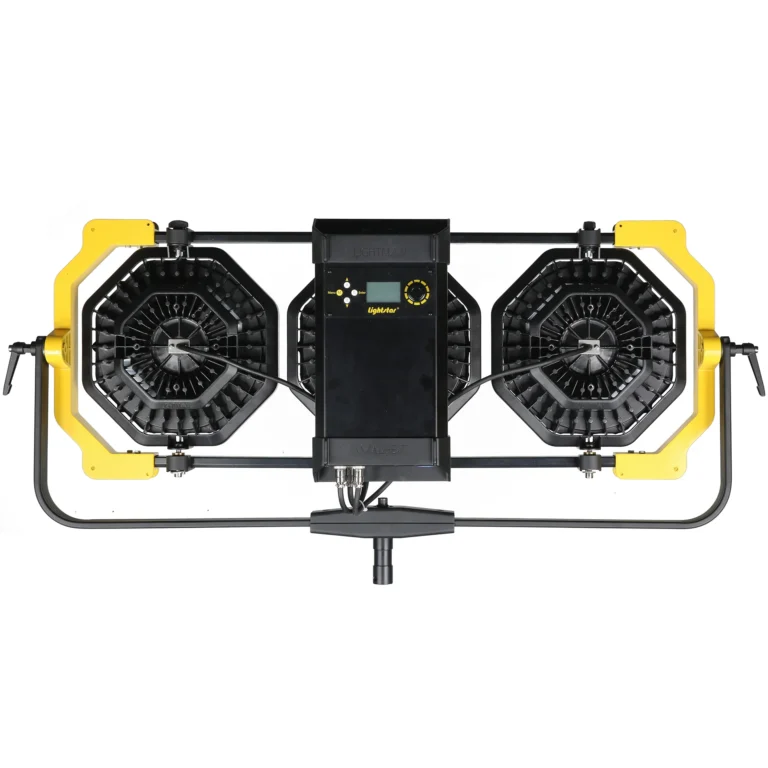

LUXED-3-LM_3

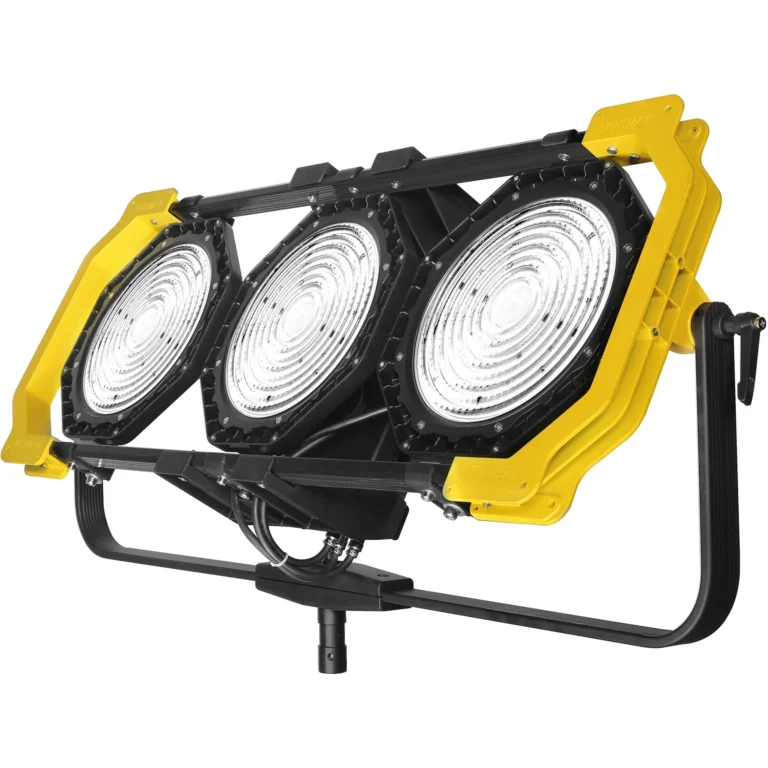

LUXED-3-LM_4

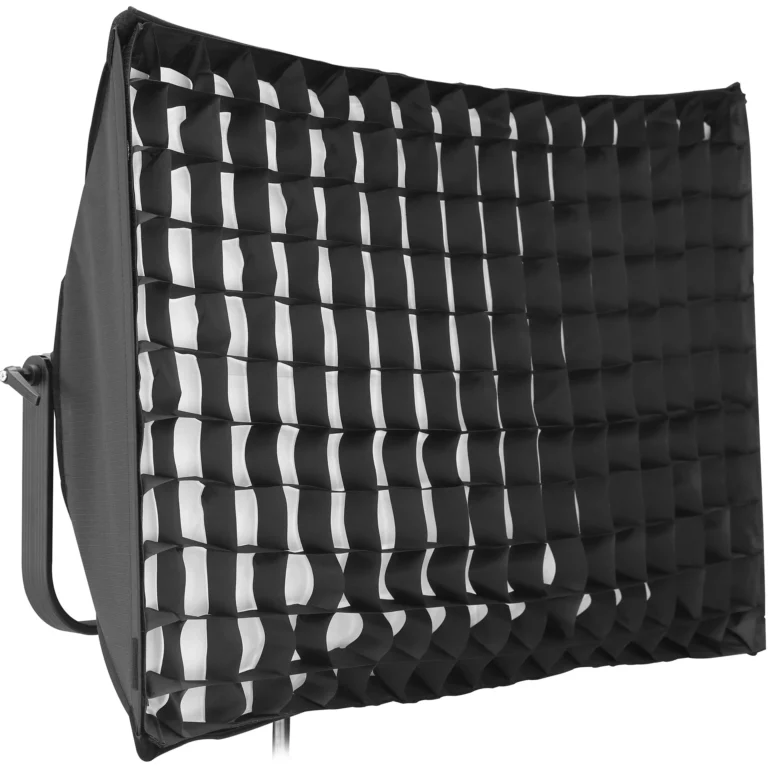

LUXED-3-LM_8

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX / CRMX / LumenRadio, 4-channel control per unit
Frequency	1–50 Hz
Weight	11.5 kg
Dimensions	1048 × 563 × 172 mm
IP Class	IP20
Accessories	Soft Box, Grid, Travel Case, AIR Diffusion Box

Illuminance (Lux) – Spot (25°)

Distance	2m	3m	4m
Illuminance	16,000	7,500	4,500
Beam Diameter	3.0m	4.5m	5.2m

Illuminance (Lux) – Flood (60°)

Distance	2m	3m	4m
Illuminance	4,900	2,300	1,400
Beam Diameter	7.2m	10.8m	12.5m

LUXED-4LM

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX (4-channel per unit) or LumenRadio
Frequency	1–50 Hz
Weight	24 kg
Dimensions	945 × 910 × 216 mm
IP Class	IP20
Accessories	Soft Box, Grid, Travel Case, AIR Diffusion Box, Rainproof Cover, Black/White Skirt
Black Skirt	Ø 880 × 1100 mm
White Skirt	Ø 780 × 1100 mm

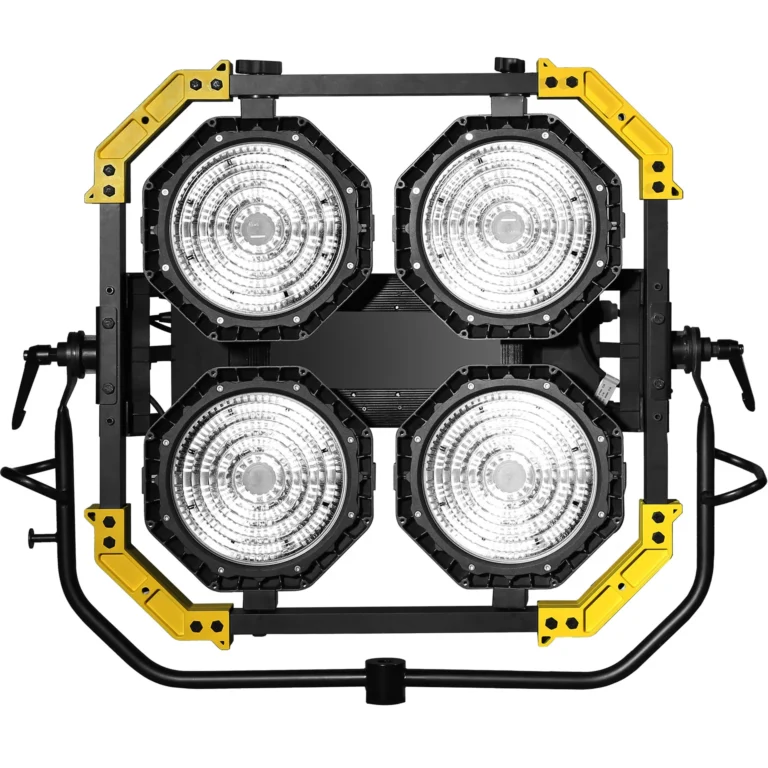

LUXED-4-LM_1

LUXED-4-LM_2

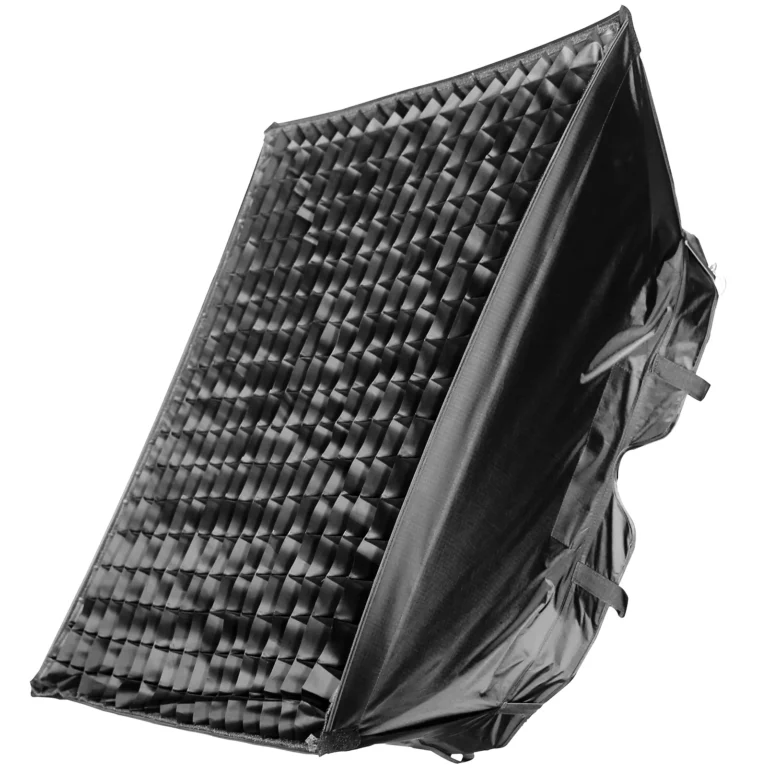

LLC-S4

LUXED-4-LM_3

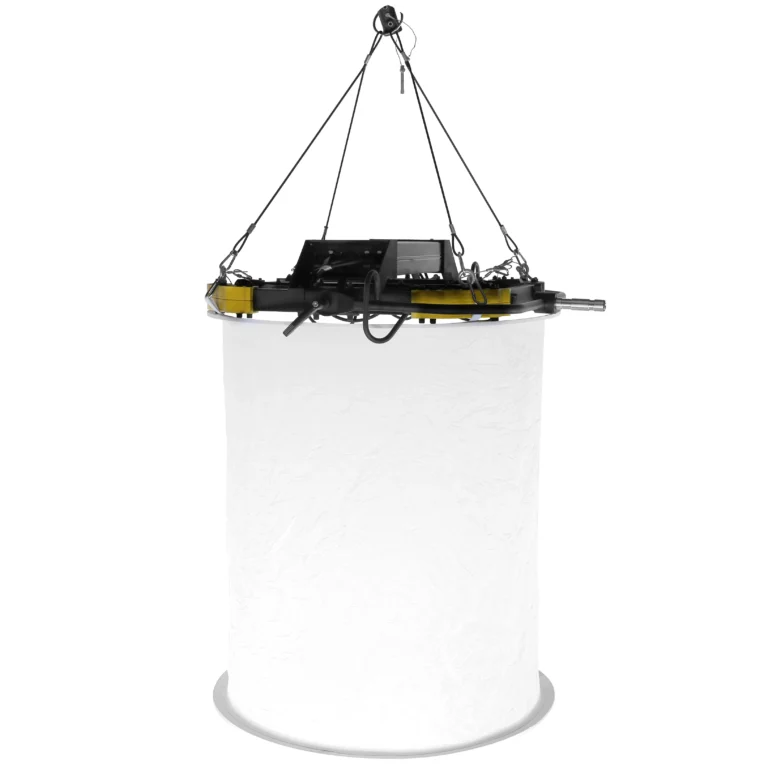

LLC-C4_1

Illuminance (Lux) – Spot (25°)

Distance	2m	3m	4m
Illuminance	11,000	5,000	3,000
Beam Diameter	2.4m	4.0m	4.8m

Illuminance (Lux) – Flood (60°)

Distance	2m	3m	4m
Illuminance	3,500	1,500	950
Beam Diameter	5.8m	9.6m	11.5m

Illuminance (Lux) – With Black / Silk Skirt

Distance	3m	6m	9m
Illuminance	2,300	550	240

Illuminance (Lux) – With Softbox & Grid

Distance	3m	4m	5m
Illuminance	2,900	1,700	1,100

LUXED-6LM

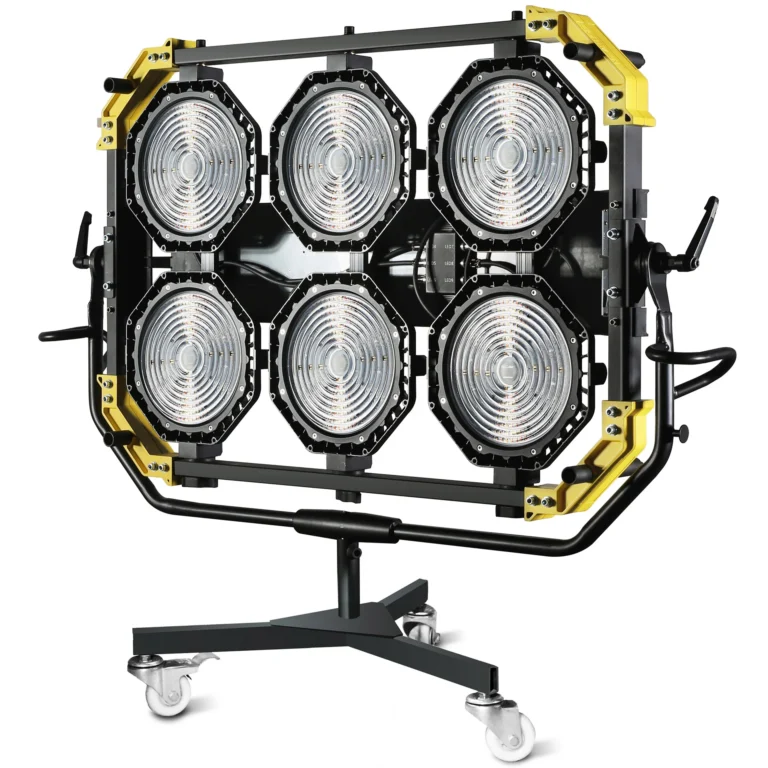

LUXED-6-LM_2

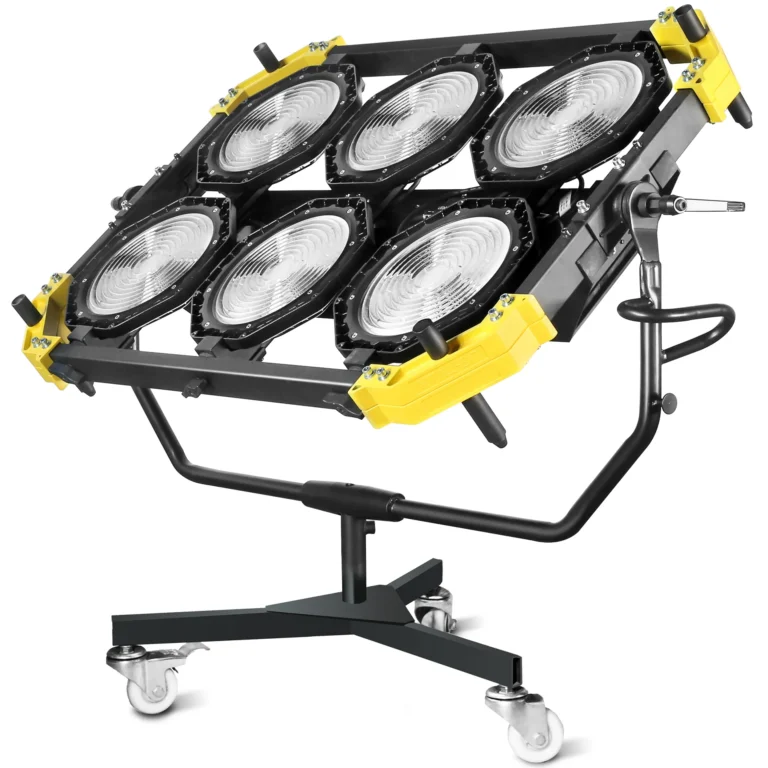

LUXED-6-LM_4

LUXED-6-LM_5

LUXED-6-LM_3

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX (4-channel per unit) or LumenRadio
Frequency	1–50 Hz
Weight	33 kg
Dimensions	1256 × 910 × 216 mm
IP Class	IP20
Accessories	Soft Box, Grid, AIR Diffusion Box

lluminance (Lux) – Spot (25°)

Distance	4m	5m	6m
Illuminance	8,900	6,000	4,300

Illuminance (Lux) – Flood (60°)

Distance	4m	5m	6m
Illuminance	2,800	1,850	1,300

LUXED-9LM

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX (4-channel per unit) or LumenRadio
Frequency	1–50 Hz
Weight	39 kg
Dimensions	1256 × 1218 × 216 mm
IP Class	IP20
Accessories	Soft Box, Grid, AIR Diffusion Box, Rainproof Cover

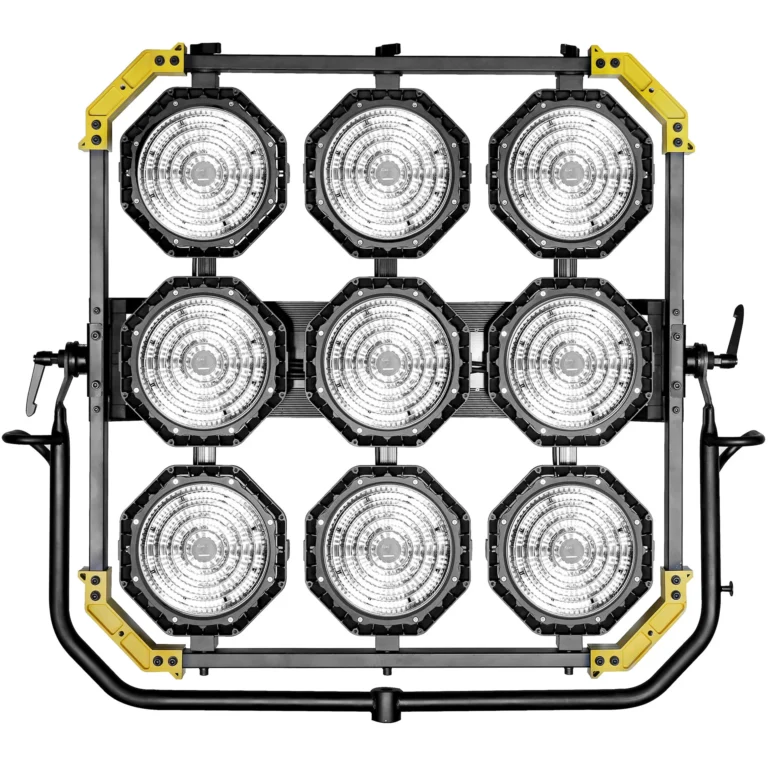

LUXED-9-LM_1

LUXED-9-LM_3

LUXED-9-LM_2

LUXED-9-LM_4

Illuminance (Lux) – Spot (25°)

Distance	4m	5m	6m
Illuminance	13,200	9,200	6,600

Illuminance (Lux) – Flood (60°)

Distance	4m	5m	6m
Illuminance	4,100	2,850	2,000

LUXED-12LM

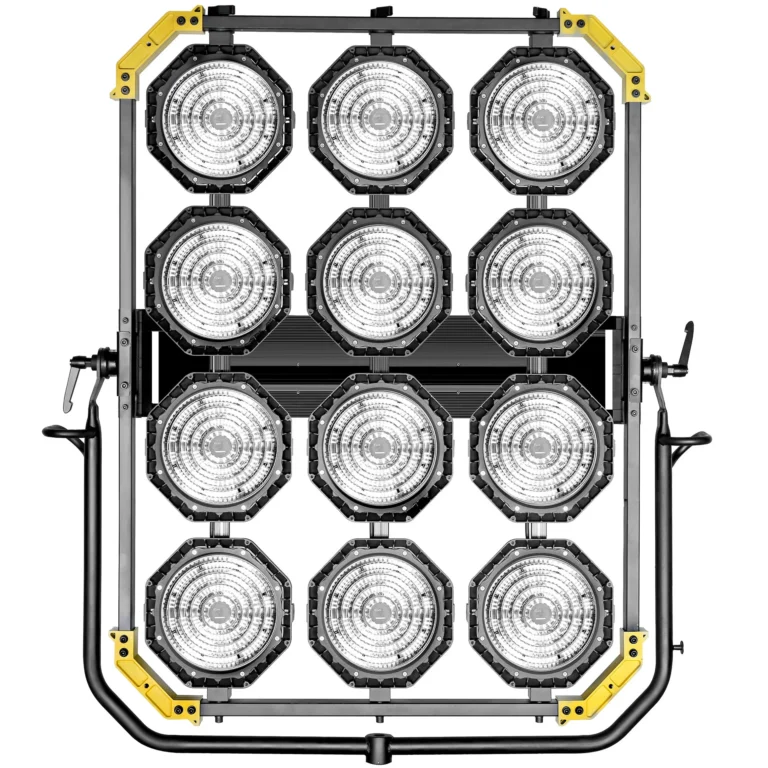

LUXED-12-LM_1

LUXED-12-LM_2

LUXED-12-LM_3

LUXED-12-LM_4

Specification	Details
Material	Aluminium Casting
Color Temperature	2800–6500°K
Dimming	0–100%
CRI / TLCI	>95 / >96
Rated Input	AC 100–240V / DC 48V
Control	Cable DMX (4-channel per unit) or LumenRadio
Frequency	1–50 Hz
Weight	50 kg
Dimensions	1256 × 1526 × 216 mm
IP Class	IP20
Accessories	Soft Box, Grid, AIR Diffusion Box, Rainproof Cover

Illuminance (Lux) – Spot (25°)

Distance	4m	5m	6m
Illuminance	16,000	11,000	8,200

Illuminance (Lux) – Flood (60°)

Distance	4m	5m	6m
Illuminance	4,950	3,450	2,550
