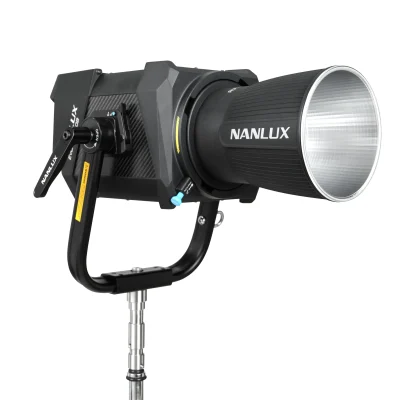

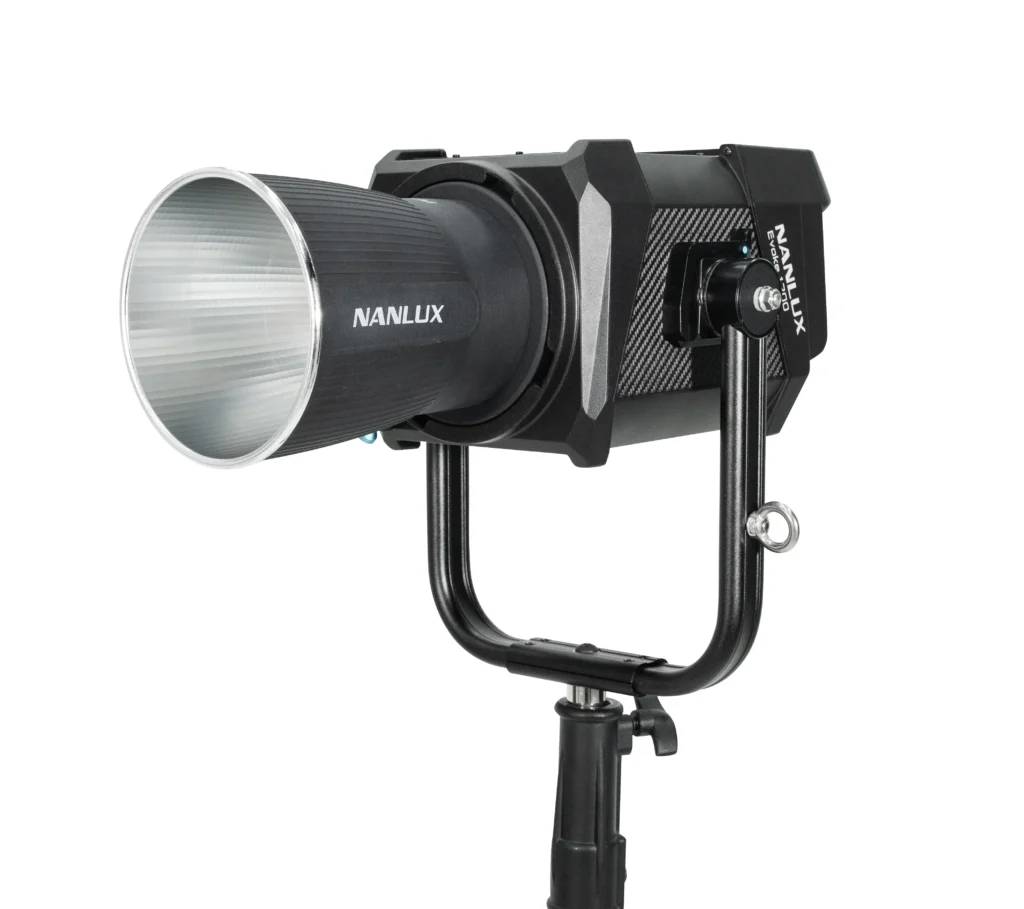

Evoke 1200B
The Evoke 1200 series is a revolutionary new 1.2kW LED fixture, which breaks free from the boundaries of traditional light sources. The Evoke perfectly combines stunning levels of illumination and incredible flexibility with the convenience of LEDs in three different versions: 5600K daylight only, 3200K tungsten only and now the ground breaking bi-color model.
Whether using the fixture as a powerful Fresnel, controllable spotlight, or a natural feeling soft source, this brand new, IP54 rated spotlight, out-performs almost any comparable luminaire.
Technical Data
Power Consumption: 1200W
Power Supply: DC48V/25A Max, AC100-240V 50-60Hz
CRI: Average 96
TLCI: Average 97
CCT: 2700K ~ 6500K
TM-30 Rf: Average 95
TM-30 Rg: Average 102
SSI: Average 79
Dimming: 0–100% dimming in 0.1% increments, Linear, Exponential, Logarithmic, S-Curve (only via DMX/RDM control)
Control: Bluetooth, 2.4G, DMX, RDM, LumenRadio
On-board Effects: CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion, Welding
Product Size:
Light Fixture (without yoke): 330 × 241 × 210 mm / 13 × 9.49 × 8.27″
Light Fixture (with yoke): 503 × 370 × 210 mm / 19.8 × 14.56 × 8.26″
Power Supply: 376.5 × 181 × 246 mm / 14.82 × 7.12 × 9.68″
Product Weight:
Light Fixture: 7.75 kg / 17.09 lb
Yoke: 1.84 kg / 4.06 lb
Power Supply: 10.5 kg / 23.15 lb
Optional Accessories
Photometric Data
| Light Modifier | CCT | Distance (3m / 9.8ft) | Distance (5m / 16.4ft) | Distance (7m / 22.9ft) | Distance (9m / 29.5ft) |
|---|---|---|---|---|---|
| Bare Light | 2700K | 4128 lux / 383 fc | 1762 lux / 164 fc | 997 lux / 93 fc | 608 lux / 56 fc |
| 6500K | 5214 lux / 484 fc | 2231 lux / 207 fc | 1259 lux / 117 fc | 759 lux / 71 fc | |
| 26° Reflector | 2700K | 46220 lux / 4294 fc | 14390 lux / 1387 fc | 7480 lux / 695 fc | 4561 lux / 424 fc |
| 6500K | 61049 lux / 5671 fc | 19030 lux / 1788 fc | 9444 lux / 877 fc | 5935 lux / 551 fc | |
| 45° Reflector | 2700K | 14590 lux / 1355 fc | 5232 lux / 486 fc | 3014 lux / 280 fc | 1963 lux / 182 fc |
| 6500K | 18720 lux / 1739 fc | 6774 lux / 629 fc | 3873 lux / 360 fc | 2538 lux / 236 fc | |
| 60° Reflector | 2700K | 9370 lux / 870 fc | 3736 lux / 347 fc | 2186 lux / 203 fc | 1405 lux / 131 fc |
| 6500K | 12370 lux / 1149 fc | 4834 lux / 449 fc | 2844 lux / 264 fc | 1833 lux / 170 fc | |
| Fresnel Lens (11°) | 2700K | 39200 lux / 3642 fc | 13880 lux / 1289 fc | 7154 lux / 665 fc | 4420 lux / 411 fc |
| 6500K | 49440 lux / 4593 fc | 17650 lux / 1640 fc | 9081 lux / 844 fc | 5608 lux / 521 fc | |
| Fresnel Lens (45°) | 2700K | 9960 lux / 925 fc | 4106 lux / 381 fc | 2375 lux / 221 fc | 1568 lux / 146 fc |
| 6500K | 12840 lux / 1193 fc | 5228 lux / 486 fc | 3048 lux / 283 fc | 2019 lux / 188 f |
Includes:
Evoke 1200B × 1
Yoke × 1
Power Supply × 1
Reflector × 1
Connecting Cable 5m × 1
Power Cable 4.5m × 1
USB Flash Drive × 1
User Manual × 1
DMX Reference Guide × 1
