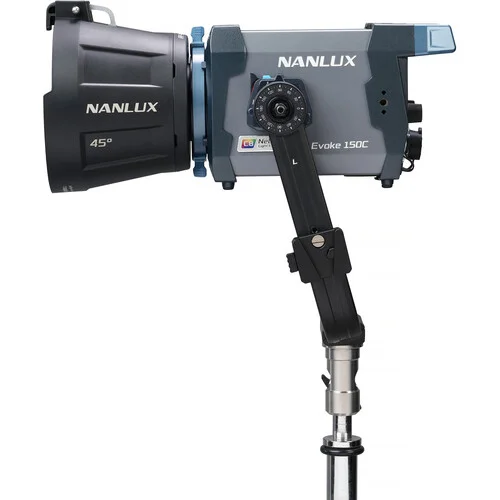

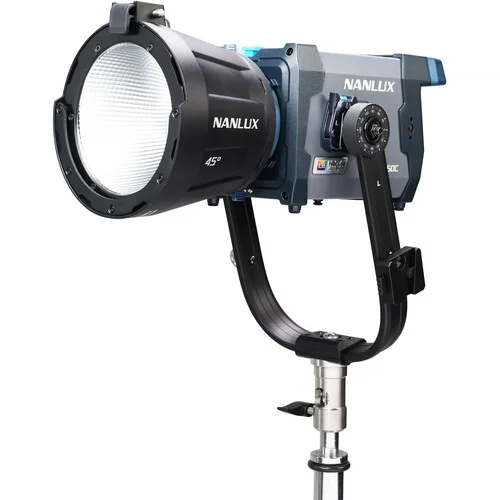

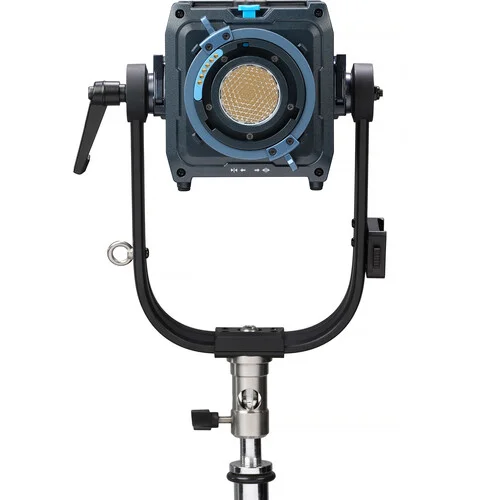

Evoke 150C
Technical Data
Rated Power: 150W
Input Voltage / Current:
AC100-240V 50/60Hz, 2A Max
DC14.4-28V
PD3.0 (12-28V) 60W Min
Beam Angle: 47°
LED Light Engine: Nebula C8 Light Engine (dRRALGCBI)
CCT: 1000K – 20000K (G/M ±200)
CRI: Average 98
TLCI: Average 98
TM-30 Rf: Average 96
TM-30 Rg: Average 100
Dimming: 0.0% – 100.0%, adjustable in 0.1% increments
Product Size
Light Fixture: 209.14 × 146.95 × 127.29 mm / 8.23 × 5.79 × 5.01″
Yoke: 282.46 × 226.32 × 89.21 mm / 11.12 × 8.91 × 3.51″
RF-FE-45 FE Mount Reflector 45°: Φ131.8 × 206 × 195.5 mm / Φ5.19 × 8.11 × 7.70″
D-Tap Cable: 1.5 m / 4.92 ft
AS-MB-1 Magnetic Base: 29 × 43.7 × 17.3 mm / 1.14 × 1.72 × 0.68″
AS-BP-QRS 5/8″ Baby Pin with Quick Release Plate: 87.79 × 35.26 × 30.23 mm / 3.46 × 1.39 × 1.19″
Carrying Bag: 360 × 220 × 245 mm / 14.17 × 8.66 × 9.65″
Product Weight
Light Fixture: 2.11 kg / 4.65 lb
Yoke: 0.54 kg / 1.19 lb
RF-FE-45 FE Mount Reflector 45°: 0.34 kg / 0.75 lb
AC Power Cable (4.5 m): 0.37 kg / 0.82 lb
D-Tap Cable: 0.09 kg / 0.20 lb
AS-MB-1 Magnetic Base: 0.03 kg / 0.066 lb
AS-BP-QRS 5/8″ Baby Pin with Quick Release Plate: 0.046 kg / 0.10 lb
Carrying Bag: 2.43 kg / 5.36 lb
Illumination (Lux / Fc)
Light Only
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 11,310 lux / 1,051 fc | 1,239 lux / 115 fc | 460 lux / 43 fc |
| 3200K | 12,120 lux / 1,126 fc | 1,320 lux / 123 fc | 491 lux / 46 fc |
| 5600K | 12,160 lux / 1,130 fc | 1,328 lux / 123 fc | 495 lux / 46 fc |
| 6500K | 12,680 lux / 1,178 fc | 1,368 lux / 127 fc | 514 lux / 48 fc |
| R | 1,705 lux / 158 fc | 179 lux / 17 fc | 67 lux / 6 fc |
| G | 5,680 lux / 528 fc | 615 lux / 57 fc | 230 lux / 21 fc |
| B | 1,600 lux / 149 fc | 174 lux / 16 fc | 65 lux / 6 fc |
With 25° Reflector
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 78,200 lux / 7,265 fc | 5,090 lux / 473 fc | 1,696 lux / 158 fc |
| 3200K | 85,400 lux / 7,934 fc | 5,570 lux / 517 fc | 1,831 lux / 170 fc |
| 5600K | 83,500 lux / 7,757 fc | 5,460 lux / 507 fc | 1,818 lux / 169 fc |
| 6500K | 87,600 lux / 8,138 fc | 5,730 lux / 532 fc | 1,875 lux / 174 fc |
| R | 10,160 lux / 944 fc | 645 lux / 60 fc | 235 lux / 22 fc |
| G | 38,700 lux / 3,595 fc | 2,520 lux / 234 fc | 838 lux / 78 fc |
| B | 10,920 lux / 1,014 fc | 712 lux / 66 fc | 237 lux / 22 fc |
With 45° Reflector
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 20,660 lux / 1,919 fc | 1,978 lux / 184 fc | 724 lux / 67 fc |
| 3200K | 22,640 lux / 2,103 fc | 2,177 lux / 202 fc | 791 lux / 73 fc |
| 5600K | 22,230 lux / 2,065 fc | 2,155 lux / 200 fc | 784 lux / 73 fc |
| 6500K | 23,230 lux / 2,158 fc | 2,230 lux / 207 fc | 814 lux / 76 fc |
| R | 2,604 lux / 242 fc | 238 lux / 22 fc | 90 lux / 8 fc |
| G | 10,200 lux / 948 fc | 982 lux / 91 fc | 357 lux / 33 fc |
| B | 2,882 lux / 268 fc | 276 lux / 26 fc | 100 lux / 9 fc |
