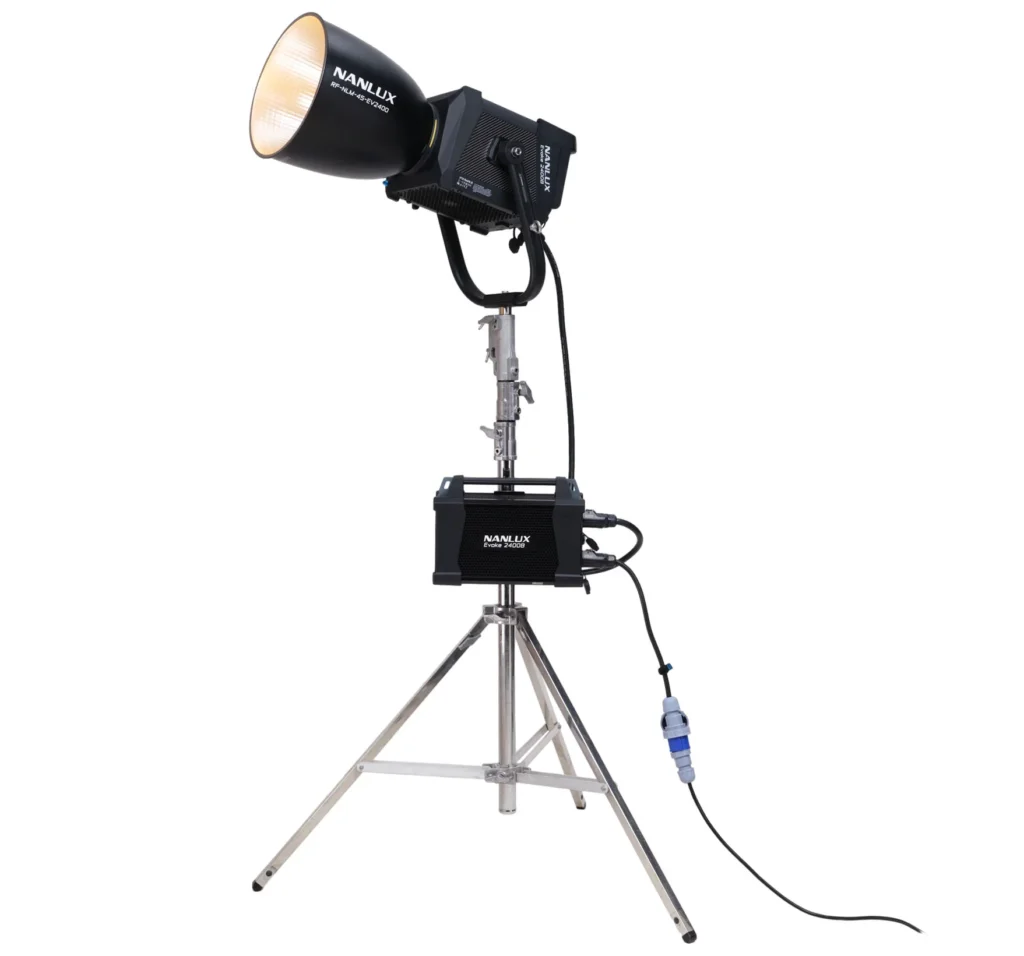

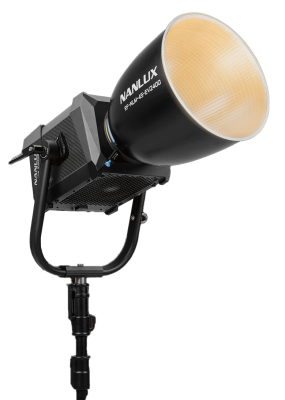

Evoke 2400B
Illuminate Your Vision with Precision and Power
The Nanlux Evoke 2400B is more than a light — it’s your creative ally, engineered to enhance every production. Here’s what makes it exceptional:
- Effortlessly fine-tune the color temperature from warm tones to cool whites, allowing you to craft the ideal atmosphere for any scene.
- With its powerful lumen output, the Evoke 2400B delivers exceptional brightness, ensuring your subjects are always perfectly illuminated.
- Take full control of your lighting from a distance, giving you maximum flexibility and effortless convenience on set.
Whether you’re a filmmaker, photographer, or content creator, the Evoke 2400B is built to adapt to every creative challenge. It blends advanced technology with exceptional performance to elevate your work to the next level.
Why the Evoke 2400B Shines Above the Rest?
the 4KW HMI or 10KW Tungsten.
include no preheating or cool-down time delay, flicker-free,
0.0%-100.0% dimming and adjustable color temperature allowing
for greater flexibility, making lighting setups easier and more efficient.
Making changes during shooting sessions is now effortless and time-saving.
Technical Data
LED Total Power: 2400W
Input Voltage / Current: DC48V/26A × 2, AC100-240V 50/60Hz 26A Max
CCT: 2700K ~ 6500K (G/M ±80)
CRI/TLCI: Average 96
TM-30 Rf: Average 95
TM-30 Rg: Average 100
SSI (3200K): 84
SSI (5600K): 74
TLCI: Average 97
IP Rating: IP55
Dimming: 0–100% stepless, 0.1% increments
Control Options: On-board, Wired Control, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN
Special Effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion, Welding
Weight:
Light Fixture (without COB protective cap): 15 kg / 33.1 lb
Power Supply: 11.58 kg / 25.53 lb
Input Voltage / Current: DC48V/18.75A Max, AC100-240V 50/60Hz
Dimming Range: 0–100%, adjustable in 0.1% increments
Photometrics (Lux / Fc)
Light Only
| Distance | 3m | 5m | 7m | 9m |
|---|---|---|---|---|
| 2700K | 7910 lux / 735 fc | 3162 lux / 294 fc | 1686 lux / 157 fc | 1054 lux / 98 fc |
| 3200K | 8732 lux / 811 fc | 3478 lux / 323 fc | 1848 lux / 172 fc | 1152 lux / 107 fc |
| 4300K | 9671 lux / 898 fc | 3858 lux / 358 fc | 2071 lux / 192 fc | 1263 lux / 117 fc |
| 5600K | 9584 lux / 890 fc | 3801 lux / 353 fc | 2028 lux / 188 fc | 1266 lux / 118 fc |
| 6500K | 9745 lux / 905 fc | 3873 lux / 360 fc | 2099 lux / 195 fc | 1275 lux / 118 fc |
With 45° Reflector
| Distance | 3m | 5m | 7m | 9m |
|---|---|---|---|---|
| 2700K | 32140 lux / 2986 fc | 10770 lux / 1001 fc | 5604 lux / 521 fc | 3412 lux / 317 fc |
| 3200K | 36710 lux / 3410 fc | 12270 lux / 1140 fc | 6381 lux / 593 fc | 3872 lux / 360 fc |
| 4300K | 41800 lux / 3883 fc | 14030 lux / 1303 fc | 7242 lux / 673 fc | 4381 lux / 407 fc |
| 5600K | 41910 lux / 3893 fc | 14070 lux / 1307 fc | 7254 lux / 674 fc | 4401 lux / 409 fc |
| 6500K | 36090 lux / 3353 fc | 12160 lux / 1130 fc | 6276 lux / 583 fc | 3839 lux / 357 fc |
With 30° Reflector
| Distance | 3m | 5m | 7m | 9m |
|---|---|---|---|---|
| 2700K | 78560 lux / 7298 fc | 24690 lux / 2294 fc | 12250 lux / 1138 fc | 7311 lux / 679 fc |
| 3200K | 89160 lux / 8283 fc | 28020 lux / 2603 fc | 13900 lux / 1291 fc | 8305 lux / 772 fc |
| 4300K | 103000 lux / 9596 fc | 31410 lux / 2918 fc | 15640 lux / 1453 fc | 9330 lux / 867 fc |
| 5600K | 104000 lux / 9662 fc | 31610 lux / 2937 fc | 15740 lux / 1462 fc | 9369 lux / 870 fc |
| 6500K | 83970 lux / 7801 fc | 26320 lux / 2445 fc | 13060 lux / 1213 fc | 7791 lux / 724 fc |
With 60° Reflector
| Distance | 3m | 5m | 7m | 9m |
|---|---|---|---|---|
| 2700K | 20220 lux / 1878 fc | 7169 lux / 666 fc | 3760 lux / 349 fc | 2322 lux / 216 fc |
| 3200K | 23010 lux / 2138 fc | 8118 lux / 754 fc | 4241 lux / 394 fc | 2622 lux / 244 fc |
| 4300K | 25810 lux / 2398 fc | 9145 lux / 850 fc | 4776 lux / 444 fc | 2956 lux / 275 fc |
| 5600K | 26000 lux / 2415 fc | 9214 lux / 856 fc | 4800 lux / 446 fc | 2976 lux / 276 fc |
| 6500K | 21640 lux / 2010 fc | 7685 lux / 714 fc | 4005 lux / 372 fc | 2482 lux / 231 fc |
Optional Accessories
Evoke 2400B KIT-FO
(*for CN, UK, AU, EU, KR)
Evoke 2400B × 1
Yoke × 1
Power Supply × 1
USB Flash Drive × 1
AS-CP-QR-EV Quick Release Clamp × 1
CC-EV2400-FT-FO Flight Case × 1
WS-RC-C2 Remote Controller × 1
DC Connection Cable 7.5M × 1
AC Power Cable 2.5M+1M (CN, UK, AU, EU, KR) × 1
RF-NL-L-45 Reflector 45°x1 (packed separately)
User Manual x 1
