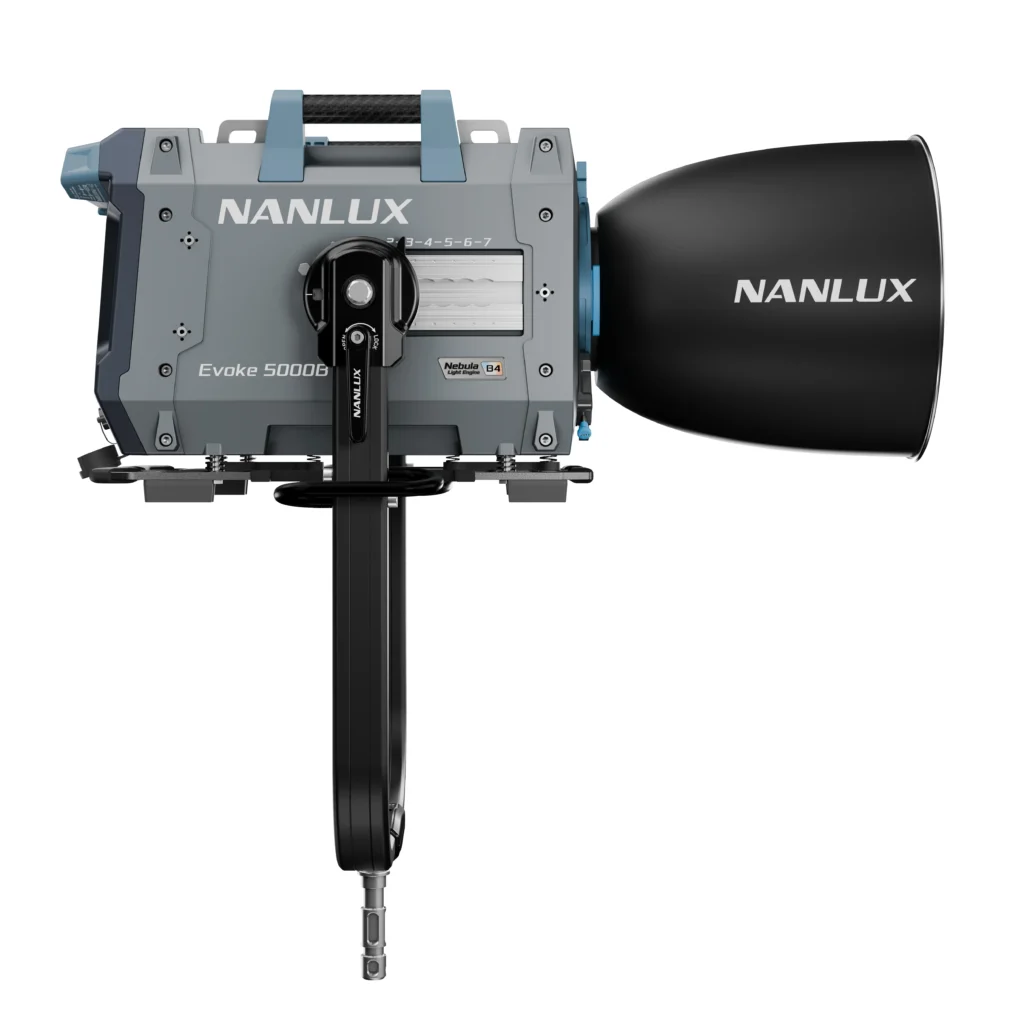

Evoke 5000B
Unleash Your Creativity with Unmatched Features
The Evoke 5000B Nanlux isn’t just a lighting solution; it’s a creative partner designed to elevate your projects. Here’s what makes it stand out:
- Easily adjust the color temperature from warm to cool to create the perfect ambiance.
- With a high lumen output, the Evoke 5000B ensures your subjects are never left in the dark.
- Control your lighting remotely for ultimate flexibility and convenience.
Whether you’re a filmmaker, a photographer, or a content creator, the Evoke 5000B is designed to meet the diverse needs of your projects. It combines cutting-edge features with great performance to enhance your creative work.
Why the Evoke 5000B Stands Out?
Innovative Nebula B4 light engine to achieve 2700K-6500K with G/M±80 adjustment
IP66 rating for robust weather protection
Weighing only 43.119kg/95.06lb, made of magnesium alloy for significant weight reduction
All-in-one design integrates the lamp head, control unit, and adapter into one fixture
Refined usability features like the balance adjusting rail, skid, and the new PosiTight tightening enhancement of the NL mount
Linear dimming from 0.0% to 100.0%, with precise control between 0.0% and 0.1%
Multiple control methods On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, Wired Controller
5 fan modes SMART, FULL SPEED, LOW SPEED, PAUSE, OFF
NL mount and complete accessory ecosystem, compatible with most Evoke 2400B accessories and featuring versatile accessories specifically developed for the Evoke 5000B
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power (200V–240V) | 5000 W |
| Rated Power (100V–125V) | 5200 W |
| Input Voltage / Current | AC 100V–240V / 52A (Max), 50/60 Hz |
| Beam Angle | 95° |
| CCT (Correlated Color Temperature) | 2700K–6500K (G/M ±80) |
| CRI (Average) | 97 |
| TLCI (Average) | 98 |
| TM-30 Rf (Average) | 96 |
| TM-30 Rg (Average) | 102 |
| SSI (3200K) | 85 |
| SSI (5600K) | 74 |
| Dimming | 0.0%–100.0%, adjustable in 0.1% increments |
In the Box

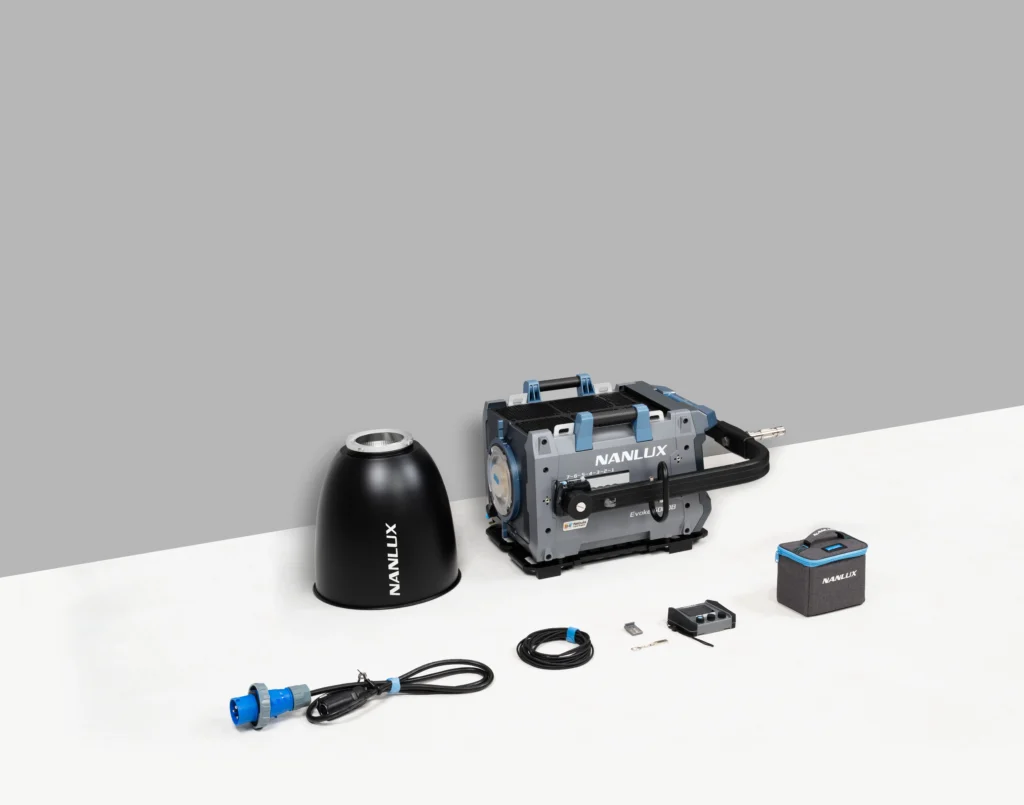

Standard Kit
- Evoke 5000B × 1
- Yoke × 1
- AC Cable 2m × 1 (for 200-240V countries/regions),
- or AC Cable 7.5m × 1 (for 100-125V countries/regions)
- Reflector × 1
- USB Flash Drive × 1
- WC-EXT Wired Controller × 1 (Connection Cable 8m × 1,
- AS-MB-1 Magnetic Base × 1, Carrying Bag × 1)
- User Manual × 2 (Evoke 5000B+WC-EXT)

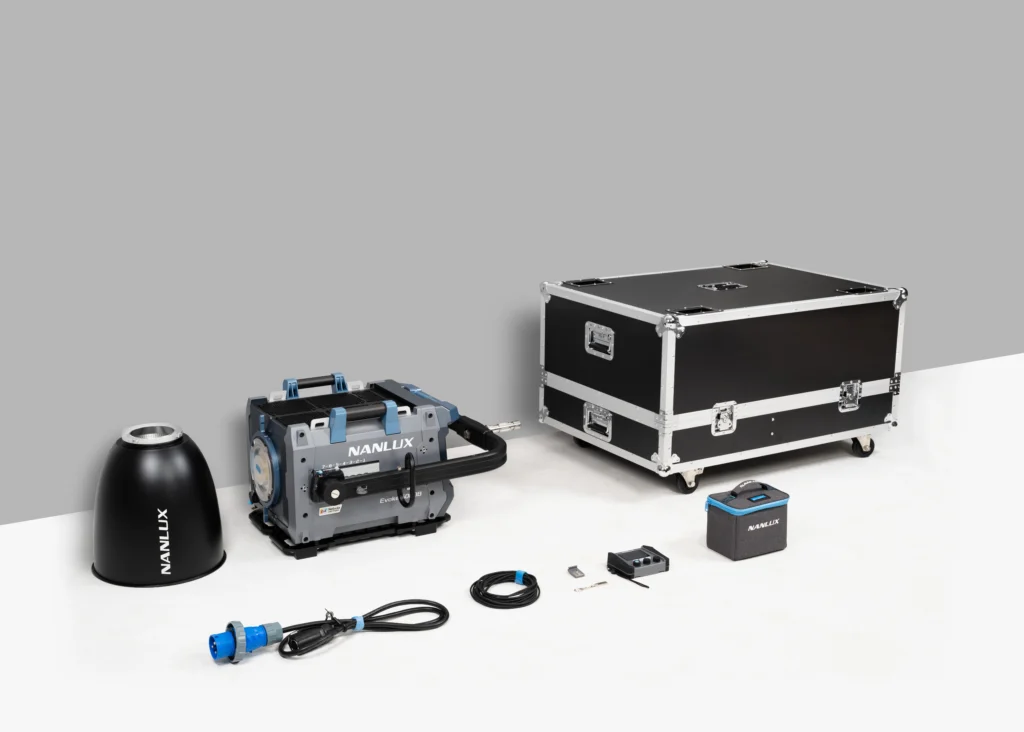

Flight Case Kit
- Evoke 5000B × 1
- Yoke × 1
- AC Cable 2m × 1 (for 200-240V countries/regions),
- or AC Cable 7.5m × 1 (for 100-125V countries/regions)
- Reflector × 1
- USB Flash Drive × 1
- CC-EV5000-FT Flight Case × 1
- WC-EXT Wired Controller × 1 (Connection Cable 8m × 1,
- AS-MB-1 Magnetic Base × 1, Carrying Bag × 1)
- User Manual × 2 (Evoke 5000B KIT+WC-EXT)
