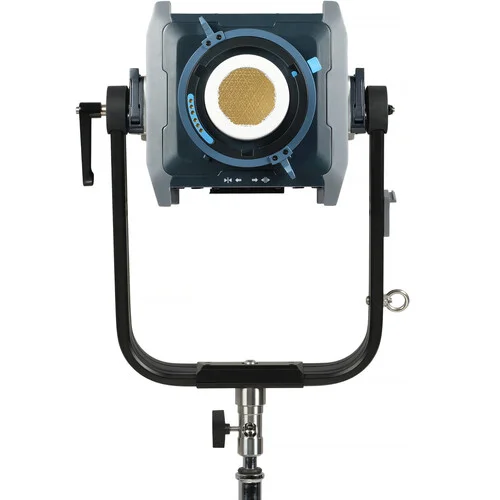

Evoke 600C
Technical Data
Rated Power: 600W
Input Voltage / Current: AC100-240V 50/60Hz, 8A Max; DC48V / 12.5A
Beam Angle: 65°
LED Light Engine: Nebula C8 Light Engine (dRRALGCBI)
CCT: 1000K – 20000K (G/M ±200)
CRI: Average 98
TLCI: Average 98
TM-30 Rf: Average 96
TM-30 Rg: Average 100
Dimming: 0.0% – 100.0%, adjustable in 0.1% increments
Product Size
Light Fixture: 358.2 × 246.3 × 205.33 mm / 14.10 × 9.70 × 8.08″
Yoke: 405 × 355.4 × 63.6 mm / 15.94 × 14.0 × 2.50″

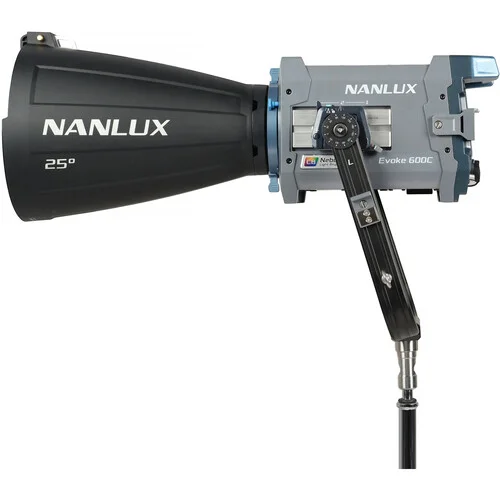

RF-BE-25 BE Mount Reflector 25°: Φ131.8 × 273 × 372.5 mm / Φ5.19 × 10.75 × 14.67″
AS-MB-2 Magnetic Base: 65.1 × 44 × 29 mm / 2.56 × 1.73 × 1.14″
WC-EXT Wired Controller: 149.9 × 121.7 × 41 mm / 5.90 × 4.79 × 1.61″
AS-MB-1 Magnetic Base: 29 × 43.7 × 17.3 mm / 1.14 × 1.72 × 0.68″
CC-ST-EV600C Trolley Case: 460 × 370 × 580 mm / 18.11 × 14.57 × 22.83″
Product Weight
Light Fixture: 7.26 kg / 16.01 lb
Yoke: 1.02 kg / 2.25 lb
RF-BE-25 BE Mount Reflector 25°: 1.654 kg / 3.65 lb
AC Power Cable (6m): 0.59 kg / 1.30 lb
AS-MB-2 Magnetic Base: 0.038 kg / 0.084 lb
WC-EXT Wired Controller: 0.493 kg / 1.09 lb
Connection Cable (8m): 0.3 kg / 0.66 lb
AS-MB-1 Magnetic Base: 0.03 kg / 0.066 lb
CC-ST-EV600C Trolley Case: 6.6 kg / 14.55 lb
Illumination (Lux / Fc)
Light Only
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 19,700 lux / 1,830 fc | 2,248 lux / 209 fc | 852 lux / 79 fc |
| 3200K | 22,130 lux / 2,056 fc | 2,512 lux / 233 fc | 952 lux / 88 fc |
| 5600K | 24,620 lux / 2,287 fc | 2,754 lux / 256 fc | 1,042 lux / 97 fc |
| 6500K | 25,150 lux / 2,336 fc | 2,805 lux / 261 fc | 1,063 lux / 99 fc |
| R | 3,790 lux / 352 fc | 421 lux / 39 fc | 158 lux / 15 fc |
| G | 13,910 lux / 1,292 fc | 1,567 lux / 146 fc | 592 lux / 55 fc |
| B | 2,109 lux / 196 fc | 236 lux / 22 fc | 89 lux / 8 fc |
With 25° Reflector
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 275,300 lux / 25,575 fc | 16,190 lux / 1,504 fc | 5,320 lux / 494 fc |
| 3200K | 298,900 lux / 27,768 fc | 17,610 lux / 1,636 fc | 5,780 lux / 537 fc |
| 5600K | >300,000 lux | 20,820 lux / 1,934 fc | 6,810 lux / 633 fc |
| 6500K | >300,000 lux | 20,090 lux / 1,866 fc | 6,570 lux / 610 fc |
| R | 40,200 lux / 3,735 fc | 2,326 lux / 216 fc | 771 lux / 72 fc |
| G | 189,400 lux / 17,595 fc | 11,110 lux / 1,032 fc | 3,640 lux / 338 fc |
| B | 31,600 lux / 2,936 fc | 1,866 lux / 173 fc | 614 lux / 57 fc |
With 45° Reflector
| CCT / Distance | 1m | 3m | 5m |
|---|---|---|---|
| 2700K | 65,600 lux / 6,094 fc | 6,100 lux / 567 fc | 2,169 lux / 202 fc |
| 3200K | 72,200 lux / 6,707 fc | 6,700 lux / 622 fc | 2,400 lux / 223 fc |
| 5600K | 83,900 lux / 7,794 fc | 7,740 lux / 719 fc | 2,766 lux / 257 fc |
| 6500K | 83,100 lux / 7,720 fc | 7,660 lux / 712 fc | 2,737 lux / 254 fc |
| R | 10,000 lux / 929 fc | 904 lux / 84 fc | 330 lux / 31 fc |
| G | 45,100 lux / 4,190 fc | 4,170 lux / 387 fc | 1,490 lux / 138 fc |
| B | 7,350 lux / 683 fc | 679 lux / 63 fc | 242 lux / 22 fc |
