Evoke 900C
Technical Data
LED Total Power: 940W
CCT: 1800K ~ 20000K (G/M ±200)
CRI/TLCI: Average 96
IP Rating: IP55
Weight:
Light Fixture: 7.7 kg / 16.98 lb

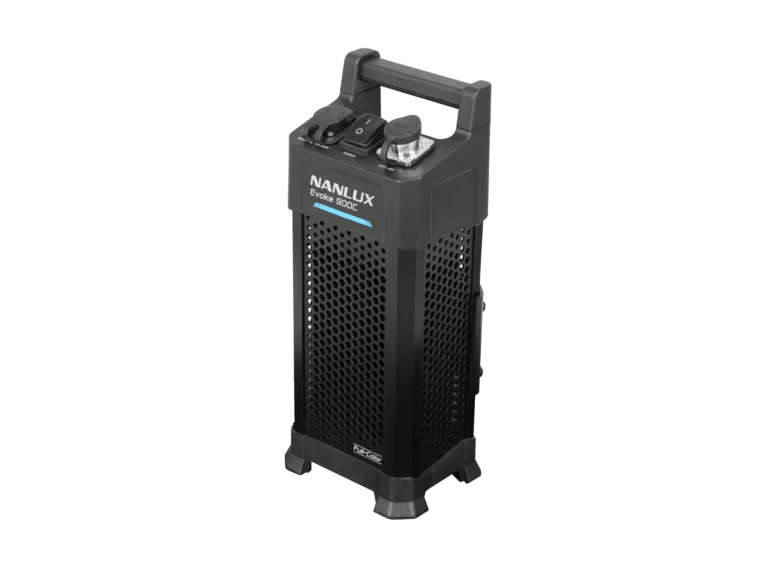

Power Supply: 4.5 kg / 9.92 lb
Yoke: 1.84 kg / 4.05 lb
Input Voltage / Current: DC48V / 18.75A Max, AC100-240V 50/60Hz
AC Amp: 110V – 10.90A, 220V – 5.45A, 240V – 5.00A
Dimming: 0–100%, 0.1% incremental
Control Options: On-board Controller, 2.4G, Bluetooth, DMX, RDM, LumenRadio, Wired Control
Unleash Every Shade of Imagination.
The Evoke 900C transforms light into art with accuracy and depth that inspire.
LumenRadio CRMX Wireless Control Solution
Through the built-in LumenRadio TimoTwo module, Evoke 900C can receive or
transmit CRMX signal, and have the ability to cooperate with other lighting fixtures.
Optional Accessories
Photometric
Light Only
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 3852 lux / 358 fc | 1518 lux / 141 fc | 835 lux / 78 fc |
| 3200K | 4250 lux / 395 fc | 1656 lux / 154 fc | 925 lux / 86 fc |
| 4300K | 4470 lux / 415 fc | 1738 lux / 161 fc | 973 lux / 90 fc |
| 5600K | 4341 lux / 403 fc | 1688 lux / 157 fc | 945 lux / 88 fc |
| 7500K | 4265 lux / 396 fc | 1676 lux / 156 fc | 929 lux / 86 fc |
| R | 800 lux / 74 fc | 300 lux / 28 fc | 173 lux / 16 fc |
| G | 1835 lux / 170 fc | 720 lux / 67 fc | 398 lux / 37 fc |
| B | 210 lux / 20 fc | 83 lux / 8 fc | 46 lux / 4 fc |

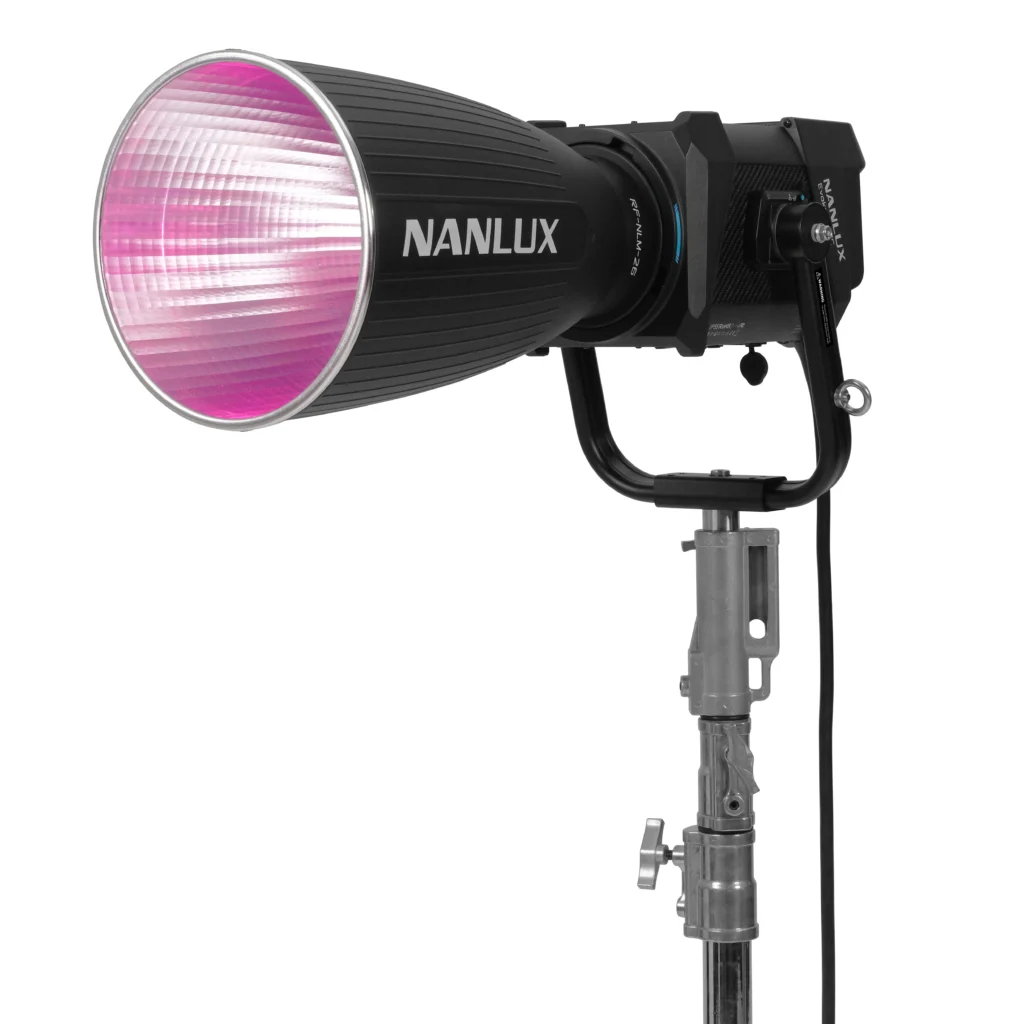

With 26° Reflector
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 35820 lux / 3328 fc | 11220 lux / 1042 fc | 5452 lux / 506 fc |
| 3200K | 39530 lux / 3672 fc | 12300 lux / 1143 fc | 6036 lux / 561 fc |
| 4300K | 41560 lux / 3861 fc | 12940 lux / 1202 fc | 6336 lux / 589 fc |
| 5600K | 40300 lux / 3744 fc | 12560 lux / 1167 fc | 6176 lux / 574 fc |
| 7500K | 39560 lux / 3675 fc | 12380 lux / 1150 fc | 6050 lux / 562 fc |
| R | 7020 lux / 652 fc | 2317 lux / 215 fc | 1121 lux / 104 fc |
| G | 16580 lux / 1540 fc | 5280 lux / 491 fc | 2562 lux / 238 fc |
| B | 1860 lux / 173 fc | 580 lux / 54 fc | 260 lux / 24 fc |
With 45° Reflector
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 11570 lux / 1075 fc | 4008 lux / 372 fc | 2080 lux / 193 fc |
| 3200K | 12810 lux / 1190 fc | 4404 lux / 409 fc | 2266 lux / 211 fc |
| 4300K | 13500 lux / 1254 fc | 4656 lux / 433 fc | 2379 lux / 221 fc |
| 5600K | 12940 lux / 1202 fc | 4501 lux / 418 fc | 2305 lux / 214 fc |
| 7500K | 12820 lux / 1191 fc | 4421 lux / 411 fc | 2261 lux / 210 fc |
| R | 2266 lux / 211 fc | 842 lux / 78 fc | 402 lux / 37 fc |
| G | 5282 lux / 491 fc | 1854 lux / 172 fc | 958 lux / 89 fc |
| B | 530 lux / 49 fc | 180 lux / 17 fc | 102 lux / 9 fc |
With 60° Reflector
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 7595 lux / 706 fc | 2742 lux / 255 fc | 1513 lux / 141 fc |
| 3200K | 8240 lux / 765 fc | 3038 lux / 282 fc | 1642 lux / 153 fc |
| 4300K | 8565 lux / 796 fc | 3201 lux / 297 fc | 1734 lux / 161 fc |
| 5600K | 8541 lux / 793 fc | 3110 lux / 289 fc | 1693 lux / 157 fc |
| 7500K | 8380 lux / 779 fc | 3055 lux / 284 fc | 1665 lux / 155 fc |
| R | 1362 lux / 127 fc | 528 lux / 49 fc | 309 lux / 29 fc |
| G | 3528 lux / 328 fc | 1277 lux / 119 fc | 717 lux / 67 fc |
| B | 320 lux / 30 fc | 140 lux / 13 fc | 72 lux / 7 fc |

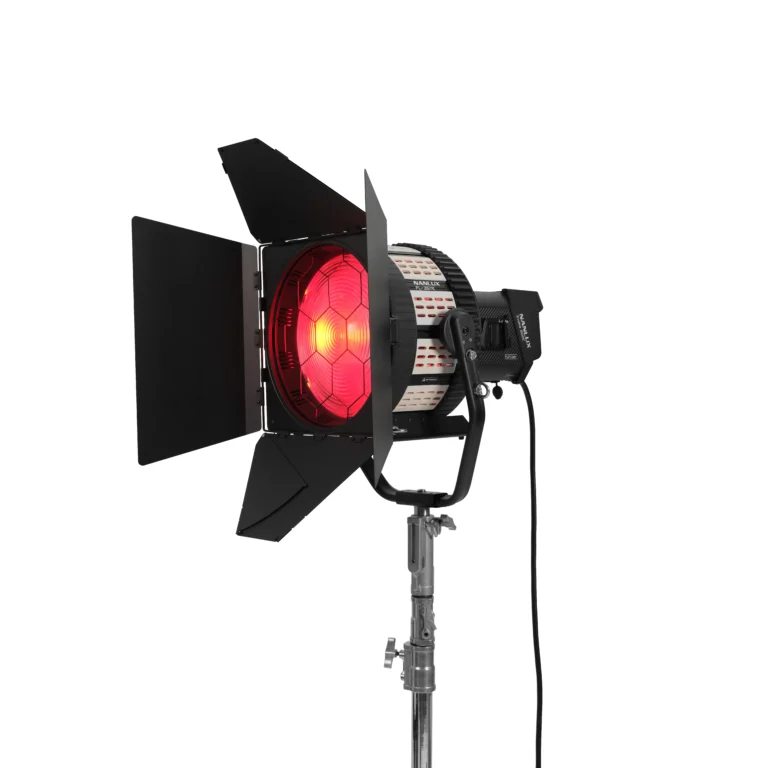

With Fresnel Lens (11°)
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 38520 lux / 3579 fc | 13820 lux / 1284 fc | 7199 lux / 669 fc |
| 3200K | 42540 lux / 3952 fc | 15100 lux / 1403 fc | 7898 lux / 734 fc |
| 4300K | 44650 lux / 4148 fc | 15960 lux / 1483 fc | 8303 lux / 771 fc |
| 5600K | 43270 lux / 4020 fc | 15470 lux / 1437 fc | 8056 lux / 748 fc |
| 7500K | 42720 lux / 3969 fc | 15270 lux / 1419 fc | 7909 lux / 735 fc |
| R | 7920 lux / 736 fc | 2760 lux / 256 fc | 1407 lux / 131 fc |
| G | 17690 lux / 1643 fc | 6223 lux / 578 fc | 3256 lux / 302 fc |
| B | 2040 lux / 190 fc | 710 lux / 66 fc | 360 lux / 33 fc |
With Fresnel Lens (45°)
| Distance | 3m | 5m | 7m |
|---|---|---|---|
| 2700K | 9160 lux / 851 fc | 3456 lux / 321 fc | 1840 lux / 171 fc |
| 3200K | 10160 lux / 944 fc | 3820 lux / 355 fc | 2057 lux / 191 fc |
| 4300K | 10740 lux / 998 fc | 4001 lux / 372 fc | 2168 lux / 201 fc |
| 5600K | 10420 lux / 968 fc | 3923 lux / 364 fc | 2108 lux / 196 fc |
| 7500K | 10300 lux / 957 fc | 3852 lux / 358 fc | 2080 lux / 193 fc |
| R | 1788 lux / 166 fc | 681 lux / 63 fc | 352 lux / 33 fc |
| G | 4561 lux / 424 fc | 1720 lux / 160 fc | 915 lux / 85 fc |
| B | 520 lux / 48 fc | 199 lux / 18 fc | 102 lux / 9 fc |
