LIGHTMAN

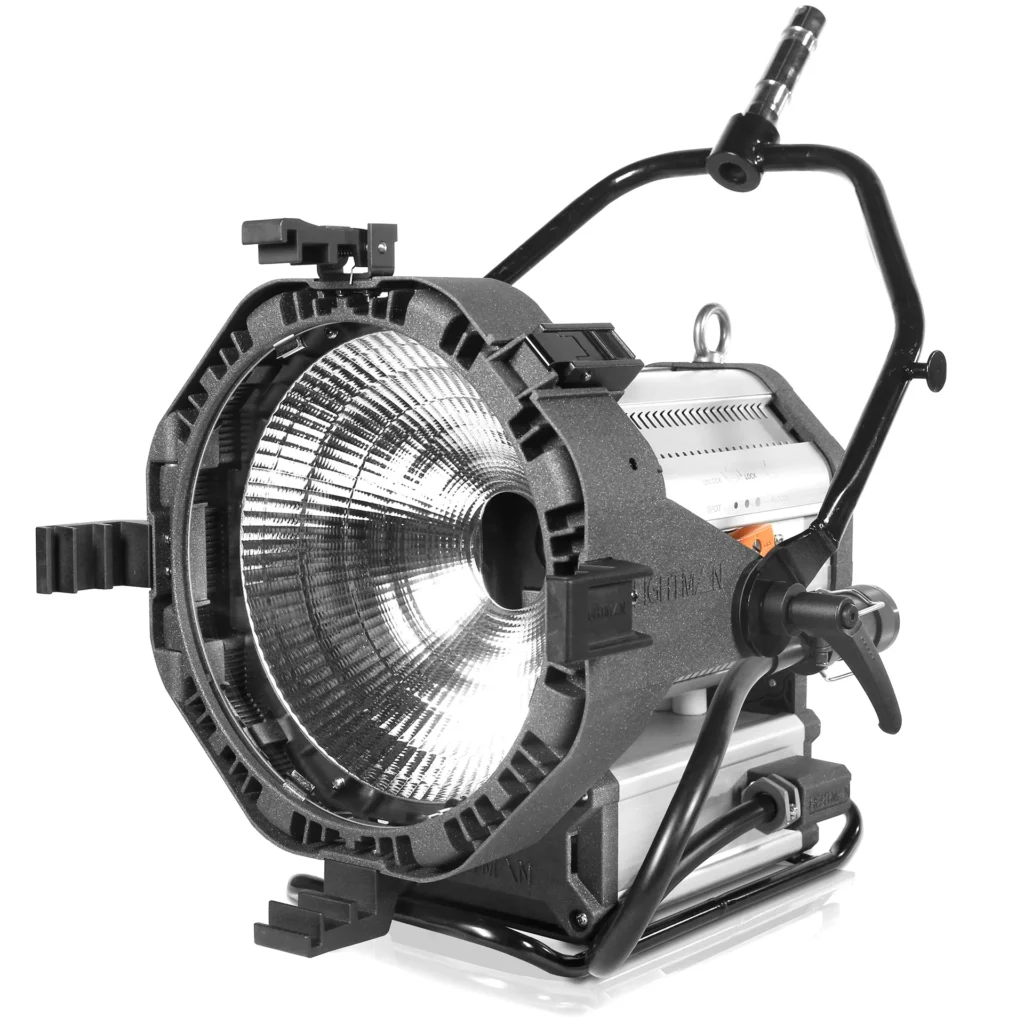

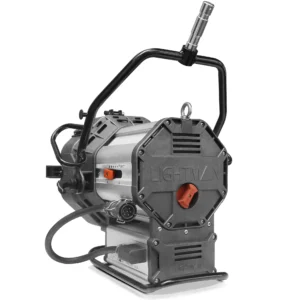

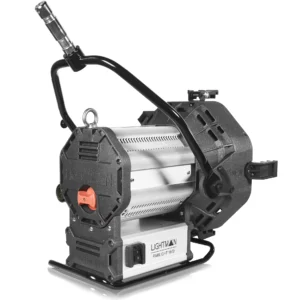

1200/1800 W LIGHTMAN GORGEOUS PARLIGHT

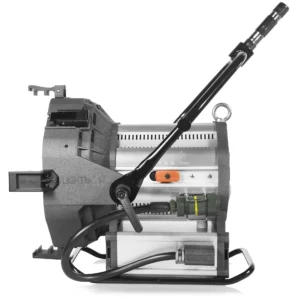

Lamp Head
Lamps: HMI 1200W / 1800W, 100V / 128V, G38
Color Temperature: 5600K
Flicker-Free: Up to 10,000 fps
UV Lens: 285 mm
Head Weight: 16 kg
Dimensions: 705 (H) x 485 (W) x 490 (L) mm
Barndoor: 381 mm
Output Frequency: 1000 Hz, fine tune range 800–1200 Hz
Control: DMX control
Protection Class: IP23
Certificate: CE

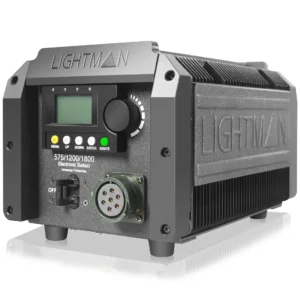

Electronic Ballast
Input Power: 2100 VA (max)
Input Voltage: 90–130V ~ / 180–250V ~
Power Output: 575W / 1200W / 1800W (constant control)
Dimensions: 200 (W) x 185 (H) x 310 (L) mm
Protection Class: IP23
Strike: Cold start and hot strike
Certificate: CE
Weight: 7.6 kg
Illuminance (Lux)
| Beam Angle | Distance (m) | Output (lx) | Beam Diameter (m) |
|---|---|---|---|
| Spot 10° | 5 | 19,100 | 2 |
| 10 | 6,723 | 3.5 | |
| 15 | 3,612 | 5 | |
| Medium 40° | 5 | 6,330 | 4 |
| 10 | 2,820 | 7 | |
| 15 | 1,556 | 10 | |
| Flood 60° | 5 | 3,050 | 7 |
| 10 | 1,232 | 11 | |
| 15 | 680 | 16 |

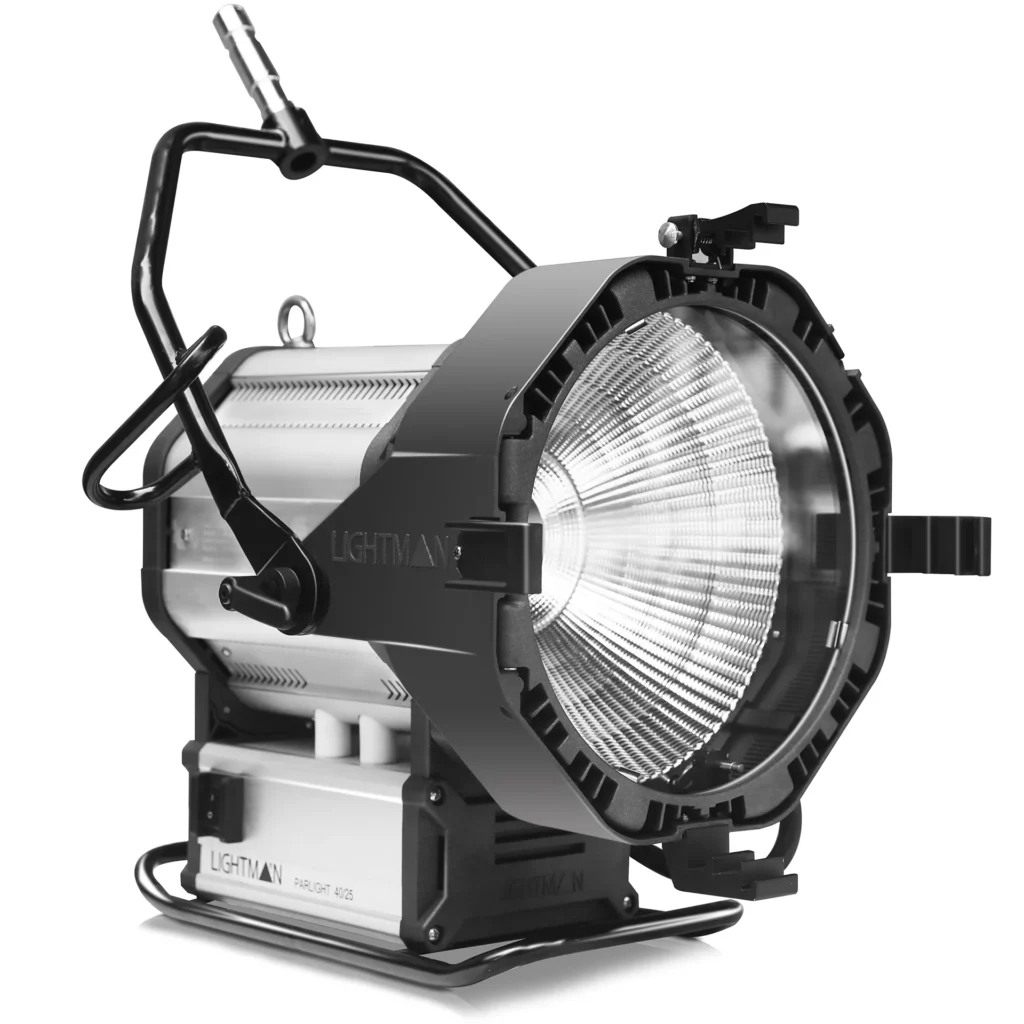

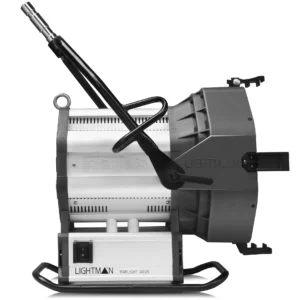

2500 / 4000W LIGHTMAN GORGEOUS PARLIGHT
Lamp Head
Lamps: HMI 2500W / 4000W, 100V / 128V, G38
Color Temperature: 5600K
Flicker-Free: Up to 10,000 fps
UV Lens: 312 mm
Head Weight: 23.5 kg
Dimensions (Head): 800 (H) x 560 (W) x 556 (L) mm
Barndoor: 405 mm
Output Frequency: 1000 Hz (fine tune range 800–1200 Hz)
Control: DMX control
Protection Class: IP23
Certificate: CE

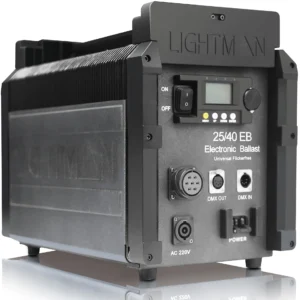

Electronic Ballast
Input Power: 4650 VA (max)
Input Voltage: 180–250V AC
Power Output: 2500W / 4000W (constant control)
Dimensions (Ballast): 260 (W) x 360 (H) x 450 (L) mm
Protection Class: IP23
Strike: Cold start and hot strike
Certificate: CE
Weight: 19.8 kg
Illuminance (Lux)
| Beam Angle | Distance (m) | Output (lx) | Beam Diameter (m) |
|---|---|---|---|
| Spot 10° | 5 | 72,500 | 1.4 |
| 10 | 18,800 | 3.2 | |
| 15 | 8,040 | 4.8 | |
| Medium 40° | 5 | 23,650 | 2.7 |
| 10 | 6,200 | 5.4 | |
| 15 | 2,700 | 8 | |
| Flood 60° | 5 | 8,800 | 4.9 |
| 10 | 2,600 | 9.8 | |
| 15 | 1,312 | 14.6 |

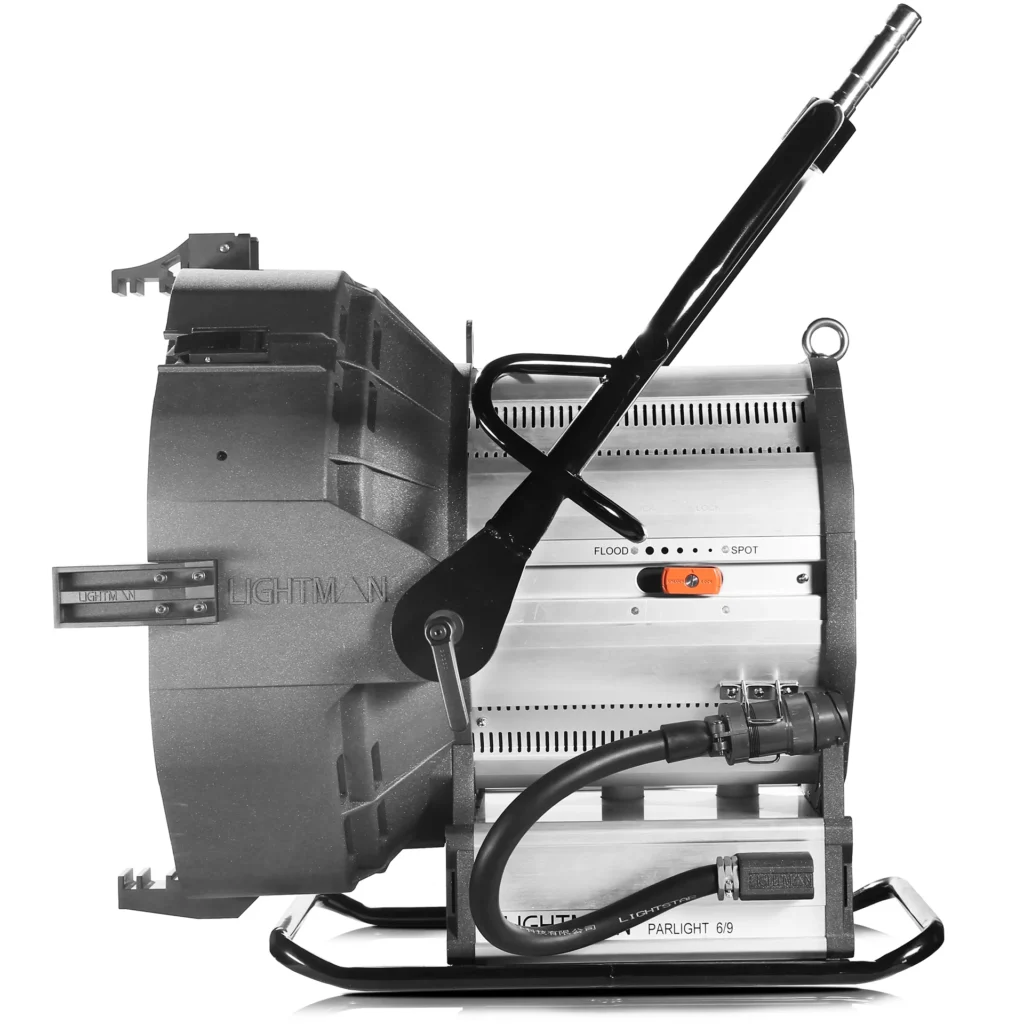

6000 / 9000W LIGHTMAN GORGEOUS PARLIGHT
Lamp Head
Lamps: HMI 6000W / 9000W, 100V / 128V, G38
Color Temperature: 5600K
Flicker-Free: Up to 10,000 fps
UV Lens: 490 mm
Head Weight: 40 kg
Dimensions (Head): 980 (H) x 745 (W) x 720 (L) mm
Barndoor: 535 mm
Output Frequency: 1000 Hz (fine tune range 800–1200 Hz)
Control: DMX control
Protection Class: IP23
Certificate: CE
Electronic Ballast
Input Power: 1120 VA (max)
Input Voltage: 180–250V AC
Power Output: 2500W / 4000W (constant control)
Dimensions (Ballast): 451 (W) x 254 (H) x 408 (L) mm
Protection Class: IP23
Strike: Cold start and hot strike
Certificate: CE
Weight: 19.8 kg
Illuminance (Lux)
| Beam Angle | Distance (m) | Output (lx) | Beam Diameter (m) |
|---|---|---|---|
| Spot 10° | 10 | 50,000 | 2.5 |
| 15 | 30,000 | 5 | |
| 20 | 14,000 | 8 | |
| Medium 40° | 10 | 44,000 | 5 |
| 15 | 24,000 | 8 | |
| 20 | 13,000 | 12 | |
| Flood 60° | 10 | 22,000 | 9 |
| 15 | 12,000 | 15 | |
| 20 | 6,800 | 20 |
