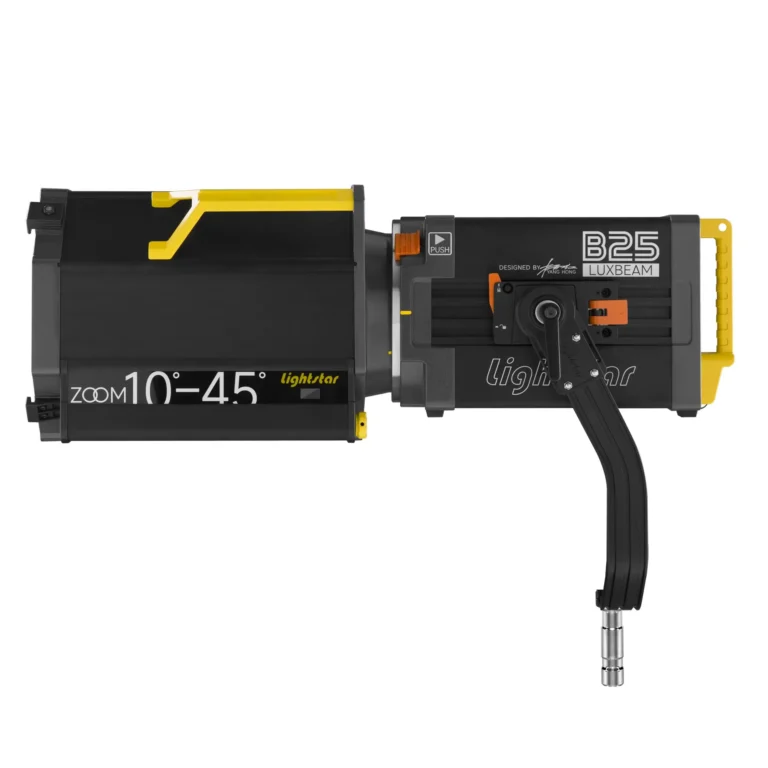

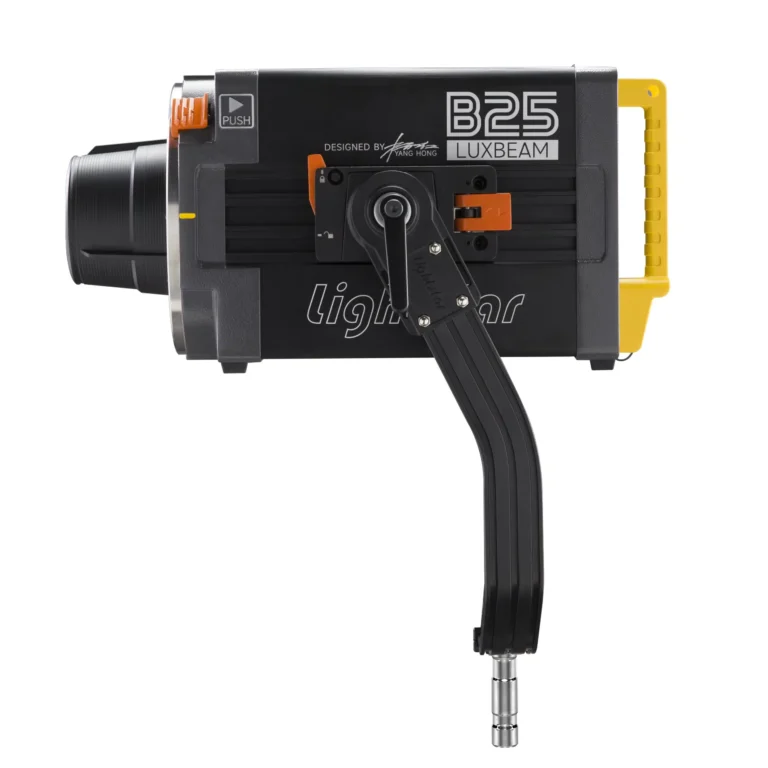

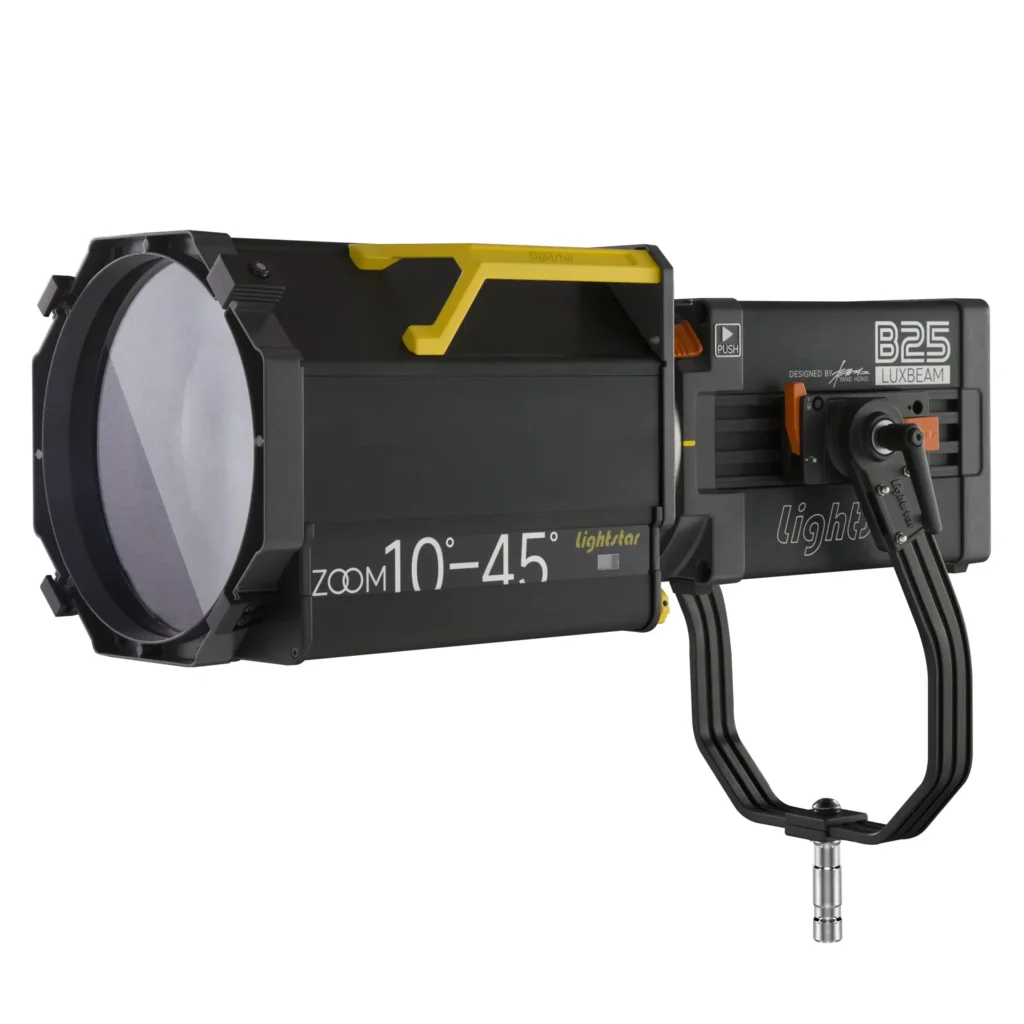

LUXBEAM B25
The LUXBEAM B40 Dual-Color LED Spotlight – Red Dot Award Winner 2024 – sets a new benchmark in professional lighting. Recognized globally for outstanding design, this award-winning spotlight delivers a perfectly uniform light spectrum with precise dual-color temperature control, making it ideal for studios, film sets, and stage environments.
Engineered with advanced heat dissipation, an innovative optical system, and premium LED light sources, the LUXBEAM B40 combines powerful illumination with low energy consumption. For maximum convenience, it features a quick-adjust center of gravity and a detachable bracket for fast, flexible installation.
Crafted from high-quality stainless steel, every detail reflects durability, reliability, and a premium finish. With its award-winning design and professional-grade performance, the LUXBEAM B40 LED Spotlight is the perfect choice for creators who demand both style and precision.
Power & Performance
AC Input: 100 – 240 V
Power Draw: 700 W
Color Temperature (CCT): 2700 K – 6500 K
Dimming: 0 % – 100 %
LED Type: Bi-Color
CRI: > 95
TLCI: > 90
CRI≥ 95
2700-10000K
Beam angle 9º-45°
Adjusting the centre of gravity
Modular lighting frame
IP65 Waterproof Rating
General
Mounting: 28 mm stud
Weight: ~ 9 kg
Dimensions: 385 × 222 × 190 mm
Lamphead (without yoke) dimensions: 322 × 222 × 190 mm Yoke weight: ~ 1.5 kg
Ballast weight: ~ 4.5 kg
IP Rating: IP65 (weatherproof) trol & Connectivity
Connectivity
DMX: Input & Output via 5-pin XLR
Wireless Control: Bluetooth (and/or LumenRadio)
App Control: iOS & Android
Photometric Data
10° Beam
| Distance | 3 m | 5 m | 7 m |
|---|---|---|---|
| Illuminance (3200K) | 129,713 lux | 46,697 lux | 23,825 lux |
| Illuminance (5600K) | 144,127 lux | 51,886 lux | 26,472 lux |
18° Beam
| Distance | 3 m | 5 m | 7 m |
|---|---|---|---|
| Illuminance (3200K) | 52,500 lux | 19,200 lux | 9,795 lux |
| Illuminance (5600K) | 58,200 lux | 21,000 lux | 10,710 lux |
36° Beam
| Distance | 3 m | 5 m | 7 m |
|---|---|---|---|
| Illuminance (3200K) | 14,500 lux | 5,200 lux | 2,653 lux |
| Illuminance (5600K) | 15,000 lux | 5,400 lux | 2,755 lux |
45° Beam
| Distance | 3 m | 5 m | 7 m |
|---|---|---|---|
| Illuminance (3200K) | 8,211 lux | 2,956 lux | 1,508 lux |
| Illuminance (5600K) | 9,125 lux | 3,285 lux | 1,676 lux |
