LUXED P

Full Color Spectrum Lighting

The new LUXED brings full color capability with a redesigned color engine, making it easier than ever to match your lights to any environment. All existing features remain, including Wall and Rank Mode, allowing you to assign different colors to each of the nine individual lights.

Different Color Modes

HUE-SAT | RGB | HSI-XY

High CRI

CRI > 95 | TLCI > 95

Connectivity

Professional film lighting with DMX-512, Bluetooth & LumenRadio wireless control. Flexible, reliable options for any film set.

LUXED-PS

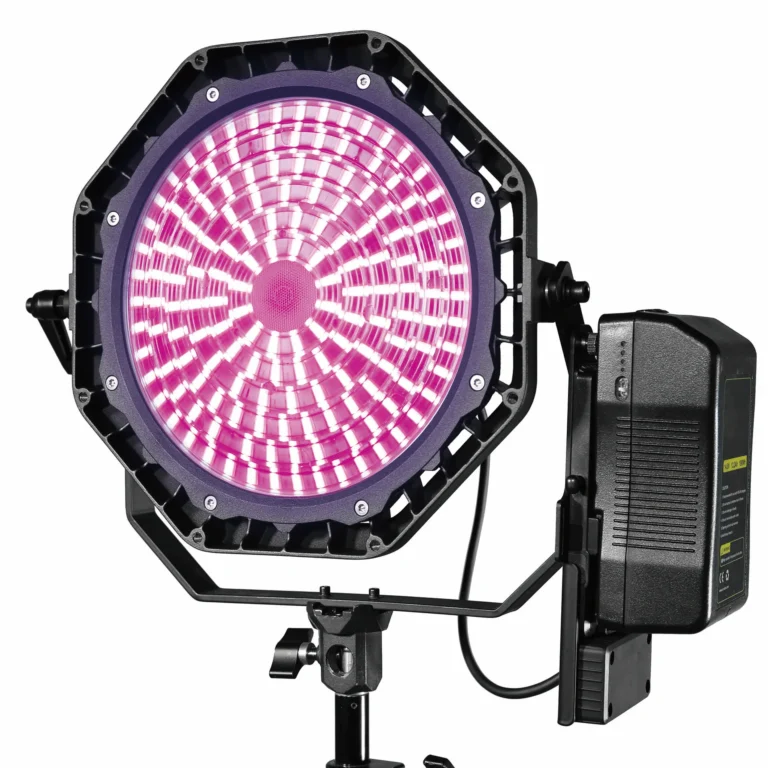

LUXED-PS_02

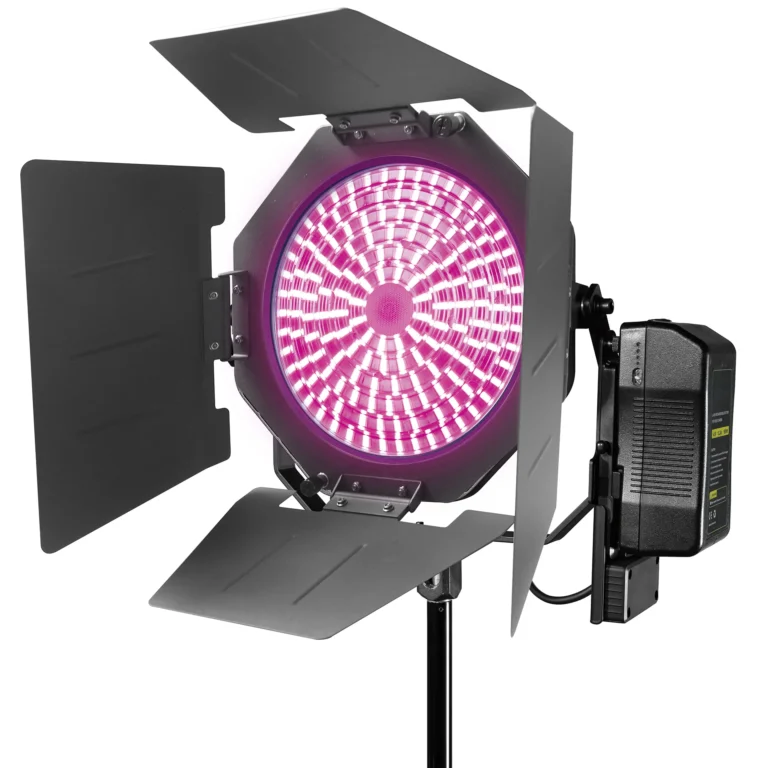

LUXED-PS_04

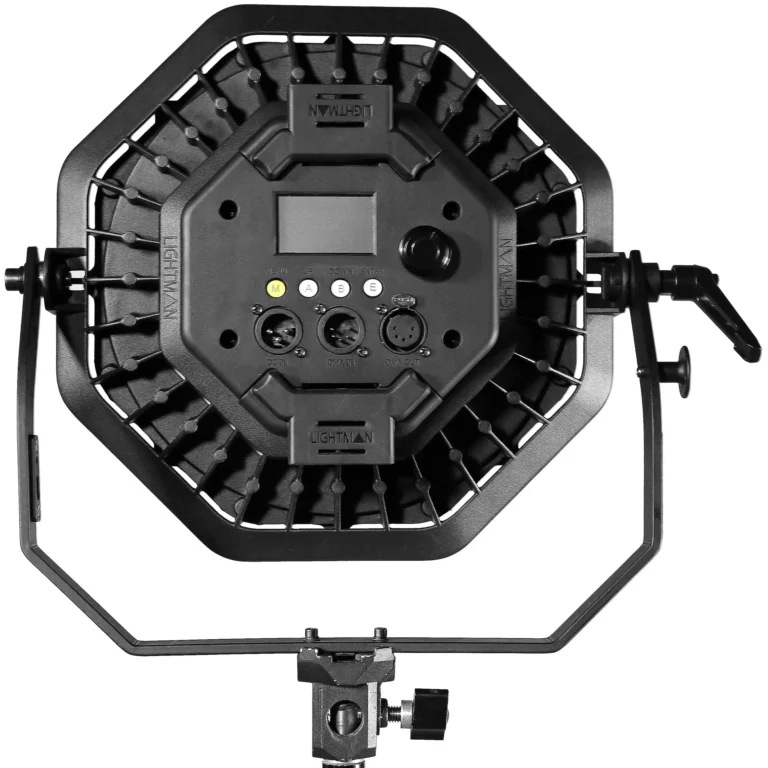

LUXED-S_3
SpecificationDetails
MaterialAluminium Casting
Lamphead Input48V DC
Adaptor InputAC 100–240V / DC 48V
V-Mount Output48V
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth
Net Weight2.4 kg
Dimensions365 × 360 × 98 mm
IP ClassIP20
AccessoriesSoft Box, Grid, Softbag, AIR Diffusion Box

Illuminance (Lux) – 3200K

 3m4m5m
Illuminance1,430825550
Beam Diameter4.6m6.5m8.5m

Illuminance (Lux) – 5600K

 3m4m5m
Illuminance2,0001,160726
Beam Diameter4.6m6.5m8.5m

LUXED-P2-LM

SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
DC Input48V DC
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight8.8 kg
Dimensions763 × 563 × 172 mm
IP ClassIP20
AccessoriesSoft Box, Grid, Softbag, AIR Diffusion Box

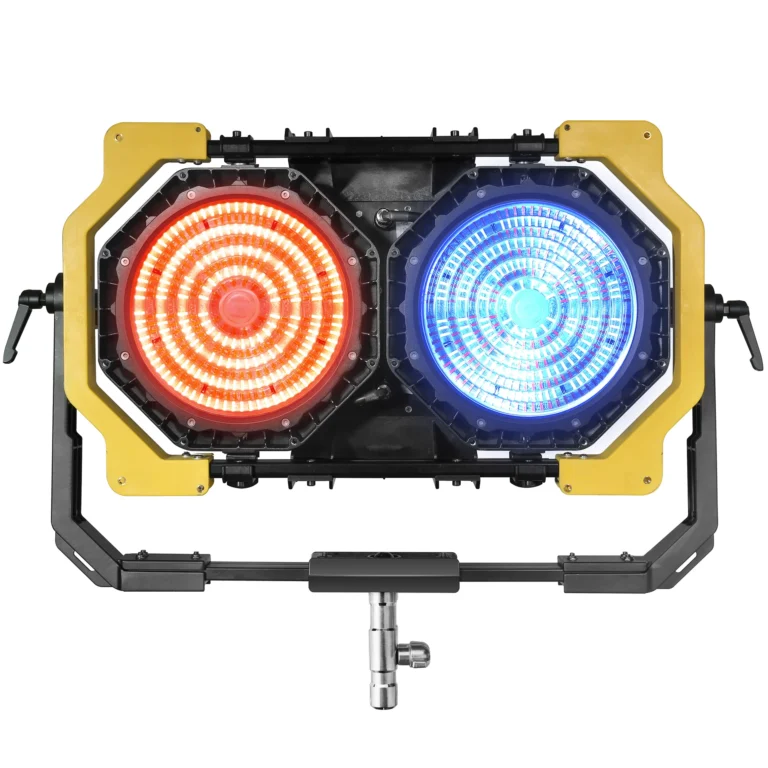

LUXED-P2-LM_01

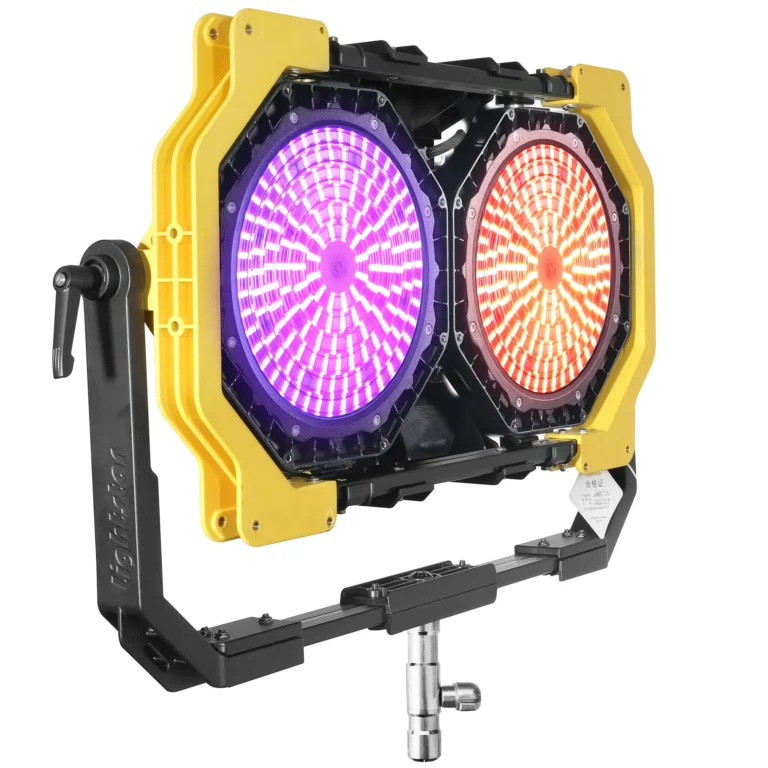

LUXED-P2-LM_05

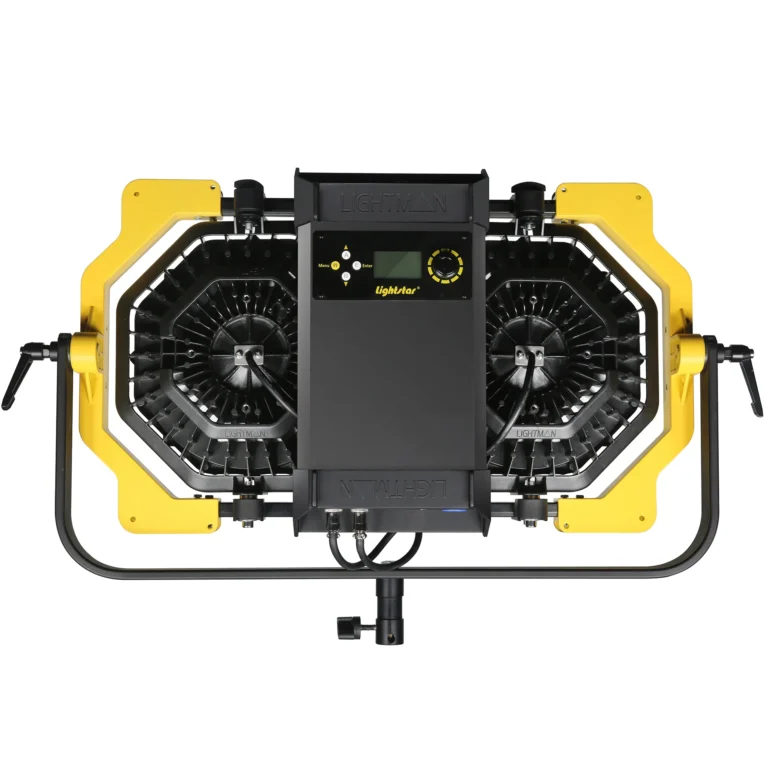

LUXED-2-LM_3

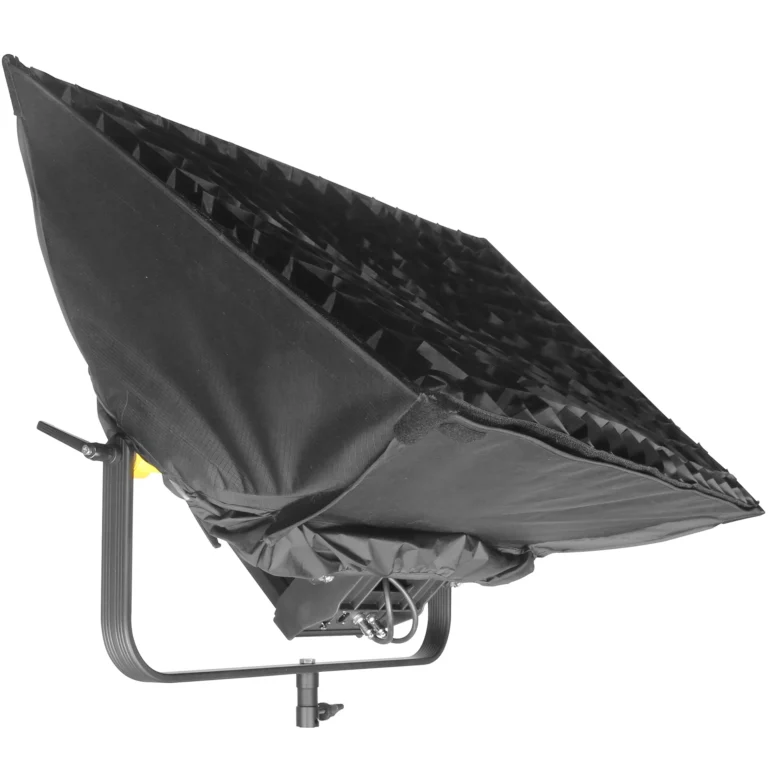

LUXED-2-LM_6

Illuminance (Lux) – Spot (28°)

 3m4m5m
3200K2,9001,8501,200
5600K3,0001,8001,200

Illuminance (Lux) – Flood (60°)

 3m4m5m
3200K900560380
5600K910550380


LUXED-3LM

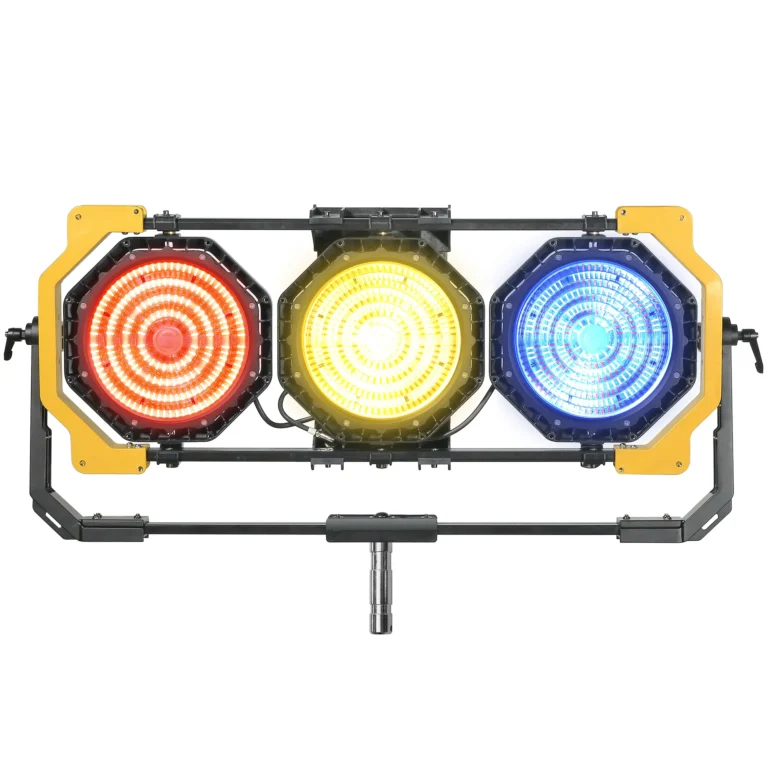

LUXED-P3-LM_01
LUXED-2-LM_3
LUXED-2-LM_6
SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
DC Input48V DC
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight11.8 kg
Dimensions1048 × 563 × 172 mm
IP ClassIP20
AccessoriesSoft Box, Grid, Softbag, AIR Diffusion Box

Illuminance (Lux) – Spot (28°)

 3m5m7m
3200K4,4001,800950
5600K4,4001,600850

Illuminance (Lux) – Flood (60°)

 3m5m7m
3200K1,350550300
5600K1,200550280

LUXED-P4LM

SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
DC Input48V DC
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight24 kg
Dimensions945 × 910 × 216 mm
IP ClassIP20
AccessoriesSoft Box, Grid, AIR Diffusion Box, Black/White Skirt

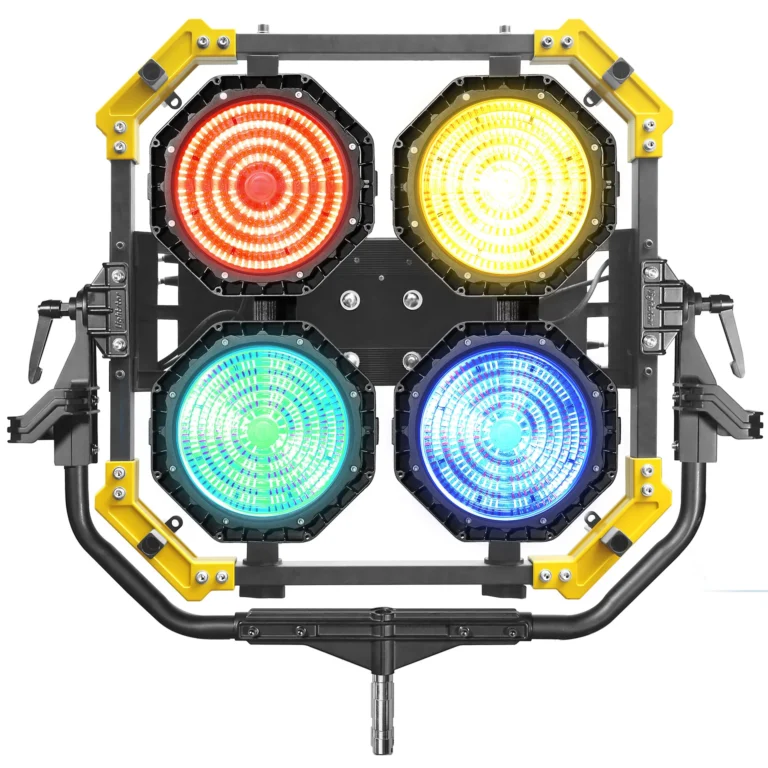

LUXED-P4-LM_01

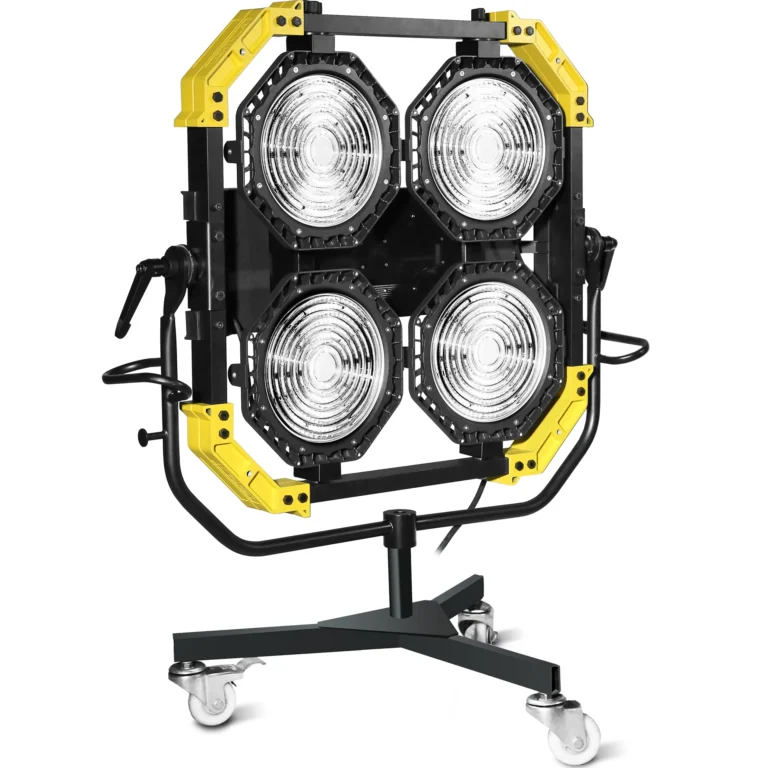

LUXED-4-LM_2

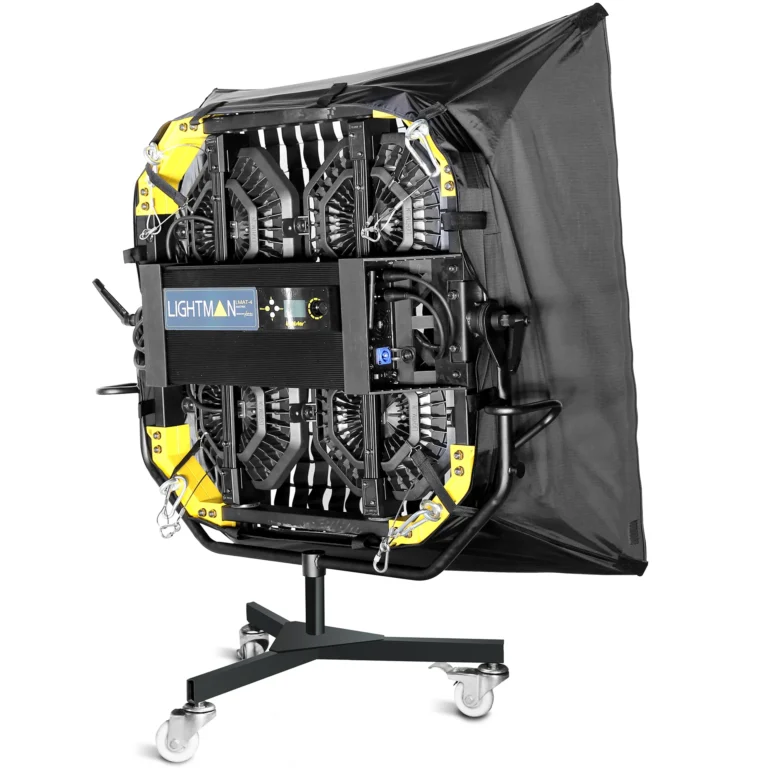

LUXED-4-LM_3

Illuminance (Lux) – Spot (28°)

 3m5m7m
3200K5,2002,2001,200
5600K6,8002,8001,500

Illuminance (Lux) – Flood (60°)

 3m5m7m
3200K1,600680380
5600K2,060880480


LUXED-P6LM

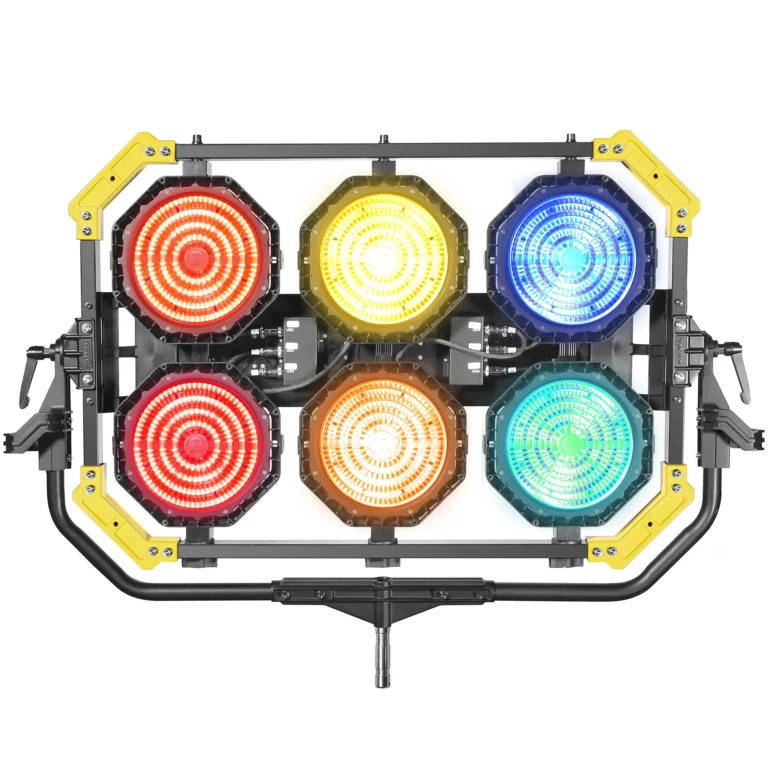

LUXED-P6-LM_01

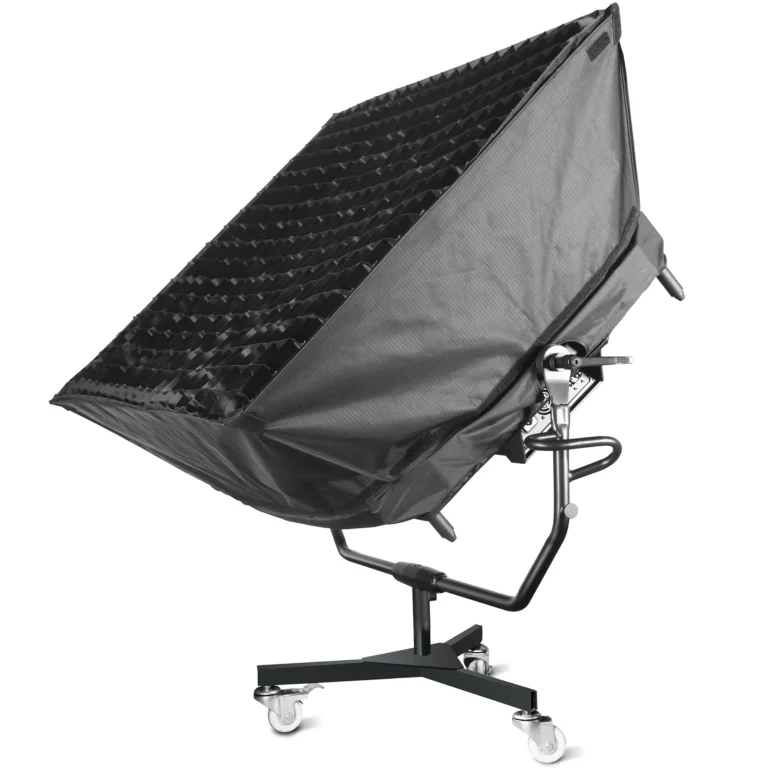

LUXED-6-LM_5

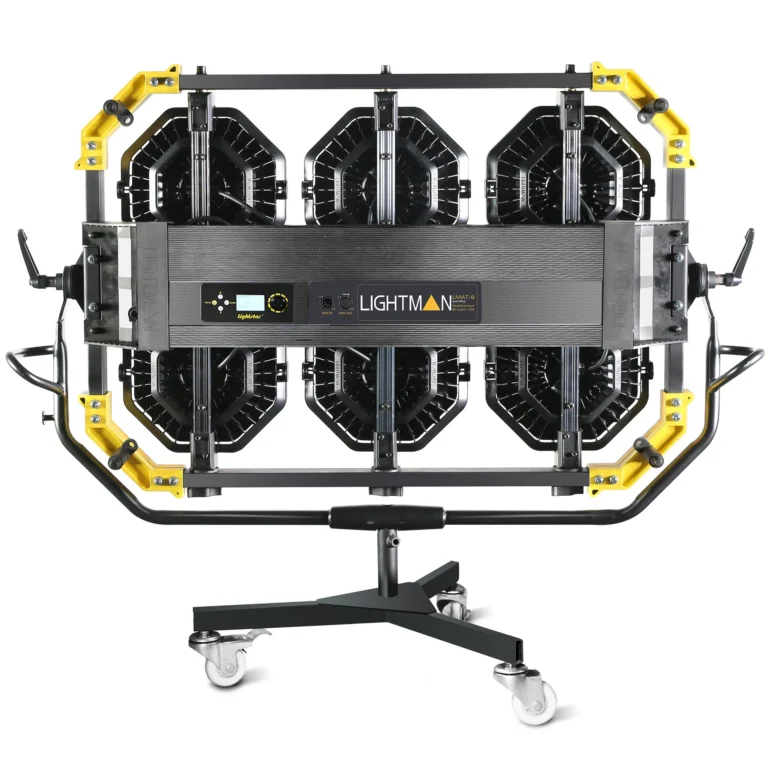

LUXED-6-LM_3
SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight24 kg
Dimensions1256 × 910 × 216 mm
IP ClassIP20
AccessoriesSoft Box, Grid, AIR Diffusion Box

Illuminance (Lux) – Spot (28°)

 3m5m7m
3200K8,2003,4001,900
5600K8,2003,4001,900

Illuminance (Lux) – Flood (60°)

 3m5m7m
3200K2,5001,100630
5600K2,5001,100630


LUXED-P9LM

SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight37.5 kg
Ballast Weight4.4 kg
Dimensions1256 × 1218 × 216 mm
IP ClassIP20
AccessoriesSoft Box, Grid, AIR Diffusion Box

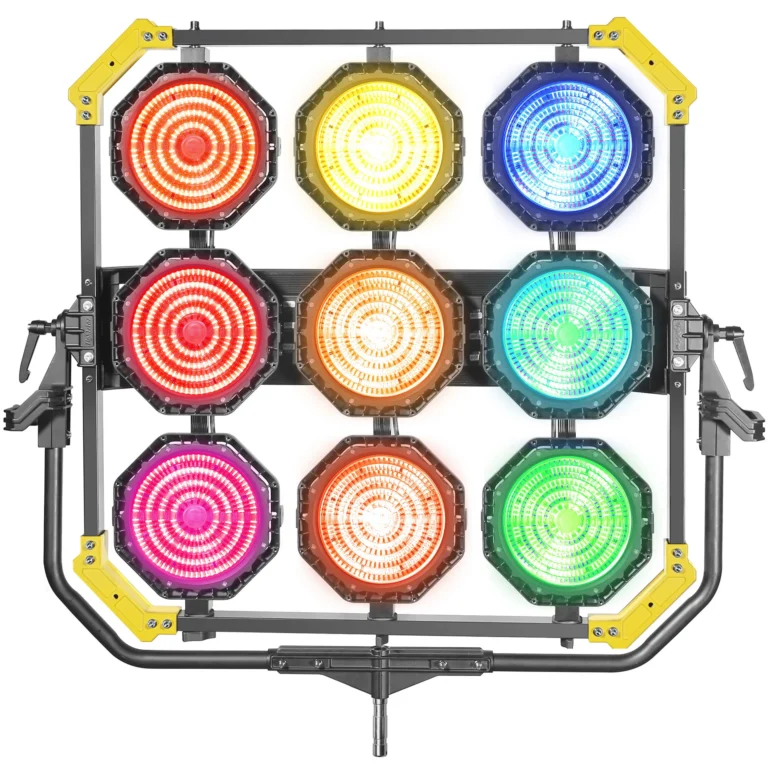

LUXED-P9-LM_01

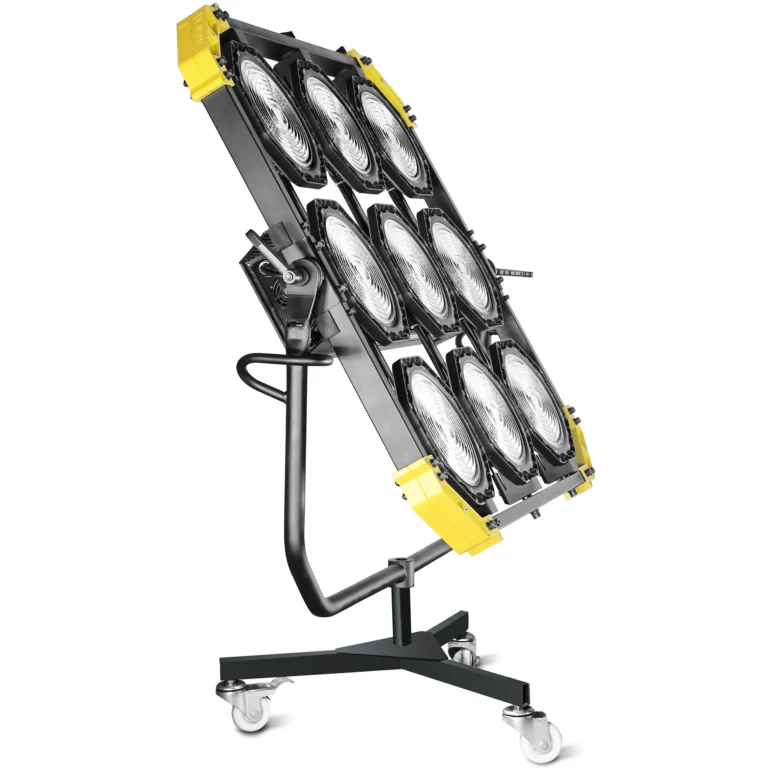

LUXED-9-LM_3

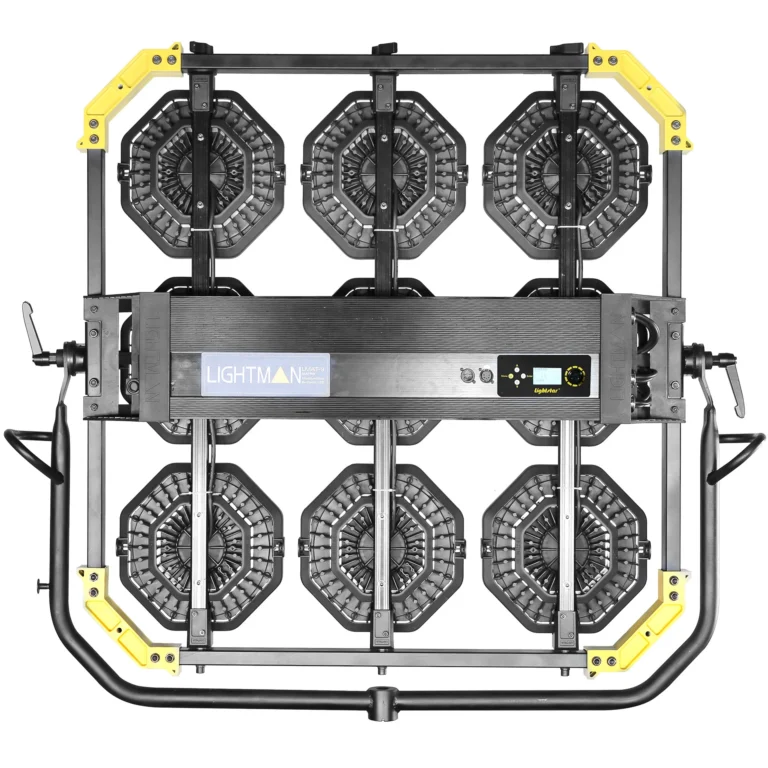

LUXED-9-LM_2

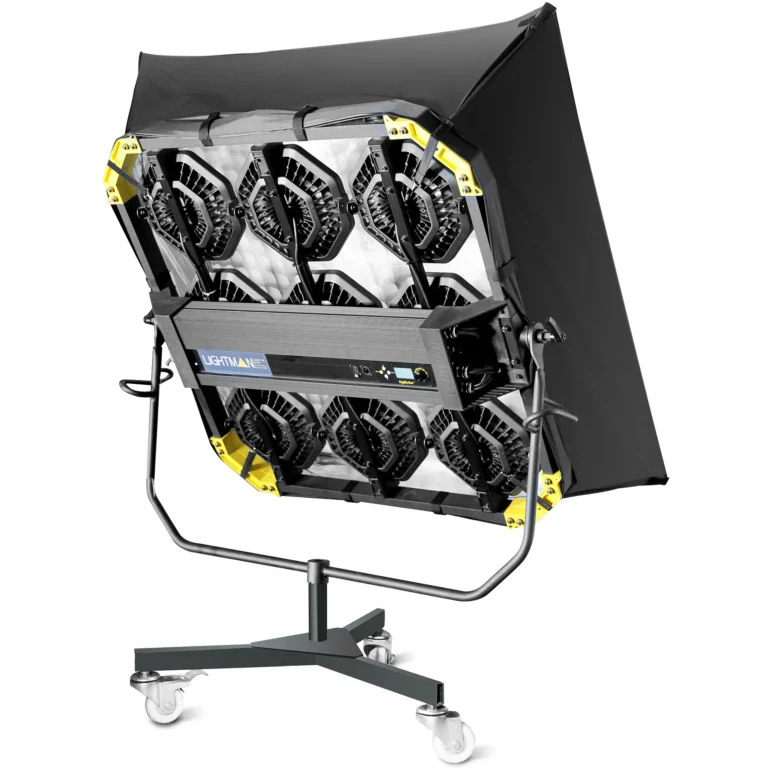

LUXED-9-LM_4

Illuminance (Lux) – Spot (28°)

 3m5m7m
3200K11,5004,3502,300
5600K12,5004,7002,500

Illuminance (Lux) – Flood (60°)

 3m5m7m
3200K3,3501,350760
5600K4,0001,600860


LUXED-P12LM

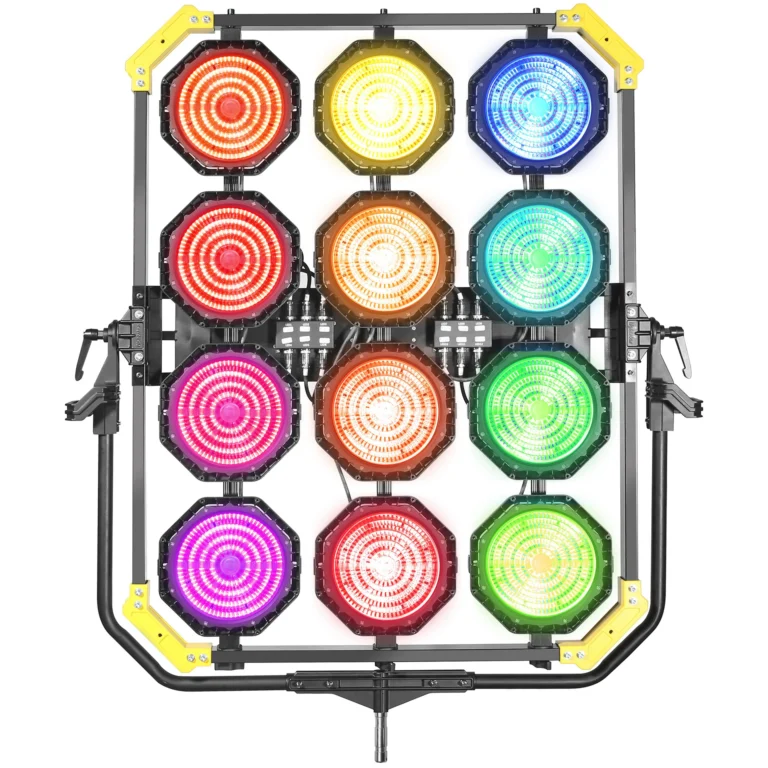

LUXED-P12-LM_01

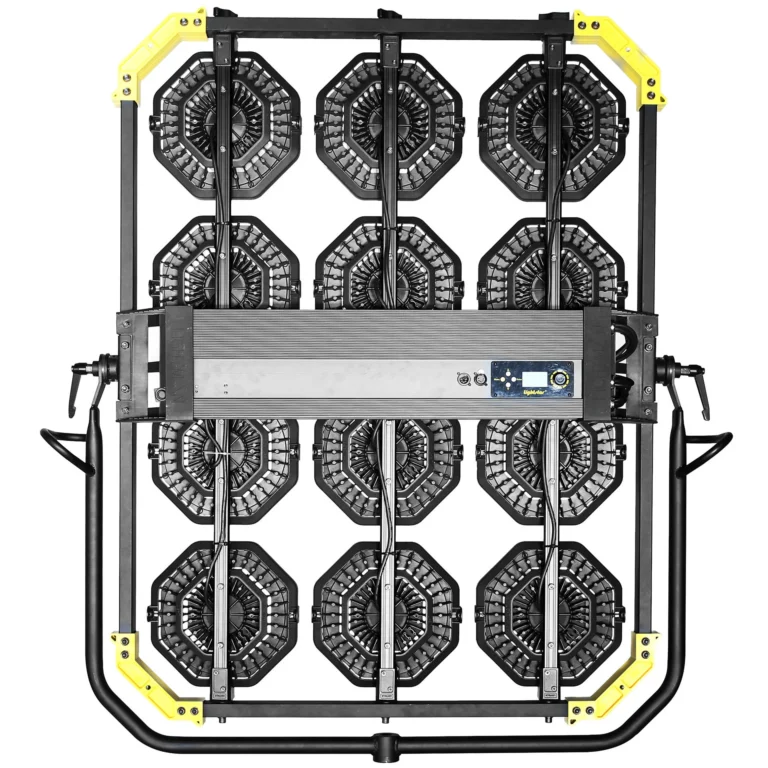

LUXED-12-LM_2

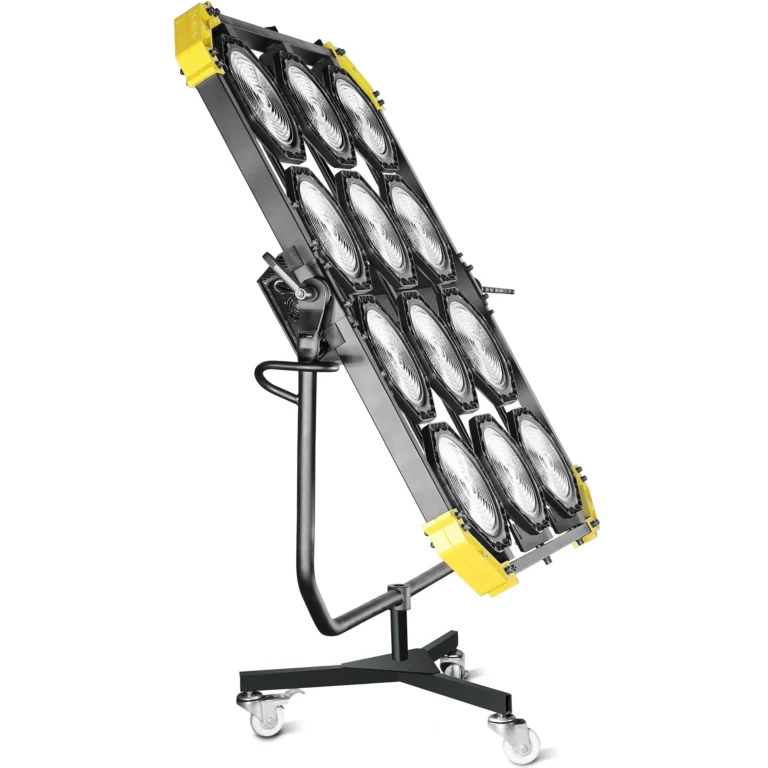

LUXED-12-LM_3

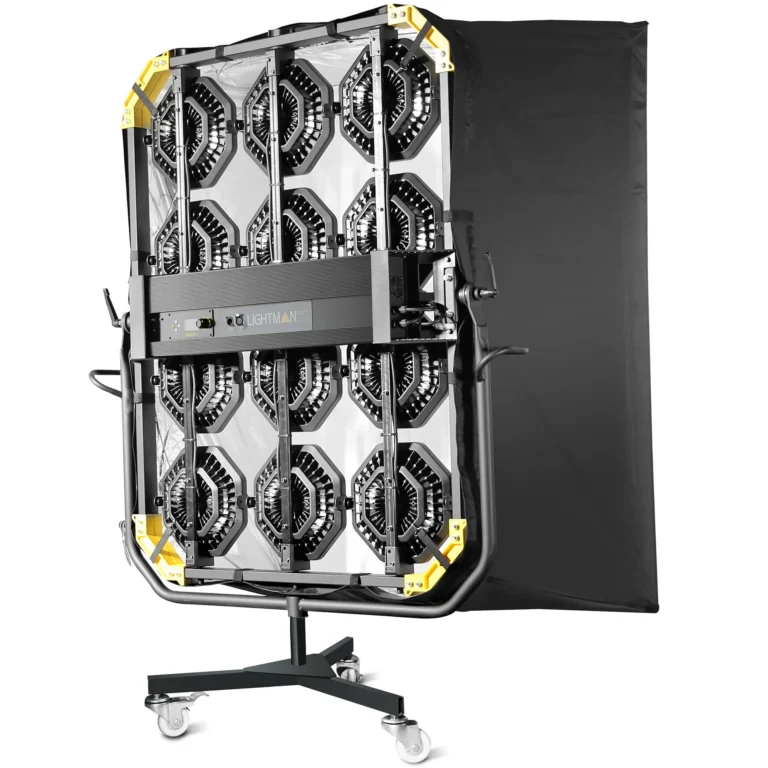

LUXED-12-LM_4
SpecificationDetails
MaterialAluminium Casting
Rated Input100–240V, 50/60Hz
White Light2400–10000K Continuously Variable Correlated Color Temperature
Colored LightRGBWW+ Color Gamut with Hue and Saturation Control
Green–Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Color RenditionCRI ≥95, TLCI >90, R9 >90 (at 3200K / 5600K)
ControlCable DMX / Bluetooth / CRMX / LumenRadio
Net Weight48 kg
Ballast Weight5.2 kg
Dimensions1256 × 1526 × 216 mm
IP ClassIP20
AccessoriesSoft Box, Grid, AIR Diffusion Box

Illuminance (Lux) – Spot (28°)

 3m5m7m
3200K16,0006,0003,300
5600K15,0005,8003,100

Illuminance (Lux) – Flood (60°)

 3m5m7m
3200K5,0002,1001,250
5600K4,9002,0001,150
