MAGIC BOX

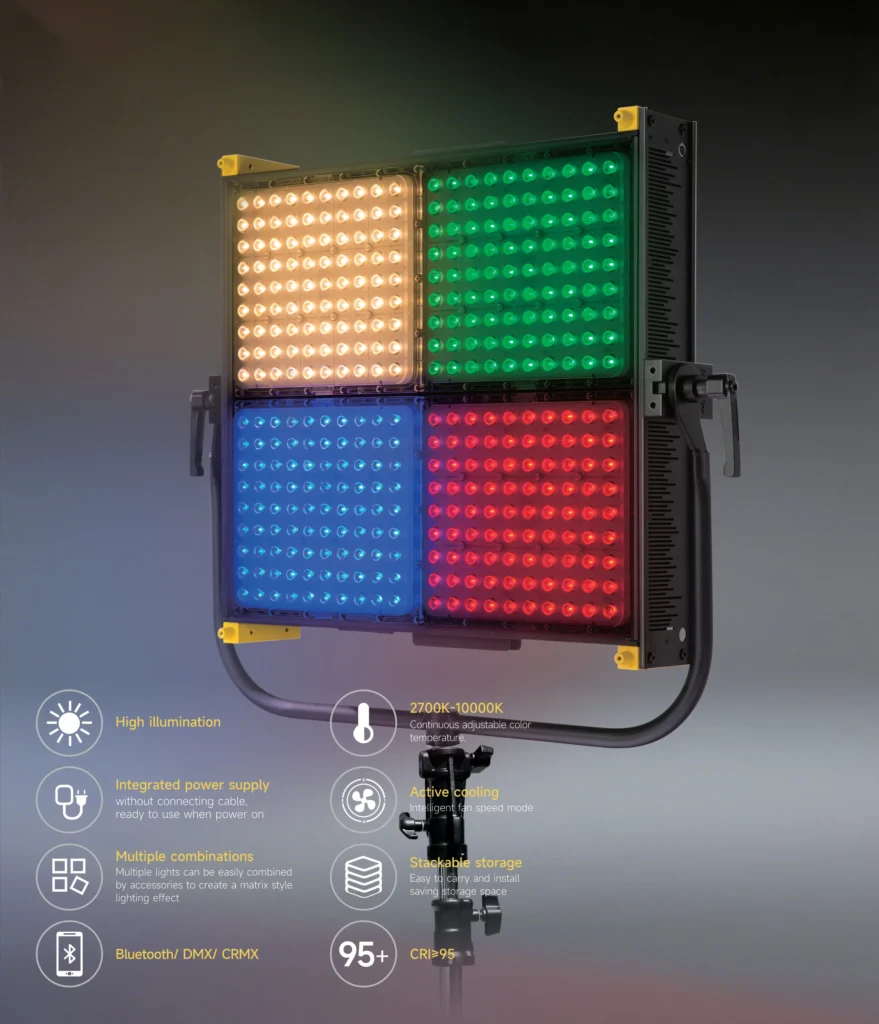

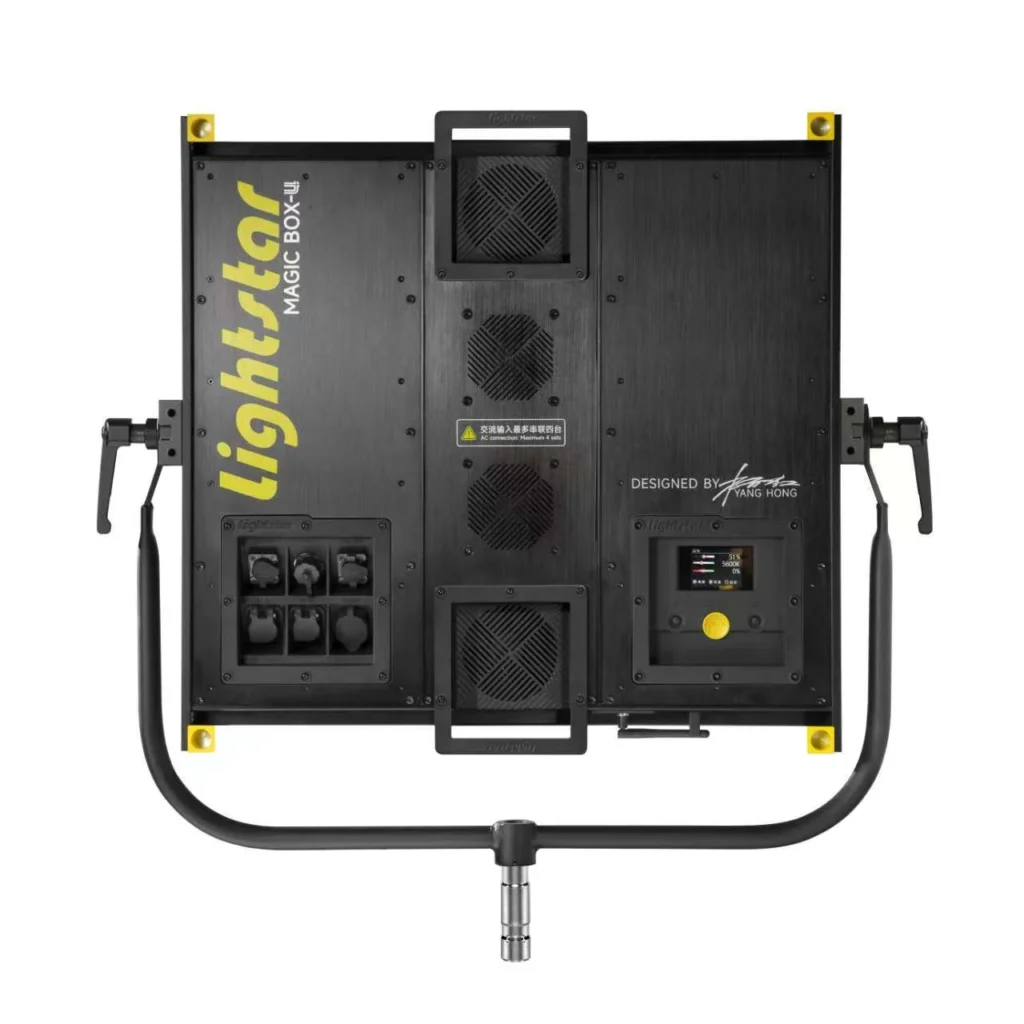

MAGIC BOX-4S

Power: 1200W

Input: 100-240VAC 50/60Hz

IP Class: IP65

Color Temperature: 2700K-10000K

Color Rendition: CRI  ≥ 95

Control: DMX/ CRMX/ BLUETOOTH

Dimensions & Weight

Dimensions (Without Yoke): 681 x 620 x 119 (mm)

Lamphead Weight: 23kg

Yoke Dimensions: 780 x 528 x 55 (mm)

Yoke Weight: 3kg

Photometric Magic Box-4S

Distance3200K (Lux)5600K (Lux)Beam Diameter
3m33200347223.06m
5m12000125004.95m
7m612263786.73m
9m370338588.51m

MAGIC BOX-4

Power: 900W

Input: 100-240VAC 50/60Hz

IP Class: IP65

Color Temperature: 2700K-10000K

Color Rendition: CRI 95

Control: DMX/ CRMX/ BLUETOOTH

Dimensions & Weight

Dimensions (Without Yoke): 681 x 620 x 119 (mm)

Lamphead Weight: 19.6kg

Yoke Dimensions: 780 x 528 x 55 (mm)

Yoke Weight: 2.3kg

Photometric Magic Box-4

Distance3200K (Lux)5600K (Lux)Beam Diameter
3m25532279113.06m
5m9192100484.95m
7m469051266.73m
9m283331008.51m

MAGIC BOX-2S

Power: 600W

Input: 100-240VAC 50/60Hz

IP Class: IP65

Color Temperature: 2700K-10000K

Color Rendition: CRI 95

Control: DMX/ CRMX/ BLUETOOTH

Dimensions & Weight

Dimensions (Without Yoke): 681 x 341 x 119 (mm)

Lamphead Weight: 13kg

Yoke Dimensions: 780 x 610 x 55 (mm)

Yoke Weight: 2.5kg

Photometric Magic Box – 4

Distance3200K (Lux)5600K (Lux)Beam Diameter
3m16600175602.67m
5m600062504.45m
7m306031906.23m
9m185019508.01m
